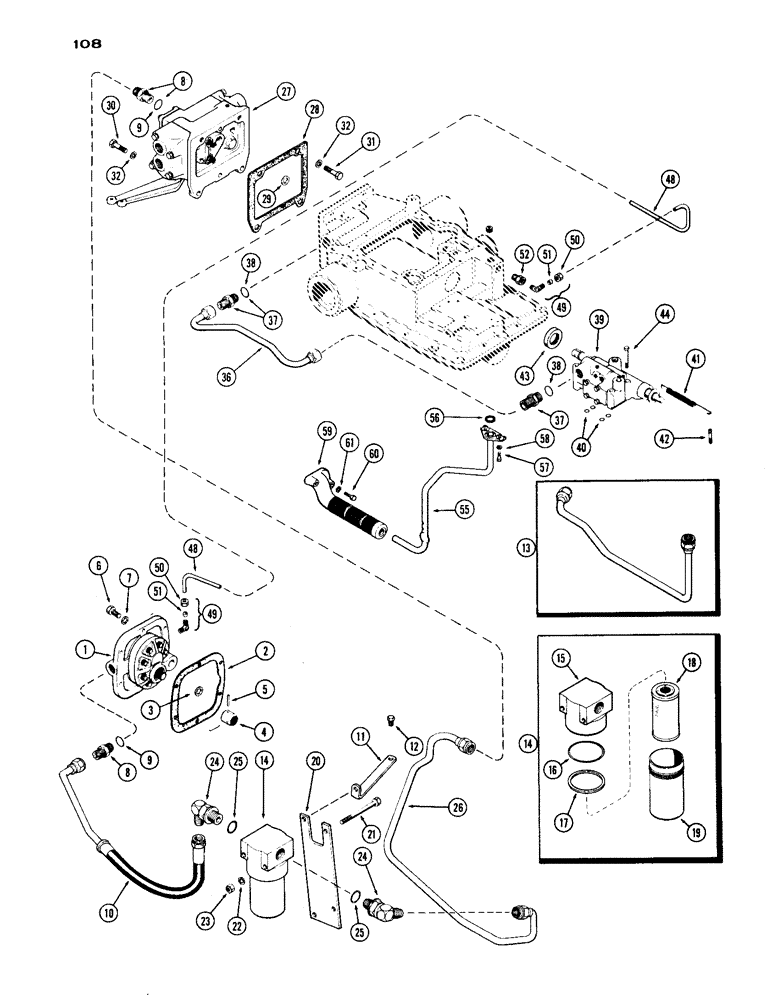

Запчасти Case IH 1030 (108) - DRAFT-O-MATIC PLUMBING, USED WITH HITCH AND P.T.O. (06) - POWER TRAIN

1

A34214

PUMP

PUMP ASSY. - hydraulic (See Fig. 130)

1шт.

1

AR34214

REMAN-HYD PUMP

1030 Case Comfort King 1/66-12/69,

1шт.

1

AC34214

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

A32096

GASKET

GASKET - hydraulic pump

1шт.

3

A28264

GASKET

RING - sealing (1-3/16 x 1-9/16" x 7/32")

1шт.

4

A32097

COUPLING, BREAK AWAY

COUPLING - hydraulic pump

1шт.

5

138-2011

PIN,1/8" x 1 1/4", Coiled

Pin, , coupling 1/8" x 1 1/4", Coiled

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Pump Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - filter lines, Incl. Ref: 9

2шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

10

A57233

TUBE ASSY.

SPARE PART TUBE & HOSE - pump to filter (1st used trac. ser. no. 8313804)

1шт.

11

A57234

SPARE PART BRACE - filter brkt. (1st used trac. ser. no. 8313804)

1шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT - brace (1/2 x 1-3/4" N.C. hex.)

1шт.

13

A34611

X

TUBE - pump to filter (Order 1-A56233 & 1-A57234) (used prior to trac. ser. no. 8313804)

1шт.

14

A34602

SPARE PART FILTER ASSY. - hydraulic oil, Includes Ref: 15 - 19

1шт.

15

A40904

SPARE PART HEAD ASSY. - w/relief valve

1шт.

16

A40900

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - head (3-1/2 x 3-3/4 x 1/8")

1шт.

17

A40901

SEAL

RING - "O" ring back-up (Plastic)

1шт.

18

A40902

FILTER, ENGINE OIL

FILTER, OIL ELEMENT - filter

1шт.

19

A40903

SPARE PART CASE - filter

1шт.

20

A34612

SPARE PART BRACKET - filter mounting

1шт.

21

13-780

BOLT

BOLT - filter (7/16 x 5" N.C. hex.)

2шт.

22

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

2шт.

23

25-107

NUT,7/16"-14, G5

NUT - (7/16" N.C. hex.)

2шт.

24

A34613

ELBOW

ELBOW ASSY. - hyd. lines (at filter), Includes Ref: 25

2шт.

25

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1 x 1-23/32 x 1/8")

1шт.

26

A34610

TUBE

TUBE - filter to aux. valve

1шт.

27

A57571

VALVE

VALVE ASSY. - auxiliary (See Fig. 118 & 120)

1шт.

27

A34699

VALVE

VALVE ASSY. - auxiliary (See Fig. 121A & 121C)

1шт.

28

A32349

GASKET

GASKET - auxiliary valve

1шт.

29

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

SEAL - aux. valve (21/32 x 29/32 x 9/64")

1шт.

30

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

BOLT, , Valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

31

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, , Valve Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

36

A60007

TUBE

TUBE - rockshaft hsg. to draft cont. valve (Replaces A33394)

1шт.

37

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - draft valve tube, Incl. Ref: 38

2шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

39

A32978

VALVE

VALVE ASSY. - draft control (See Fig. 122)

1шт.

40

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve (1/2 x 11/16 x 3/32")

4шт.

41

A32306

SPRING

SPRING - draft control valve

1шт.

42

A32714

SPARE PART ROD - valve spring anchor

1шт.

43

A32307

SEAL

SEAL - valve (1-15/32 x 1-7/8 x 13/64")

1шт.

44

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT, , Valve Hex, 5/16"-18 x 2 1/2", G5

3шт.

44

15-556

X

BOLT - valve (5/16 x 3-1/2" N.C. hex.)

1шт.

48

A57352

TUBE

TUBE - P.T.O. clutch lubrication(used w/oil cooler) (1st used trac. ser. no. 8310335)

1шт.

48

A34140

TUBE

TUBE - P.T.O. clutch (used prior to trac. ser. no. 8310335) (Order A57352)

1шт.

49

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ELBOW ASSY. - P.T.O. lub. line (90deg.), Includes Ref: 50 and 51

2шт.

50

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" O.D. tube)

1шт.

51

222-102

SLEEVE,1/4" Tube

SLEEVE, 1/4" Tube

1шт.

52

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING - reducer (3/8" to 1/4")

1шт.

55

A34481

SPARE PART TUBE - hydraulic oil return

1шт.

56

A32343

SEAL

SEAL - return tube (47/64 x 1-13/64 x 13/64")

1шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Return tube Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

58

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

59

A34483

ELBOW

SPARE PART STRAINER ASSY. - inlet elbow

1шт.

60

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

BOLT - strainer (5/16 x 2" N.C. hex.)

2шт.

61

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.
