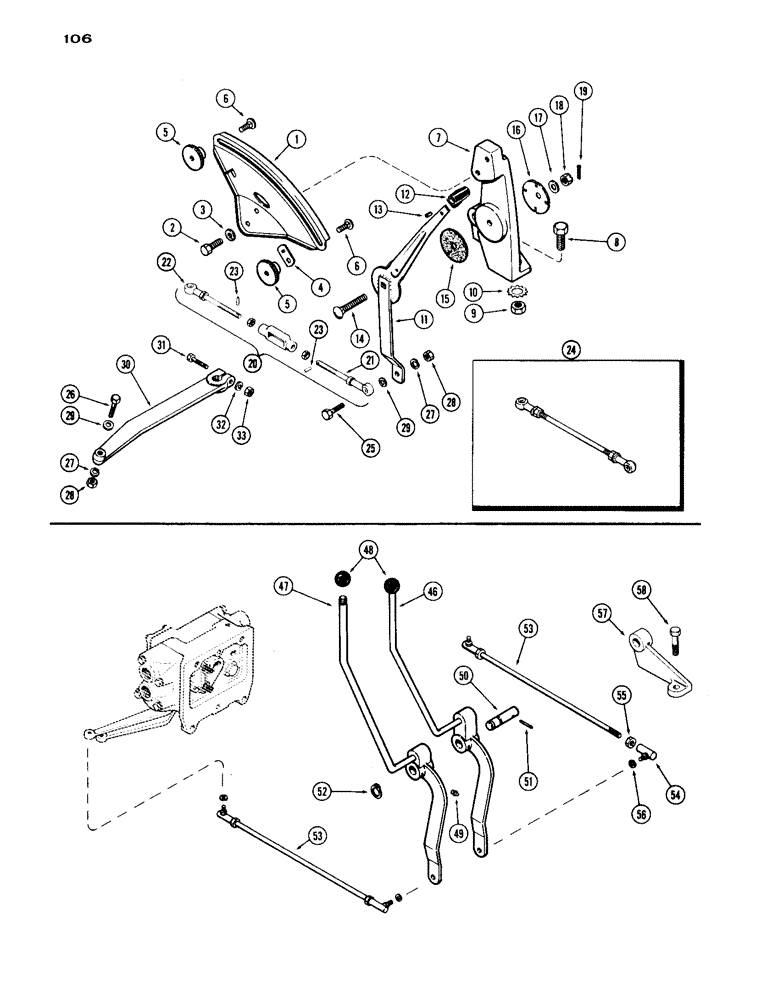

Запчасти Case IH 1030 (106) - DRAFT-O-MATIC CONTROL LINKAGE (06) - POWER TRAIN

1

A35123

QUADRANT

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Quandrant Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

G15950

STOP

- quadrant

1шт.

5

G15951

NUT

- limit, draft control

2шт.

6

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Lock, limit nut Short NK, 3/8"-16 x 1", G2

2шт.

7

A33212

BRACKET - quadrant

1шт.

8

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

9

25-108

NUT,1/2"-13, G5

- (1/2" N.C. Hex.)

2шт.

10

A34650

LOCK WASHER

- (1/2" ext. skpf.)

2шт.

11

A32698

LEVER ASSY. - hand, draft control, Includes Ref: 12 and 13

1шт.

12

A36509

KNOB - hand lever

1шт.

13

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Knob 1/4" x 1/2", Slotted

1шт.

14

A33211

BOLT - pivot, hand lever (1/2 x 2-3/4" N.C. spec.)

1шт.

15

G10786

DISC

- friction, hand lever

1шт.

16

G49412

WASHER

- spring

1шт.

17

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32") 1/2", SAE

1шт.

18

425-128

SLOTTED NUT,1/2"-13, G5

NUT -(1/2" N.C. hex., sltd.)

1шт.

19

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

20

A57219

ROD

ASSY. - D-O-M hand lever (1st used trac. ser. no. 8308965), Includes Ref: 21 - 23

1шт.

21

A57693

END ASSY. - bearing w/right hand thread

1шт.

22

A57692

END ASSY. - bearing w/left hand thread, Includes Ref: 23

1шт.

23

138-54

LOCK PIN,1/8" x 9/16", Slotted

PIN, 1/8" x 9/16", Slotted

1шт.

24

A34095

ROD

ASSY. - D-O-M hand lever (Order A57219) (used prior to trac. ser. no. 8308965)

1шт.

25

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Brg. end to lever Hex, 3/8"-16 x 1 1/2", G5

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Brg. end to arm Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

29

A32395

WASHER

SPACER - rod end brg. (25/64 x 9/16 x 1/16")

2шт.

30

A32704

ARM

- draft control to trans. cover

1шт.

31

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Arm Hex, 5/16"-18 x 2", G5

1шт.

32

92-5

LOCK WASHER,5/16"

WASHER - (3/8" lock)

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.

46

A34744

LEVER - inner, aux. valve control linkage

1шт.

47

A34745

LEVER - outer, aux. valve control linkage

1шт.

48

A23885

KNOB

- hand lever, aux. valve control linkage

2шт.

49

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease (1/4" drive, 67-1/2"), aux. valve control linkage

2шт.

50

A24056

STUD - valve lever pivot, aux. control linkage

1шт.

51

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, , Stud stop, aux. valve control linkage 3/16" x 1 1/2", Slotted

1шт.

52

A20202

RING

- snap, lever ret. ("E" ring), aux. valve control linkage

1шт.

53

A32713

ROD

- control. aux.,valve, linkage

2шт.

54

A27382

BALL

JOINT - valve control rod, aux., linkage

4шт.

55

25-155

JAM NUT,Jam, 5/16"-24, G5

- (5/16" N.F. hex.), aux. valve control linkage

4шт.

56

92-5

LOCK WASHER,5/16"

aux, valve control linkage 5/16"

4шт.

57

A34077

BRACKET - remote lever support (used w/out Draft-O-Matic), aux. valve control linkage

1шт.

58

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket, Aux. valve control linkage Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.
