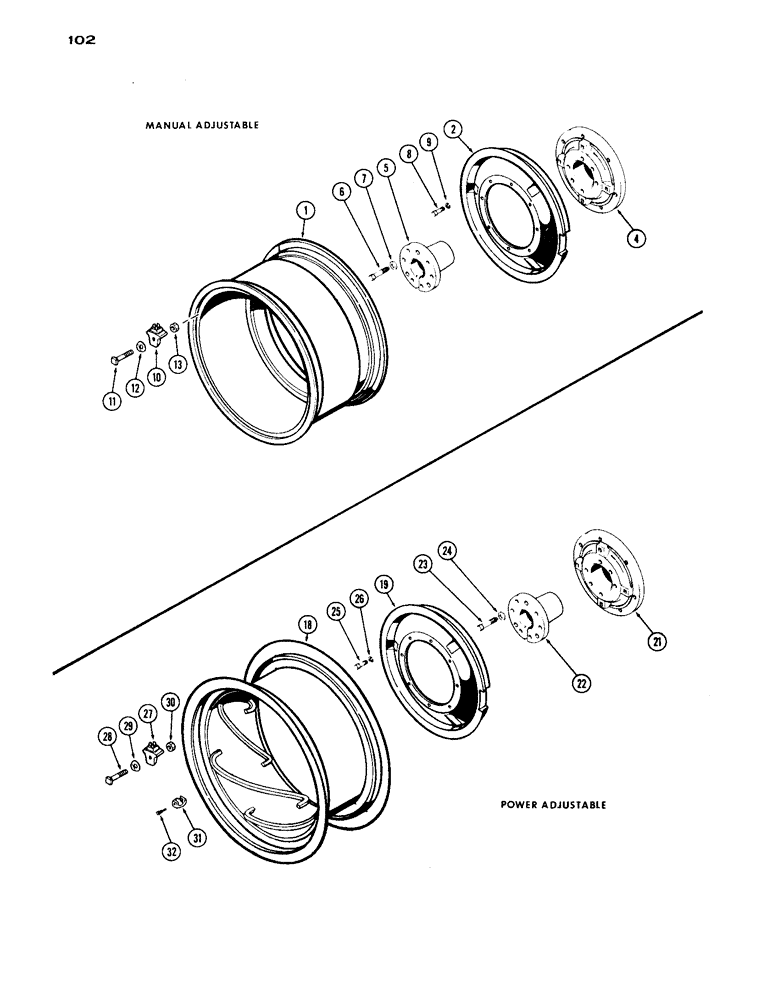

Запчасти Case IH 1030 (102) - REAR WHEELS WITH 38 INCH RIMS, MANUAL ADJUSTABLE, TAPERED BUSHING TYPE HUB (06) - POWER TRAIN

1

A33223

RIM

- (Takes 15.5 x 38" tire)

2шт.

1

A34102

RIM

- (Takes 18.4 x 38" tire)

2шт.

2

A33174

WHEEL

- universal hub, Includes Ref: 4 - 7

2шт.

A59788

HUB ASSY. - universal (Replaces A57991)

2шт.

4

A59789

HUB

- universal, rear, tapered (Replaces A57992)

1шт.

5

A57993

BUSHING

- tapered, rear wheel

1шт.

6

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - housing to hub (3/4" - 10 x 4-1/2" hex.)

6шт.

7

D31328

WASHER

- plain (3/4")

6шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

A57654

CLAMP

- rim to wheel (Takes 117-602 bolt) (1st used trac. ser. no. 8344484)

24шт.

10

A33169

CLAMP

- rim to wheel (Takes 117-603 bolt) (used prior to tractor ser. no. 8344484) (Order A57654 clamp & 117-602 bolt)

24шт.

11

117-602

X

BOLT - rim clamp (3/4 x 3-1/2" N.C., sq. hd.) (used w/A57654 rim clamp)

24шт.

11

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- rim clamp (3/4 x 3" N.C. sq. hd.) (used w/A33169 rim clamp)

24шт.

12

A34161

WASHER

- lock, clamp bolt (round design)(Order A34799)

1шт.

12

A34799

LOCK WASHER

- lock, clamp bolt (square design)

1шт.

13

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.)

24шт.

18

A11076

DISC, WHEEL

RIM - (Takes 15.5 x 38" tire), power adjustable

2шт.

19

A33174

WHEEL

- universal hub, power adjustable

2шт.

A59788

HUB ASSY. - universal (Replaces A57991), power adjustable, Includes Ref: 21 - 24

2шт.

21

A59789

HUB

- universal, rear, tapered (Replaces A57992), power adjustable

1шт.

22

A57993

BUSHING

- tapered, rear wheel, power adjustable

1шт.

23

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub (3/4" - 10 x 4-1/2" hex.), power adjustable

6шт.

24

D31328

WASHER

- plain (3/4"), power adjustable

6шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel to hub, power adjustable Hex, 5/8"-11 x 2 1/2", G5

16шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Power adjustable 5/8"

16шт.

27

A33171

CLAMP

- rim to wheel, power adjustable

12шт.

28

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- rim clamp (3/4 x 3" N.C. sq. hd.), power adjustable

12шт.

29

A34161

WASHER

- lock, clamp bolt (round design)(Order A34799), power adjustable

1шт.

29

A34799

LOCK WASHER

- lock, clamp bolt (square design), power adjustable

1шт.

30

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.), power adjustable

12шт.

31

A9406

STOP

- wheel, power adjustable

4шт.

32

A9440

STOP

SCREW - lock, wheel stop, power adjustable

4шт.
