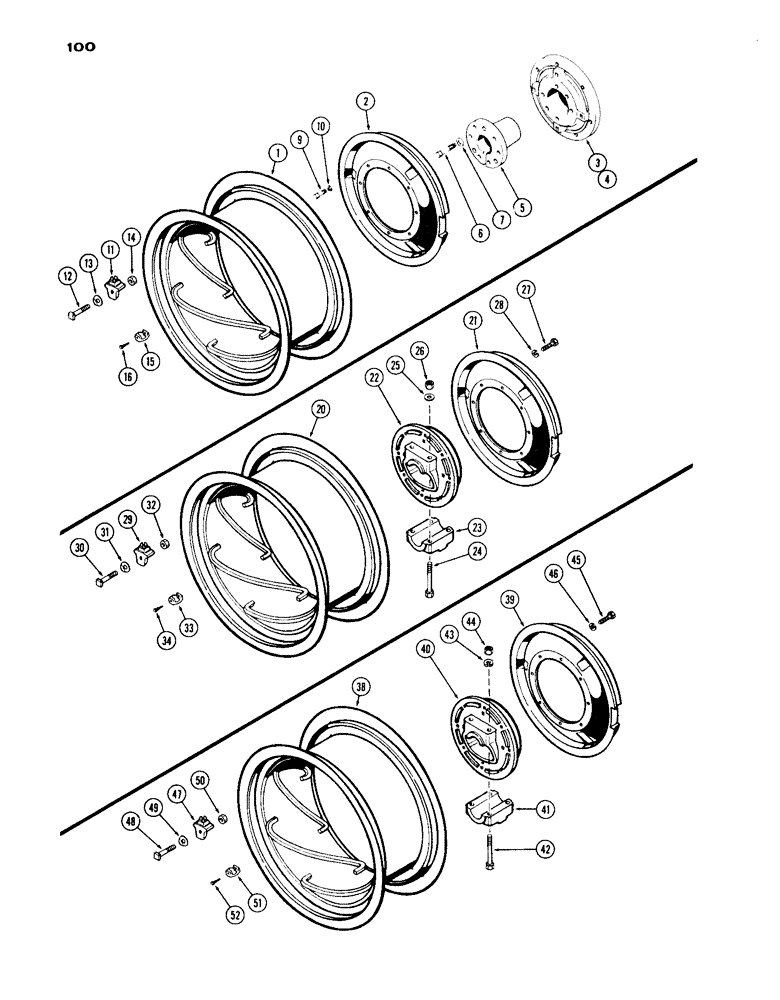

Запчасти Case IH 1030 (100) - REAR WHEELS WITH 34 INCH RIMS, POWER ADJUSTABLE, TAPERED BUSHING TYPE HUB (06) - POWER TRAIN

1

A33170

RIM

(Takes 18.4 x 34" tire)

2шт.

2

A33172

WHEEL

- universal hub

2шт.

3

A59788

HUB ASSY. - universal (Replaces A57991), Includes Ref: 4 - 7

2шт.

4

A59789

HUB

- universal, rear, tapered (Replaces A57992)

1шт.

5

A57993

BUSHING

- tapered, rear wheel

1шт.

6

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - housing to hub (3/4" - 10 x 4-1/2" hex.)

6шт.

7

D31328

WASHER

- plain (3/4")

6шт.

9

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

11

A33171

CLAMP

-, Serial Range: rim-wheel

12шт.

12

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- rim clamp (3/4 x 3" N.C. sq. hd.)

12шт.

13

A34161

WASHER

- lock, clamp bolt (round design)(Order A34799)

1шт.

13

A34799

LOCK WASHER

- lock, clamp bolt (square design)

1шт.

14

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.)

12шт.

15

A9406

STOP

- wheel

4шт.

16

A9440

STOP

SCREW - lock, wheel stop

4шт.

20

A33170

RIM

(Takes 18.4 x 34" tire), clamp type hub

2шт.

21

A33172

WHEEL

- universal hub, clamp type

2шт.

22

A57030

HUB ASSY. - universal (Ductile iron)(Order A59788) (1st used trac. ser. no. 8310335), clamp type hub, Includes Ref: 23 - 26

2шт.

23

A57032

CAP

CLAMP - hub

1шт.

24

14-14112

BOLT,Hex, 7/8" - 14 x 7", Gr 5

- hub clamp (7/8 x 7" N.F. hex.)

4шт.

25

A57033

WASHER

- (15/16 x 1-1/2 x 1/4"), clamp type hub

4шт.

26

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.), clamp type hub

4шт.

27

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel to hub, clamp type Hex, 5/8"-11 x 2 1/2", G5

16шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Clamp type hub 5/8"

16шт.

29

A33171

CLAMP

- rim to wheel, hub

12шт.

30

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- rim clamp (3/4 x 3" N.C. sq. hd.), hub

12шт.

31

A34799

LOCK WASHER

- lock, clamp bolt (square design), hub

1шт.

31

A34161

WASHER

- lock, clamp bolt (round design)(Order A34799), hub

1шт.

32

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.), hub

12шт.

33

A9406

STOP

- wheel, clamp type hub

4шт.

34

A9440

STOP

SCREW - lock, wheel stop, clamp type hub

4шт.

38

A33170

RIM

(Takes 18.4 x 34 tire), clamp type hub

2шт.

39

A33172

WHEEL

- universal hub, clamp type

2шт.

40

A22668

HUB ASSY. - universal (Cast iron)(Order A59788) (used prior to trac. ser. no. 8310335), clamp type, Includes Ref: 41 - 44

2шт.

41

A7127

CAP

CLAMP - hub (Order A57032)

1шт.

42

A22389

WHEEL BOLT

BOLT - hub clamp (7/8 x 7-1/2" N.F. hex.)

4шт.

43

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Clamp type hub 7/8"

4шт.

44

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.), clamp type hub

4шт.

45

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel to hub, clamp type Hex, 5/8"-11 x 2 1/2", G5

16шт.

46

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Clamp type hub 5/8"

16шт.

47

A33171

CLAMP

- rim to wheel, hub

12шт.

48

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- rim clamp (3/4 x 3" N.C. sq. hd.), hub

12шт.

49

A34161

WASHER

- lock, clamp bolt (round design)(Order A34799), hub

1шт.

49

A34799

LOCK WASHER

- lock, clamp bolt (square design), hub

1шт.

50

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.), hub

12шт.

51

A9406

STOP

- wheel, clamp type hub

4шт.

52

A9440

STOP

SCREW - lock, wheel stop, clamp type hub

4шт.
