(098) - REAR WHEELS WITH 34 INCH RIMS, MANUAL ADJUSTABLE, TAPERED BUSHING TYPE HUB

Запчасти Case IH 1030 (098) - REAR WHEELS WITH 34 INCH RIMS, MANUAL ADJUSTABLE, TAPERED BUSHING TYPE HUB (06) - POWER TRAIN

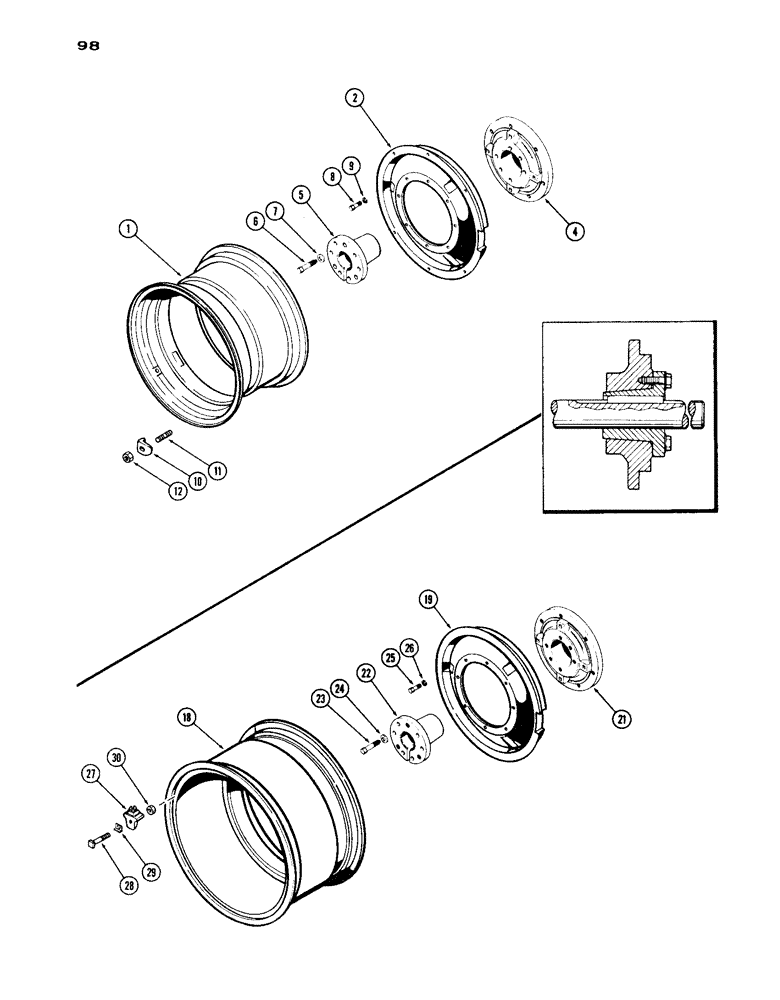

Схема запчастей Case IH 1030 - (098) - REAR WHEELS WITH 34 INCH RIMS, MANUAL ADJUSTABLE, TAPERED BUSHING TYPE HUB (06) - POWER TRAIN
9
19
23
21
1
27
26
25
12
4
2
30
10
8
29
28
5
11
22
6
24
18
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A33460

RIM

(takes 23.1 x 34 tire)

2шт.

2

A57686

WHEEL

- universal hub, Includes Ref: 4 - 7

2шт.

A59788

HUB ASSY. - universal (Replaces A57991) (1st used trac. ser. no. 8346718)

2шт.

4

A59789

HUB

- rear (Replaces A57992)

1шт.

5

A57993

BUSHING

- rear wheel hub

1шт.

6

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub (3/4" - 10 x 4-1/2" hex.)

6шт.

7

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

6шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

F62001

CLAMP

-, Serial Range: rim-wheel

16шт.

11

A27179

STUD

- clamp (5/8" N.C. x 2-3/8")

16шт.

12

A27183

NUT

- clamp stud (5/8" N.C. hex., spec.)

16шт.

18

A33168

RIM

(Takes 18.4 x 34 tire)

2шт.

18

A57045

RIM

- (Takes 23.1 x 34 tire)

2шт.

19

A33172

WHEEL

- universal hub, Includes Ref: 21 - 24

2шт.

A59788

HUB ASSY. - universal (Replaces A57991) (1st used trac. ser. no. 8346718)

2шт.

21

A59789

HUB

- universal, rear (Replaces A57992)

1шт.

22

A57993

BUSHING

- tapered, rear wheel

1шт.

23

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub (3/4" - 10 x 4-1/2" hex.)

6шт.

24

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

6шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

27

A57654

CLAMP

- rim to wheel (Takes 117-602 bolt) (1st used trac. ser. no. 8344484)

24шт.

27

A33169

CLAMP

- rim to wheel (Takes 117-603 bolt) (used prior to trac. ser. no. 8344484) (Order A57654 clamp & 117-602 bolt)

24шт.

28

117-602

X

BOLT - rim clamp (3/4 x 3-1/2" N.C., sq. hd.) (used 2/A57654 rim clamp)

24шт.

28

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- rim clamp (3/4 x 3" N.C. sq. hd.) (used w/A33169 rim clamp)

24шт.

29

A34799

LOCK WASHER

- lock, clamp bolt (square design)

24шт.

30

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.)

24шт.
