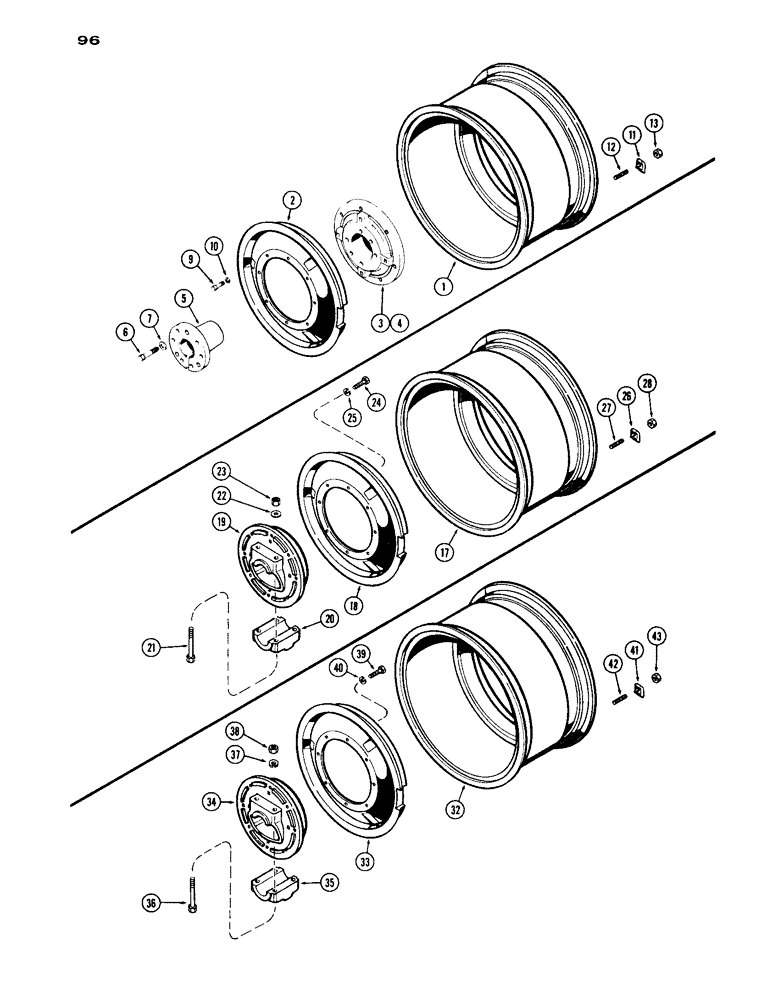

Запчасти Case IH 1030 (096) - REAR WHEELS WITH 30 INCH RIMS, MANUAL ADJUSTABLE, TAPERED BUSHING TYPE HUB (06) - POWER TRAIN

1

A33176

RIM

(Takes 23.1 x 30 tire)

2шт.

2

A33175

WHEEL

- universal hub

2шт.

3

A59788

HUB ASSY. - universal (Replaces A57991), Includes Ref: 4 - 7

2шт.

4

A59789

HUB

- universal, rear tapered (Replaces A57992)

1шт.

5

A57993

BUSHING

- tapered, rear wheel

1шт.

6

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub (3/4" - 10 x 4-1/2" hex.)

6шт.

7

D31328

WASHER

- plain (3/4")

6шт.

9

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Wheel to hub Hex, 5/8"-11 x 2 1/4", G5

16шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

11

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

12

A27179

STUD

- rim clamp (5/8" N.C. x 2-3/8")

12шт.

13

A27183

NUT

- clamp stud (5/8" N.C. hex., spec.)

12шт.

17

A33176

RIM

(takes 23.1 x 30 tire), clamp type hub

1шт.

18

A33175

WHEEL

- universal hub, clamp type

2шт.

19

A57030

HUB ASSY. - universal (Doctile iron)(Order A59788) (1st used trac. ser. no. 8310335), clamp type, Includes Ref: 20 - 23

2шт.

20

A57032

CAP

CLAMP - hub

1шт.

21

14-14112

BOLT,Hex, 7/8" - 14 x 7", Gr 5

- hub clamp (7/8 x 7" N.F. hex.)

4шт.

22

A57033

WASHER

- (15/16 x 1-1/2 x 1/4"), clamp type hub

4шт.

23

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.), clamp type hub

4шт.

24

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Wheel to hub, clamp type Hex, 5/8"-11 x 2 1/4", G5

16шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Clamp type 5/8"

16шт.

26

F62001

CLAMP

- rim to wheel, hub

12шт.

27

A27179

STUD

- rim clamp (5/8" N.C. x 2-3/8"), hub

12шт.

28

A27183

NUT

- clamp stud (5/8" N.C. hex., spec.), hub

12шт.

32

A33176

RIM

(Takes 23.1 x 30 tire), clamp type hub

2шт.

33

A33175

WHEEL

- universal hub, clamp type

2шт.

34

A22668

HUB ASSY. - universal (Cast iron)(Order A59788) (used prior to trac. ser. no. 8310335), clamp type, Includes Ref: 35 - 38

2шт.

35

A7127

CAP

CLAMP - hub (Order A57032)

1шт.

36

A22389

WHEEL BOLT

BOLT - hub clamp (7/8 x 7-1/2" N.F. hex.)

4шт.

37

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Clamp type hub 7/8"

4шт.

38

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.), clamp type hub

4шт.

39

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Wheel to hub, clamp type Hex, 5/8"-11 x 2 1/4", G5

16шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Clamp type hub 5/8"

16шт.

41

F62001

CLAMP

- rim to wheel, hub

12шт.

42

A27179

STUD

- rim clamp (5/8" N.C. x 2-3/8"), hub

12шт.

43

A27183

NUT

- clamp (5/8" N.C. hex., spec.), hub

12шт.
