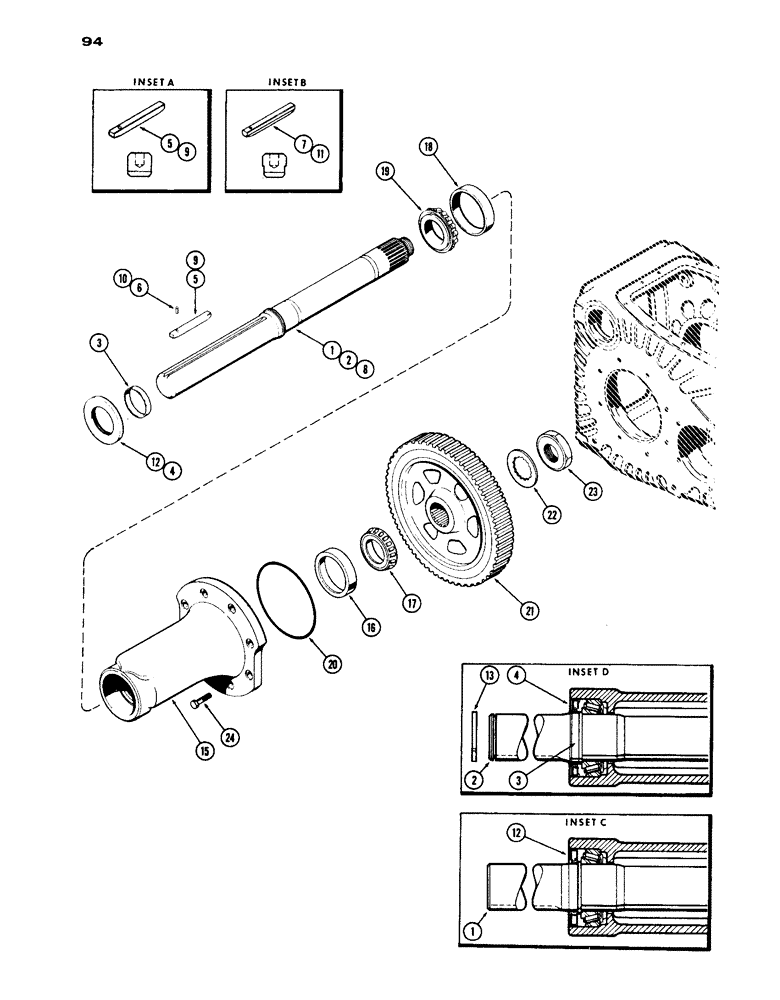

Запчасти Case IH 1030 (094) - REAR AXLE (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

SHAFT ASSY. - rear axle, w/out sleeve (See inset C)(Order A41813 kit)

2шт.

A41813

SET

SHAFT ASSY. - rear axle, w/sleeve (See Inset D) (1st used trac. ser. no. 8329528), Includes Ref: 2 - 6

2шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - rear axle

1шт.

A41814

SEAL

SLEEVE & SEAL KIT - rear axle, Includes Ref: 3 and 4

1шт.

3

A32803

RING

SLEEVE - axle (3-1/2 x 3-5/8 x 5/8" steel)

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil (3-5/8 x 5-1/4 x 15/32")

1шт.

5

A34890

BUCKET TOOTH KEY

KEY - axle(5/8 x 5/8" sq.)(See inset A) (use A57460 or A57461 for repairs)

1шт.

6

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key 1/4" x 1/2", Slotted

1шт.

7

A57461

KEY

- axle, (to fit shaft w/key-way .629" to .632") (identify by 3 drill points)(see inset B)

2шт.

7

A57460

KEY

- axle (to fit shaft w/key-way .618" to .621") (identify by 2 drill points)(See inset B)

2шт.

8

A57034

SHAFT

ASSY. - rear axle (Can use A41813) (used prior to trac. ser. no. 8329528), Includes Ref: 9 and 10

2шт.

9

A57035

KEY

- axle (5/8 x 3/4" sq.)(See inset A) (use A57422 or A57459 for repairs)

1шт.

10

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key 1/4" x 1/2", Slotted

1шт.

11

A57422

KEY - axle - (to fit shaft w/key-way .629" to .632") (identify by 3 drill points)(see inset B)

2шт.

11

A57459

KEY

- axle (to fit shaft w/key-way .618" to .621") (identify by 2 drill points)(see inset B)

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - oil (3-1/2 x 5-1/4 x 15/32") (See inset C)(Order A41814)

2шт.

13

A7123

RING - snap, rear axle (use w/axles w/snap ring groove)

2шт.

15

A60022

HOUSING - axle (1st used trans. ser. no. 2261337)

2шт.

15

A34351

HOUSING - axle (used prior to trans. ser. no. 2261337)

2шт.

16

A50324

BEARING CUP

CUP - bearing, hsg., inner

2шт.

17

A34339

BEARING

CONE - bearing, hsg., inner

2шт.

18

A15434

CUP

- bearing, hsg., outer

2шт.

19

A27024

ROLLER BEARING,3.25" ID x 1.3125"

CONE - bearing, hsg., outer

2шт.

20

A33050

OIL SEAL

- housing to trans. case (9 x 9-1/4 x 1/8")

2шт.

21

A32805

GEAR

- final drive

2шт.

22

A32806

LOCK WASHER

- lock, drive gear, not serrated, I.D. smooth

2шт.

23

A34354

NUT

- drive gear retaining (15/16" thick)

2шт.

23

A23386

NUT

- drive gear retaining (3/4" thick)

2шт.

24

113-610

X

BOLT - housing (5/8 x 2" N.C. hex.)

16шт.
