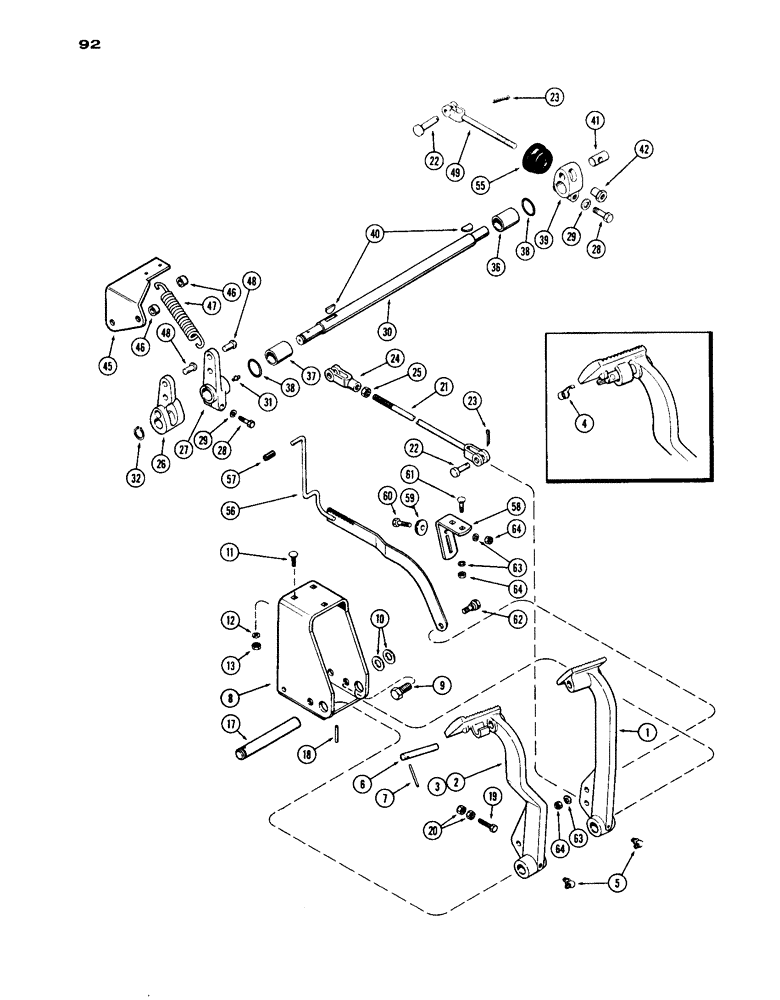

Запчасти Case IH 1030 (092) - BRAKE CONTROLS, FIRST USED TRACTOR SERIAL NUMBER 8282440 (06) - POWER TRAIN

1

A57165

PEDAL - brake, left hand

1шт.

2

A57453

PEDAL - brake, R.H. (1st used trac. no. 8322847)

1шт.

3

A57164

PEDAL - brake, R.H. (used prior to trac. ser. no. 8322847)

1шт.

4

A57451

CLIP

- lock, R.H. brake pedal (used w/A57164)

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

Part of P/N A41383 Brake Pedal Kit

1шт.

6

A27104

PIN - interlock, brake pedal

1шт.

7

135-378

PIN - (3/8 x 2" Groove)

1шт.

8

A57153

BRACKET - pedal pivot shaft

1шт.

Part of P/N A41383 Brake Pedal Kit

1шт.

9

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Bracket to trans. case Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

10

195-2073

WASHER,0.69" ID x 1.25" OD x 0.07" Thk

- flat steel (11/16 I.D. x 1-1/4" O.D.)

4шт.

11

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Bracket Short NK, 3/8"-16 x 1", G2

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

3шт.

17

A57156

SHAFT - pivot, brake pedal (5-3/32" long)

1шт.

Part of P/N A41383 Brake Pedal Kit

1шт.

18

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, , Pivot shaft 3/16" x 1 3/4", Slotted

1шт.

Part of P/N A41383 Brake Pedal Kit

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Pedal stop Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

- lock, stop bolt (3/8" N.C. jam)

4шт.

21

A57157

ROD - brake pedal to lever (18-3/4" long)

2шт.

Part of P/N A41383 Brake Pedal Kit

1шт.

22

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, brake rod yoke & pull rod

6шт.

23

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

10шт.

24

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - brake rod end

2шт.

25

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.)

2шт.

26

A57158

LEVER - brake, right hand

1шт.

Part of P/N A41383 Brake Pedal Kit

1шт.

27

A57159

LEVER - brake, left hand, intermediate

1шт.

Part of P/N A41383 Brake Pedal Kit

1шт.

28

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/5 x 1-3/4" N.C. hex.)

2шт.

29

92-8

LOCK WASHER,1/2"

2шт.

30

A32670

SHAFT - cross

1шт.

31

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, cross shaft (1/4" str. drive)

1шт.

32

F62023

SNAP RING,#93, Ext

Ring, Snap, , brake lever #93, Ext

1шт.

36

A28201

SLEEVE

- cross shaft, L.H. (3" long)

1шт.

37

A28200

SLEEVE

- cross shaft, R.H. (2" long)

1шт.

38

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - sleeve (1-1/8 x 1-3/8 x 1/8")

2шт.

39

A26356

LEVER - brake, left hand

1шт.

40

126-132

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

Cross shaft #21, 1/4" x 1 1/4", HT

2шт.

41

A27687

HARDWARE

TRUNNION - pull rod guide

2шт.

42

A27686

NUT

- pull rod adjusting

2шт.

45

A57160

BRACKET - return spring (6" long, top surface)

1шт.

Part of P/N A41383 Brake Pedal Kit

1шт.

46

A21758

BUSHING

SPACER - bracket (1/2 x 27-32 x 3/8") (used prior to trans. ser. no. 2234271)

2шт.

47

CASA34224

SPRING

- brake pedal return

2шт.

48

A34225

PIN

- spring anchor

2шт.

49

A28203

ROD

- pull, brake

2шт.

55

A27465

CAP

- dust, pull rod

2шт.

56

A57161

RATCHET - parking brake

1шт.

Part of P/N A41383 Brake Pedal Kit

1шт.

57

A23953

TIP

- ratchet handle

1шт.

Part of P/N A41383 Brake Pedal Kit

1шт.

58

A23836

GUIDE - parking brake ratchet

1шт.

59

A29920

PAWL

PAUL - ratchet lock

1шт.

60

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Pawl Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

61

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Bracket Short NK, 3/8"-16 x 1", G2

2шт.

62

A23824

STUD

- ratchet to brake pedal

1шт.

63

92-6

LOCK WASHER,3/8"

4шт.

64

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

A41383

KIT - brake pedal, Includes: Ref. 1, 2, 5, 8, 17, 18, 21, 26, 27, 45, 56 and 57 and 1 P/N A57240 batt. case brace, 1 P/N A57157 plat. brace, 1 P/N 13-820, 1 P/N 92-5, 1 P/N 92-8, 1 P/N 13-516, 1 P/N 25-105 and 1 P/N 25-108, not illustrated

1шт.
