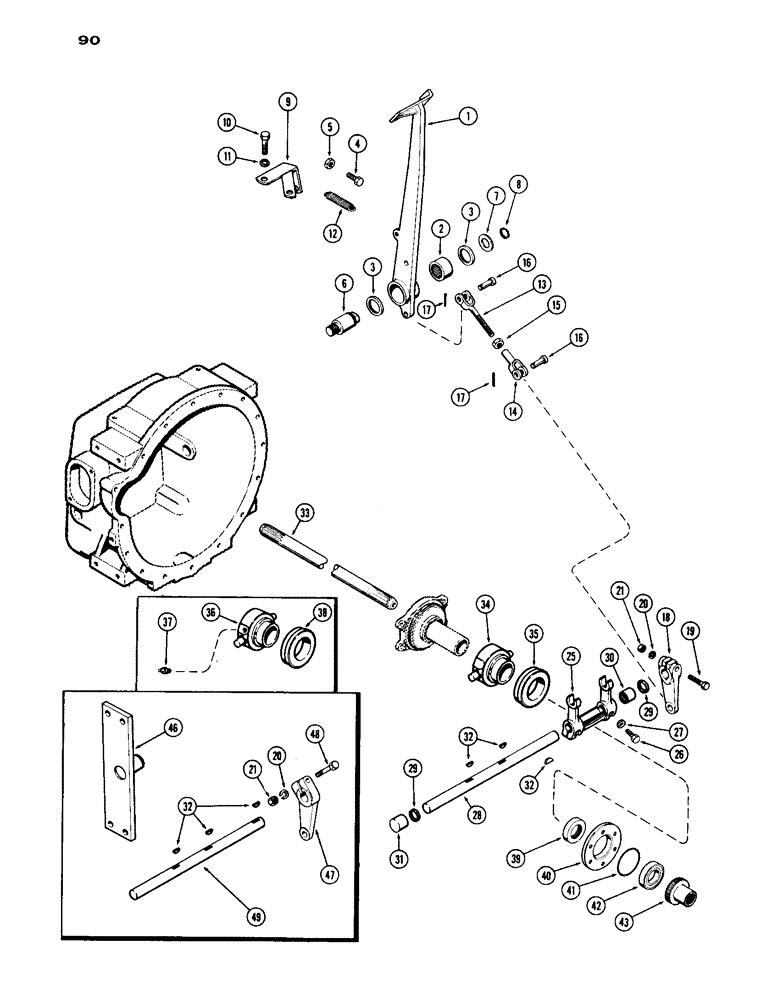

Запчасти Case IH 1030 (090) - CLUTCH CONTROLS, FIRST USED TRACTOR SERIAL NUMBER 8282440 (06) - POWER TRAIN

1

A32513

PEDAL ASSY. - clutch, Includes Ref: 2 and 3

1шт.

2

A28213

NEEDLE BEARING,1.5" ID x 1.875" OD x 1.25"

BEARING - needle (1-1/2 x 1-7/8 x 1-1/4")

1шт.

3

A28214

OIL SEAL

- oil (1-1/2 x 1-7/8 x 3/16")

2шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Pedal stop Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

5

25-146

JAM NUT,Jam, 3/8"-16, G5

- lock, stop bolt (3/8" N.C. jam)

1шт.

6

A57010

STUD - pedal pivot (See item 46)

1шт.

7

195-2142

WASHER,1 17/32" x 2 1/16" x .109"

- pedal stop (1-17/32 x 2-1/16 x 12 Ga.)

1шт.

8

A57011

SNAP RING,#150, 1.408", Ext

RING - snap, pedal retaining

1шт.

9

A57004

BRACKET - clutch spring anchor

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- bracket (1/2 x 1-3/4" N.C. hex.)

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

A30310

SPRING

- pedal return

1шт.

13

A57012

ROD

- clutch pedal linkage

1шт.

14

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod end

1шт.

15

25-118

NUT,1/2"-20, G5

- yoke lock (1/2" N.F. hex.), Includes Ref: 16

1шт.

16

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, rod & yoke

2шт.

17

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

18

A32516

LEVER

- clutch throwout (See item 47)

1шт.

19

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- lever (1/2 x 2-1/2" N.C. hex.)

1шт.

20

92-8

LOCK WASHER,1/2"

1шт.

21

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

1шт.

25

A32822

YOKE

- throwout clutch

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Yoke Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

A57003

SHAFT - clutch throwout (See item 49)

1шт.

29

A28211

OIL SEAL

- oul, throwout shaft (1 x 1-1/4 x 1/8")

3шт.

30

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle (open both ends)

1шт.

31

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - needle (open one end)

1шт.

32

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Throwout shaft #15, 1/4" x 1"

3шт.

33

A34435

SHAFT

- clutch & P.T.O., Includes Ref: 34 and 35

1шт.

A57997

CARRIER

ASSY. - clutch throwosut brg. (Not illust.) (1st used trac. ser. no. 8354201)

1шт.

34

A58977

SLEEVE

- (w/out grease fitting hole)

1шт.

35

A58982

BALL BEARING,2.5" ID x 4.062" OD x 0.885"

BEARING - clutch release (Aetna #A3552)

1шт.

36

A57411

SLEEVE

- clutch throwout bearing (Replaces A32820) (used prior to trac. ser. no. 8354201)(Order A57997)

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

38

A32819

PACKAGE

BEARING - clutch release (Aetna #A2287-31) (used prior to trac. ser. no. 8354201)

1шт.

39

A57479

OIL SEAL

- oil (1-1/2 x 2-1/8 x 7/16")(Replaces A7144)

1шт.

40

A7145

RETAINER

- oil seal

1шт.

41

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - retainer (2-1/2 x 2-3/4 x 1/8")

1шт.

42

A60023

BEARING ASSY,34.99mm ID x 62mm OD x 14mm W

BEARING - front, pilot (must be used w/A60026 shaft) (New Departure 773L07-XILD) (1st used eng. ser. no. 2206911)

1шт.

42

A28237

BALL BEARING,34.99mm ID x 62mm OD x 14mm W

BEARING - front, pilot (New Departure 73L07-XIA) (used prior to eng. ser. no. 2206911)

1шт.

43

A34522

SLEEVE

- clutch shaft, front

1шт.

46

A57064

SUPPORT - clutch pedal pivot, parts peculiar to field conversion kit only

1шт.

47

A57063

LEVER - clutch throwout, parts peculiar to field conversion kit only

1шт.

48

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Lever, parts peculiar to field conversion kits only

1шт.

49

A32821

SCREW

SHAFT - clutch throwout, parts peculiar to field conversion kits only

1шт.
