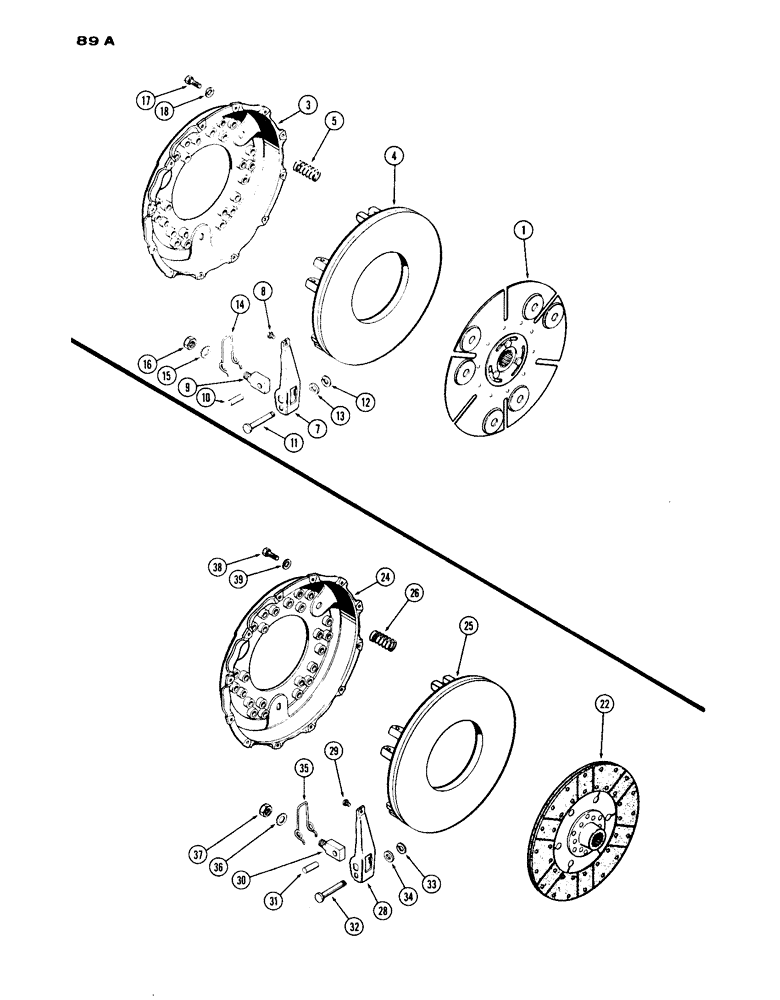

Запчасти Case IH 1030 (089A) - CLUTCH, FIRST USED TRACTOR SERIAL NUMBER 8329959 (06) - POWER TRAIN

1

A57425

CLUTCH DISC

CLUTCH DISK PLATE - clutch, driven

1шт.

1

AR57425

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 15 in., 16Tooth hub, 6 button assembly,

1шт.

1

AC57425

CORE-CLUTCH DISC

Return Part Number

1шт.

A34459

COVER ASSY

COVER ASSY. - clutch (not illust.), Includes Ref: 3 - 16

1шт.

AR34459

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 15 in, No Hub,

1шт.

AC34459

CORE-CLUTCH PLATE

Return Part Number

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - back (Order A34459)

1шт.

4

A25113

PLATE

PLATE - pressure

1шт.

5

A42470

CLUTCH

SPRING KIT - pressure (Gray)(Set of 12)

1шт.

A40809

KIT

LEVER KIT - clutch release (not illust.), Includes Ref: 7

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER ASSY. - clutch release (Order A40809), Includes Ref: 8

3шт.

8

A25117

ADJUSTMENT SCREW,3/8" - 24 x 17/32"

SCREW - lever adjusting

1шт.

9

A25119

BLOCK

BLOCK - lever pivot

3шт.

10

A25118

AXLE PIN

PIN - lever pivot block

3шт.

11

A40811

SPARE PART PIN - clevis, torsion spring

3шт.

12

A40810

RING, SNAP

RING SNAP RING - retainer

3шт.

13

A25121

WASHER

WASHER - clevis pin

3шт.

14

A25120

SPRING

SPRING - torsion (anti-rattle)

3шт.

15

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", Block

3шт.

16

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - block ret. (5/8" N.F. hex., jam)

3шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Clutch Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

18

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

12шт.

22

A32817

PLATE ASSY.

PLATE - cultch, driven, used prior to trac. ser. no. 8329959

1шт.

A32818

COVER

COVER ASSY. - clutch (not illust.), used prior to trac. ser. no.8329959, Includes Ref: 24 - 37

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - back (Order A32818), used prior to trac. ser. no. 8329959

1шт.

25

A25113

PLATE

PLATE - pressure, used prior to trac. ser. no. 8329959

1шт.

26

A25114

SPRING

SPRING - pressure (black), used prior to trac. ser. no. 8329959

18шт.

It Is Suggested That A Complete Set Of Springs Be Installed When Repairing Clutch

1шт.

A40809

KIT

LEVER KIT - clutch release (not illust.), used prior to trac. ser. no. 8329959, Includes Ref: 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

LEVER ASSY. - clutch release (Order A40809), used prior to trac. ser. no. 8329959

3шт.

29

A25117

ADJUSTMENT SCREW,3/8" - 24 x 17/32"

SCREW - lever adjusting, used prior to trac. ser. no. 8329959

1шт.

30

A25119

BLOCK

BLOCK - lever pivot, used prior to trac. ser. no. 8329959

3шт.

31

A25118

AXLE PIN

PIN - lever pivot block, used prior to trac.ser. no.. 8329959

3шт.

32

A40811

SPARE PART PIN - clevis, torsion spring, used prior to trac. ser. no. 8329959

3шт.

33

A40810

RING, SNAP

RING SNAP RING - retainer, used prior to trac. ser. no. 8329959

3шт.

34

A25121

WASHER

WASHER - clevis pin, used prior to trac. ser. no. 8329959

3шт.

35

A25120

SPRING

SPRING - torsion (anti-rattle), used prior to trac. ser. no. 8329959

3шт.

36

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", Block, used prior to tractor S/N 8329959

3шт.

37

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - block ret (5/8" N.F. hex., jam), used prior to trac. ser. no. 8329959

3шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Clutch, Used prior to trac. S/N 8329959 Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

39

92-6

LOCK WASHER,3/8"

LOCK WASHER, , used prior to trac. ser. no. 8329959 3/8"

12шт.
