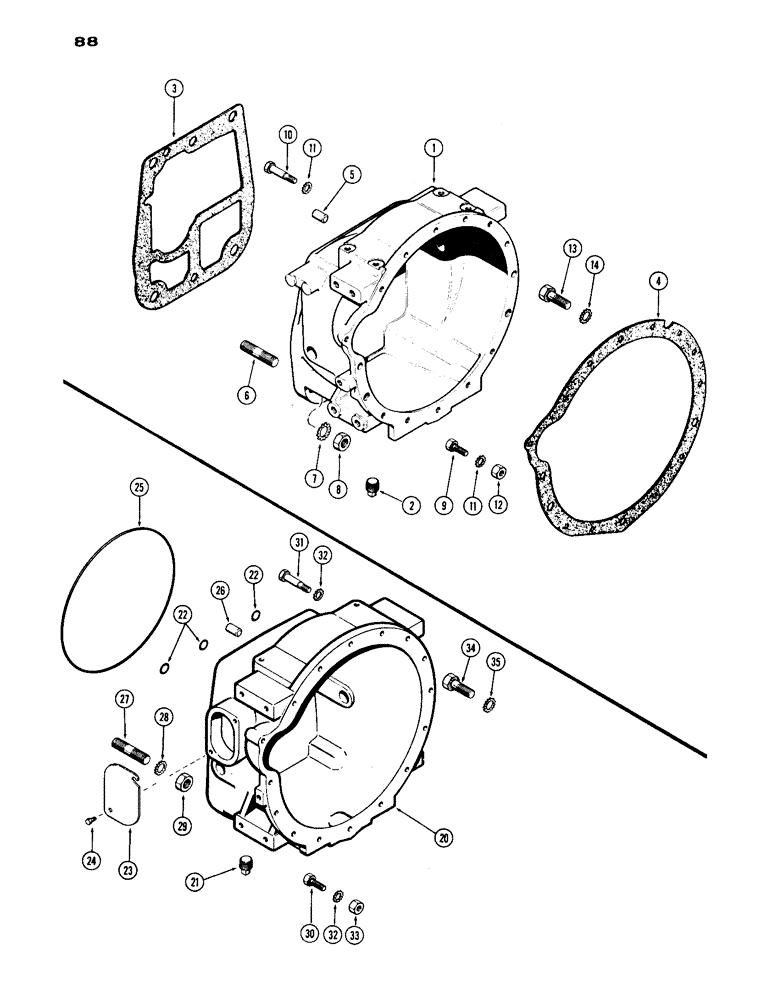

Запчасти Case IH 1030 (088) - CLUTCH HOUSING, FIRST USED TRACTOR SERIAL NUMBER 8354201 (06) - POWER TRAIN

1

A57989

HOUSING - clutch

1шт.

2

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - housing (1/4" P.T. Sq. Hd.)

1шт.

3

A58973

GASKET

- clutch hsg. to trans. case

1шт.

4

A58139

GASKET

- clutch, Serial Range: hsg.-engine

1шт.

5

A28269

PIN

- locating, clutch hsg. (3/4 x 1-1/4")

2шт.

6

A7073

STUD

- (to trans. case)(7/8" N.F. x 4")

4шт.

7

A57961

LOCK WASHER

- (7/8" ext. skpf.)

4шт.

8

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(to engine) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

5шт.

9

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (to engine) (1/2 x 1-3/4" N.C. hex.)

1шт.

10

A61041

STEP BOLT

BOLT -shoulder (1/2 x 2-3/16" N.C.)(Replaces A32608)

1шт.

10

A61040

STEP BOLT

BOLT - shoulder (1/2 x 3" N.C.)(Replaces A32607)

1шт.

11

A34650

LOCK WASHER

- (1/2" ext. skpf)

8шт.

12

25-108

NUT,1/2"-13, G5

- 91/2" N.C. hex.)

3шт.

13

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

(to engine) Hex, 3/4"-10 x 2 1/4", G5

2шт.

14

A34651

LOCK WASHER

- (3/4" ext. skf.)

2шт.

20

A34808

X

HOUSING - clutch (Replaces A32055)(Order A57989 hsg., A58982 bearing, A58139 gasket & A58973 gasket), used prior to trac. ser. no 8354201

1шт.

21

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - housing (1/4" P.T., sq. hd.), used prior to trac. ser. no. 8354201

1шт.

22

A7075

GASKET

"O" RING - oil ports (7/8 x 1-1/8 x 1/8"), used prior to trac. ser. no.8354201

3шт.

23

A7082

COVER

- hand hole, used prior to trac. ser. no. 8354201

1шт.

24

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - cover - (3/8 x 1/2" N.C. hex.), used prior to trac. ser. no. 8354201

2шт.

25

A32047

GASKET

- clutch hsg. to trans. case (13-3/4 x 14-1/8 x 3/16" rubber), used prior to trac. ser. no. 8354201

1шт.

26

A28269

PIN

- clutch hsg. locating (3/4 x 1-1/4"), used prior to trac. ser. no 8354201

2шт.

27

A7073

STUD

- (to trans. case)(7/8" N.F. x 4"), used prior to trac. ser. no. 8354201

4шт.

28

A57961

LOCK WASHER

- (7/8" ext. skpf.)used prior to trac. ser. no 8354201

4шт.

29

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.), used prior to trac. ser. no. 8354201

4шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(to engine), used prior to tractor S/N 8354201 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

5шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (to engine)(1/2 x 1-3/4" N.C. hex.), used prior to trac. ser. no. 8354201

1шт.

31

A61041

STEP BOLT

BOLT - shoulder (1/2 x 2-3/16" N.C.)(Replaces A32608), used prior to trac. ser. no 8354201

1шт.

31

A61040

STEP BOLT

BOLT - shoulder (1/2 x 3" N.C.)(Replaces A32607), used prior to trac. ser. no. 8354201

1шт.

32

A34650

LOCK WASHER

- (1/2" ext. skpf.), used prior to trac. ser. no. 8354201

8шт.

33

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.), used prior to trac. ser. no. 8354201

3шт.

34

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

(to engine), used prior to tractor S/N 8354201 Hex, 3/4"-10 x 2 1/4", G5

2шт.

35

A34651

LOCK WASHER

- (3/4" ext. skpf.), used prior to trac. ser. no. 8354201

2шт.
