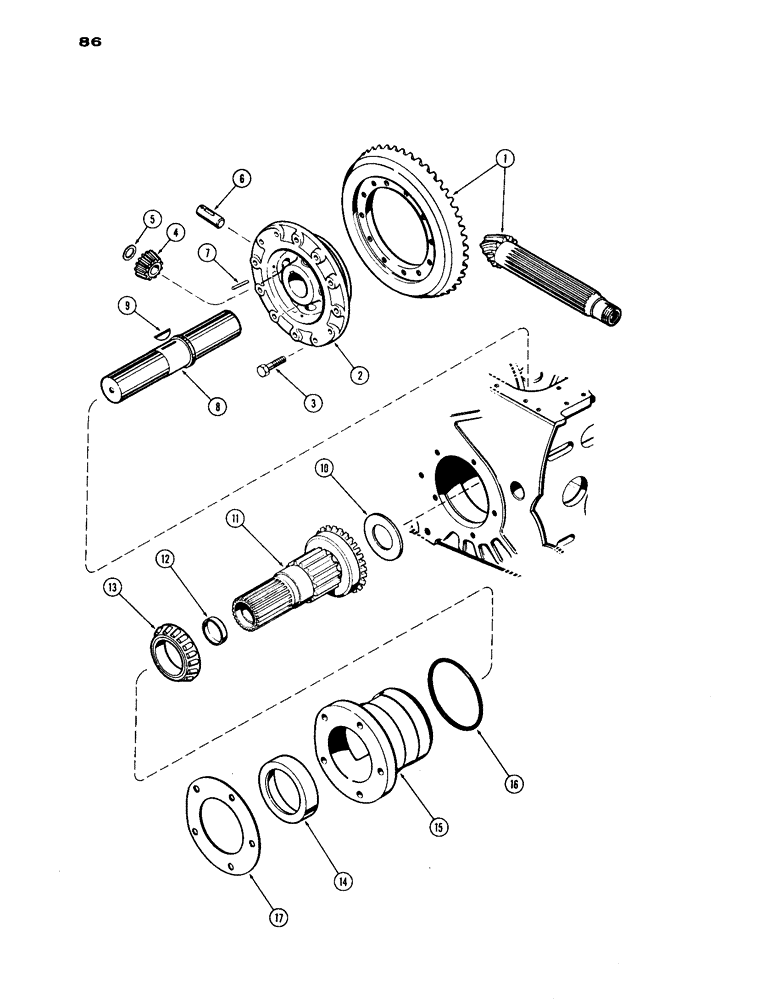

Запчасти Case IH 1030 (086) - DIFFERENTIAL (06) - POWER TRAIN

1

A34574

X

GEAR ASSY. - ring (matched set)

1шт.

2

A33905

WHEEL

- center, ring gear

1шт.

3

A32769

BOLT

- ring gear to ctr. wheel (1/2 x 1-3/4" N.C. spec.)

12шт.

4

A32767

PINION

- drive, side gears

4шт.

5

A33539

WASHER

- thrust, drive pinion (1 x 2-3/16 x 3/64")

4шт.

6

A34174

X

SHAFT - drive pinion

4шт.

7

138-2019

PIN,5/16" x 7/8", Coiled

shaft ret. 5/16" x 7/8", Coiled

4шт.

8

A34800

SHAFT

- differential (replaces A34200)

1шт.

9

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY - center wheel (#TX Woodruff)

1шт.

10

A28182

WASHER

- thrust, side gear (2-1/2 x 3-7/8 x 3/16")

2шт.

11

A34338

GEAR ASSY. - side, Includes Ref: 12

2шт.

12

A24555

PLUG

- (2-5/8" cup type)

1шт.

13

A34340

ROLLER BEARING

CONE - bearing, side gear

2шт.

14

A34343

BEARING CUP

CUP - bearing, side gear

2шт.

15

A34341

SLEEVE ASSY. - support, w/bushing

2шт.

16

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - sleeve (6-1/4 x 6-1/2 x 1/8")

2шт.

17

A28188

SHIM,.003" Thk

Sleeve .003" Thk

1шт.

17

A28189

SHIM,.005" Thk

Sleeve .005" Thk

1шт.

17

A28190

SHIM,.010" Thk

Sleeve .010" Thk

1шт.
