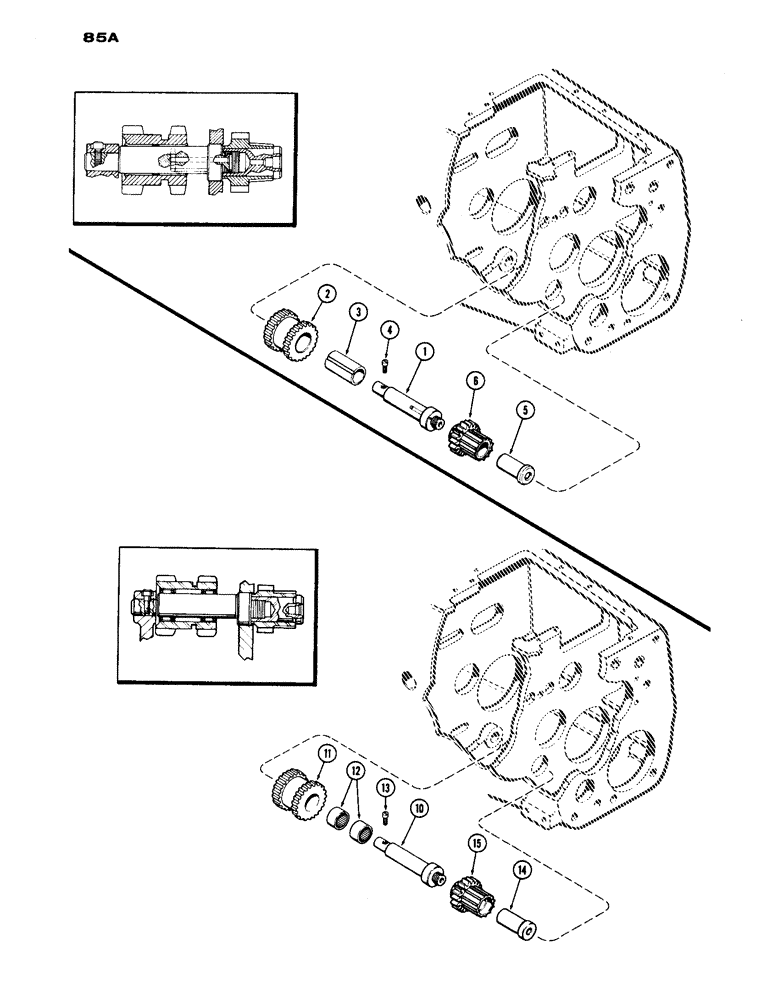

Запчасти Case IH 1030 (085A) - TRANSMISSION REVERSE IDLER SHAFT, FIRST USED TRACTOR SERIAL NUMBER 8327390 (06) - POWER TRAIN

1

A57936

SHAFT - reverse idler (tapped for 7/16" N.C. set screw) (1st used trans. ser. no. 2262645)

1шт.

1

A57590

SHAFT

- reverse idler (tapped for 7/16" N.C. set screw) (used trans. ser. no., Serial Range: 2223739-2262645)

1шт.

1

A57414

X

SHAFT - reverse idler (tapped for 3/8" N.C. set screw) (used prior to trans. S/N 2223729)(Order A57590 & A57591)

1шт.

2

A58141

GEAR

ASSY. - reverse shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - reverse shaft

1шт.

4

A57591

SCREW

- lock (7/16 x 3/4" N.C. sckt. hd.) (1st used trans. ser. no. 2223729) (used w/A57590 shaft)

1шт.

4

A32007

SCREW,3/8" - 16 x 1 5/16"

- lock (3/8 x 3/4" N.C. sckt. hd.) (used prior to trans. ser. no. 2223729) (used w/A57414 shaft)

1шт.

5

A57415

SHAFT

- oil slinger gear

1шт.

6

A34742

GEAR

- oil slinger

1шт.

10

A32752

X

SHAFT - reverse idler (Order 1-A57414, 1-A57415, & 1-A58141), used prior to trac. ser. no. 8327390

1шт.

11

A34614

X

GEAR ASSY. - reverse shaft (Order 1-A57414, 1-A57415 & 1-A58141), used prior to trac. ser. no. 8327390, Includes Ref: 12

1шт.

12

A34615

WASHER,Needle, 38.08mm ID x 47.63mm OD x 31.75mm W

BEARING - needle (Order 1-A57414, 1-A57415 & 1-A58141), used prior to trac. ser. no. 8327390

2шт.

13

A32007

SCREW,3/8" - 16 x 1 5/16"

- lock (3/8 x 3/4" N.C. sckt. hd.), used prior to trac. ser. no. 8327390

1шт.

14

A34081

X

SHAFT - oil slinger gear (Order A57415), used prior to trac. ser. no. 8327390

1шт.

15

A34742

GEAR

- oil slinger, used prior to trac. ser. no. 8327390

1шт.
