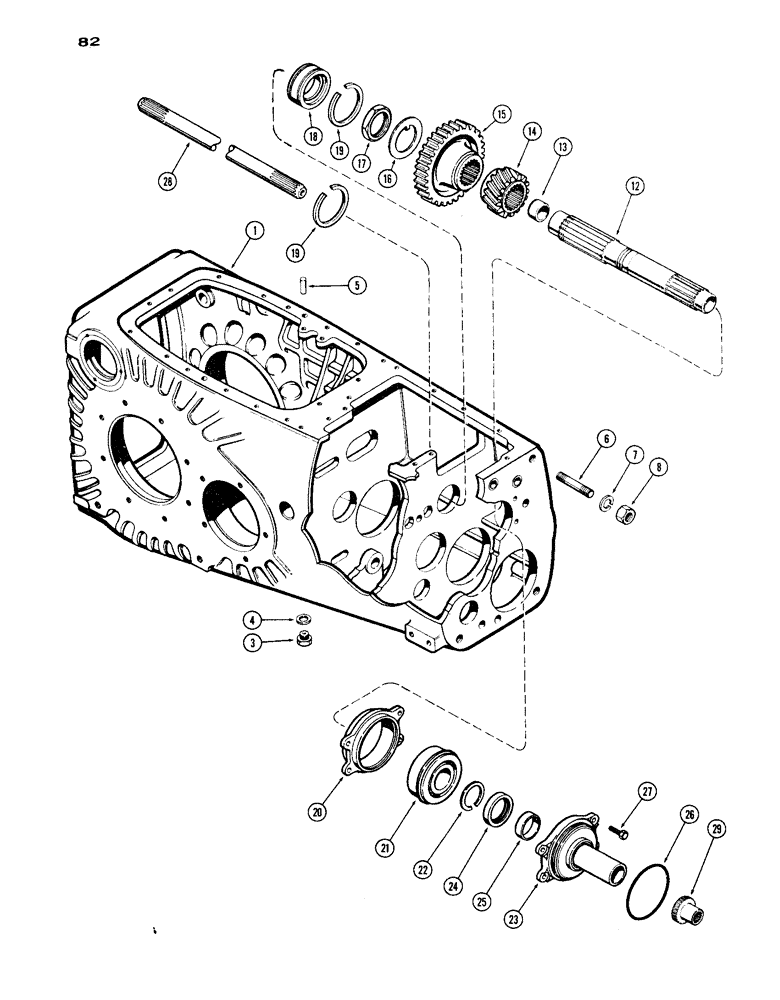

Запчасти Case IH 1030 (082) - TRANSMISSION CASE (06) - POWER TRAIN

1

A57937

CASE - transmission (1st used trans. ser. no. 2262645)

1шт.

1

A57002

CASE - trans. (Order A57937 case & A57936 shaft) (used trac. ser. no. 8282440 to trans. ser. no. 2262645)

1шт.

1

A34291

CASE - trans. (Order A57937 case & A57936 shaft) (used prior to trac. ser. no. 8282440)

1шт.

3

A14280

PLUG

- drain, trans. case

3шт.

4

A58608

GASKET

- drain plug (Replaces A27927)

3шт.

5

A7077

DOWEL

- cover locating (1/2 x 1-3/8")

2шт.

6

A7073

STUD

- trans. case to clutch hsg. (7/8" N.F. x 4")

4шт.

7

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

8

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

12

A60026

SHAFT

ASSY. - range drive, w/oil hole (1st used trac. ser. no. 8362744), transmission, P.T.O.

1шт.

12

A57608

SHAFT

ASSY. - range drive, w/out oil hole (Order 1-A60025 shaft & 1-A60023 bearing)(Replaces A33325) (Used prior to trac. ser. no. 8362744)transmission, P.T.O., Includes Ref: 13

1шт.

13

A28235

BUSHING

- (1-1/8 x 1-1/4 x 3/4"), transmission range & P.T.O. shafts

1шт.

14

A34349

GEAR

- drive, low range (18 teeth), transmission range & P.T.O. shafts

1шт.

15

A34350

GEAR

- drive, high range (38 teeth), transmission , P.T.O.

1шт.

16

A32035

LOCK WASHER

- seat, retaining nut, transmission range & P.T.O. shafts

1шт.

17

A32034

NUT

- range gears retaining, transmisson & P.T.O. shafts

1шт.

18

A32751

BEARING ASSY,43.96mm ID x 72mm OD x 26.99mm W

BEARING - range shaft, rear, transmission & P.T.O.

1шт.

19

A28153

RING

- snap, rear brg. ret., transmission range & P.T.O. shafts

2шт.

20

A32791

CARRIER

- front range shaft brg., transmission, P.T.O. shafts

1шт.

21

39320

BALL BEARING,45mm ID x 106.38mm OD x 39.69mm W

- range shaft, front, transmission & P.T.O.

1шт.

22

A27085

RING

- snap, front brg. ret., transmission range & P.T.O. shafts

1шт.

23

A57423

X

CARRIER ASSY. - clutch throwout brg. (Replaces A32795) (Order 1-A57698 carrier & 1-A57697 sleeve) (used prior to trac. ser. no. 8346622),transmission range & P.T.O. shaft, Includes Ref: 24

1шт.

23

A57698

CARRIER

ASSY. - clutch throwout brg. (1st used trans. ser. no. 8346622), transmission range & P.T.O. shaft, Includes Ref: 24

1шт.

24

A57699

SEAL

- oil (1-7/8 x 2-1/2 x 3/8"), transmission range & P.T.O. shaft

1шт.

24

A33734

OIL SEAL

- oil (1-15/16 x 2-1/2 x 3/8") (Order 1-A57697 sleeve & 1-A57699 oil seal), transmission range & P.T.O. shaft

1шт.

25

A57697

SLEEVE

- wear (1-3/4 x 1-7/8 x 5/8") (1st used trac. ser. no. 8346622), transmission range & P.T.O. shaft

1шт.

25

A32792

SLEEVE

- wear, oil seal (1-3/4 x 1-15/16 x 5/8") (used prior to trac. ser. no. 8346622) (Order 1-A57697 sleeve & 1-A57699 oil seal), transmission range & P.T.O. shaft

1шт.

26

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - carrier (4-1/4 x 4-1/2 x 1/8"), transmission range & P.T.O. shaft

1шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- carrier (3/8 x 1-1/2" N.C. hex.), transmission range & P.T.O. shaft

4шт.

28

A34435

SHAFT

- P.T.O. (53-13/32" long), transmission range

1шт.

29

A34522

SLEEVE

- clutch shaft, front (See Fig. 90, ref. 43), transmission range & P.T.O.

1шт.
