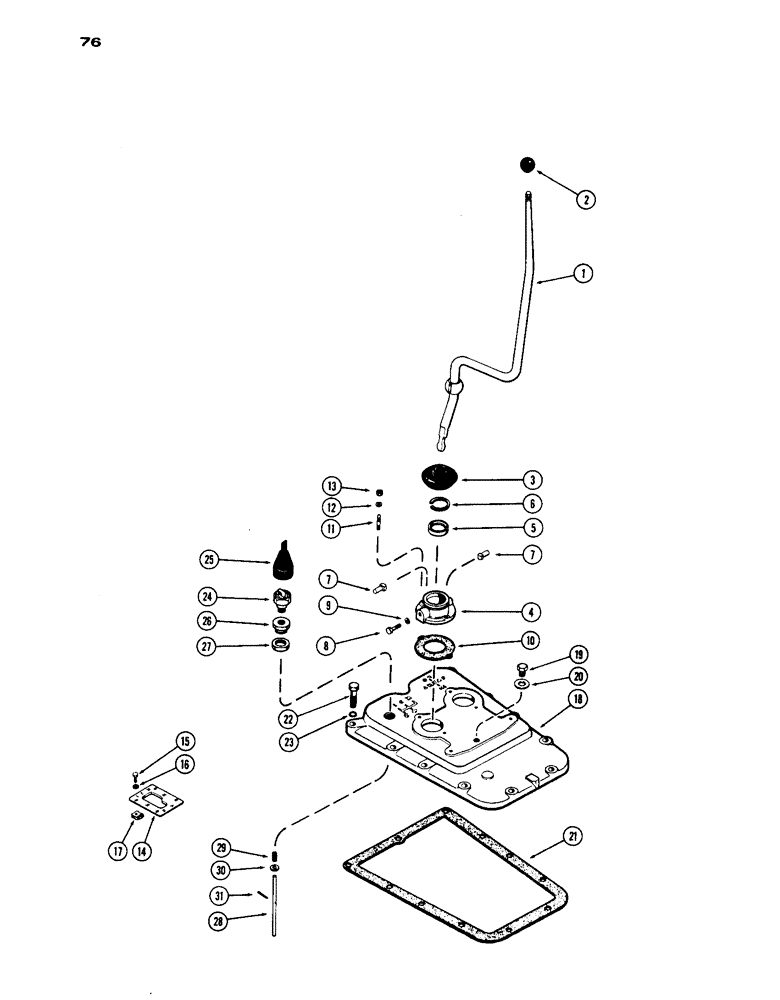

Запчасти Case IH 1030 (076) - GEAR SHIFT LINKAGE (06) - POWER TRAIN

1

A34754

LEVER

- gear shift

1шт.

2

A23885

KNOB

- gear shift lever

1шт.

3

A57876

COVER

CAP - dust (rubber)(Replaces A26956)

1шт.

4

A7596

SOCKET

- shift lever seat, lower

1шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAT - gear shift lever, upper

1шт.

6

A26836

RING, SNAP

RING - snap, upper seat retaining

1шт.

7

A26835

PIN

- pivot, gear shift lever

2шт.

8

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - pivot pin (3/8 x 1/2" N.C.)

1шт.

9

A22317

WASHER

- gear shift lever socket pin

1шт.

10

A7598

GASKET

- lower socket

1шт.

11

A7597

STUD - socket (3/8 N.C./N.F. x 1-5/16")

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

14

A34755

INDICATOR - gear shift

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

16

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

17

131-602

NUT - retaining (5/16" N.C. Tinnerman)

4шт.

18

A34761

COVER - gear shift (w/out tapped top hole)

1шт.

18

A32816

COVER - gear shift (w/tapped top hole)

1шт.

19

13-810

BOLT (1/2 x 5/8" N.C. hex.)(used w/A32816 cover)

1шт.

20

195-1024

WASHER - (9/16 x 1-1/4 x 3/32" brass)(used w/A32816 cover)

1шт.

21

A7594

GASKET

- gear shift cover

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover Hex, 1/2"-13 x 1 1/2", G5, Full Thd

7шт.

23

92-8

LOCK WASHER,1/2"

7шт.

24

A20990

SWITCH

- safety, neutral start

1шт.

25

A20991

BOOT

COVER - safety switch

1шт.

26

A20988

NUT - switch adapter

1шт.

27

A20989

LOCK NUT

NUT - lock, switch adapter

1шт.

28

A22713

ROD - safety switch contact

1шт.

29

A22712

SPRING

- safety rod return (items 29, 30 & 31 not req.) (used prior to trans. ser. no. 2231440)

1шт.

30

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1-16")

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
