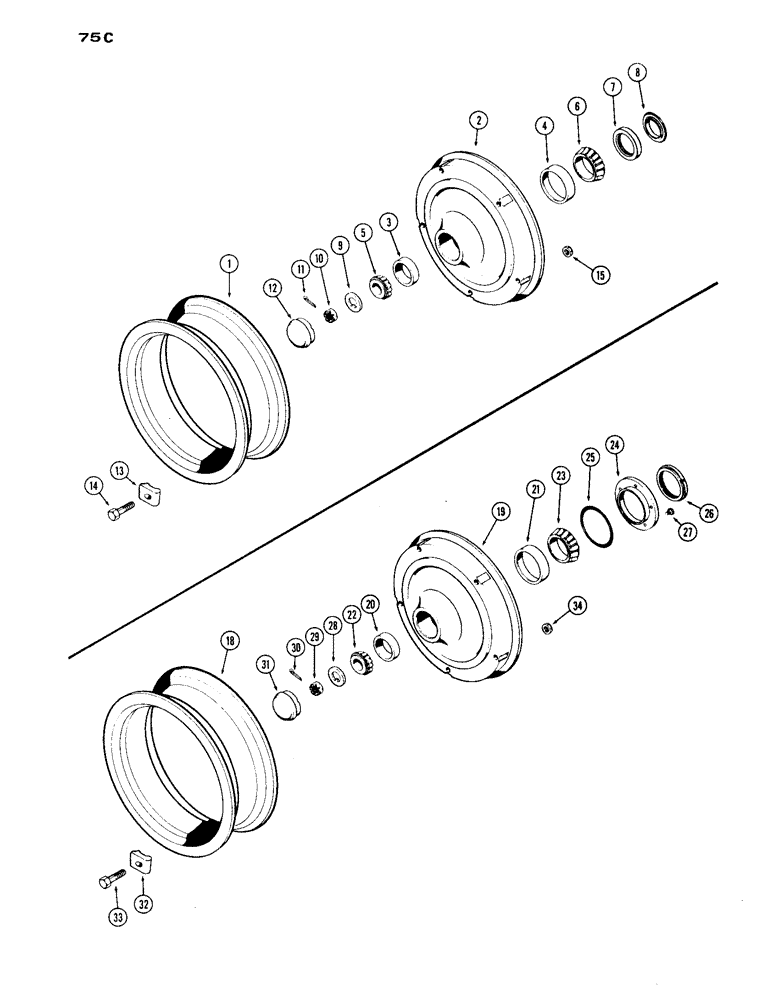

Запчасти Case IH 1030 (075C) - CAST FRONT WHEELS, GENERAL PURPOSE AND WESTERN, FIRST USED TRACTOR SERIAL NUMBER 8332878 (06) - POWER TRAIN

1

A27257

RIM

- front wheel (takes 7.50 x 18 tire)

2шт.

2

A57253

WHEEL ASSY. - front wheel, Includes Ref: 3 and 4

2шт.

3

A27631

CUP

- bearing, outer (2-7/8" O.D.)

1шт.

4

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.)

1шт.

5

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.)

2шт.

6

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.)

2шт.

A57250

OIL SEAL

KIT - oil seal retainer (Not Illust.), Includes Ref: 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL - inner, front wheel (Order A57250)

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - outer, front wheel (Order A57250)

1шт.

9

A26789

BEARING WASHER

WASHER - outer brg. ret.

2шт.

10

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle (1-1/8" N.F. slotted)

2шт.

11

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

12

A29425

CAP

- hub, front wheel

2шт.

13

A27228

CLAMP

- front wheel

10шт.

14

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- hex. hd., wheel to rim (1/2 x 3-1/2" N.F.)

10шт.

15

25-178

NUT,1/2"-20, G5, Hvy

- hex. (1/2" N.F.)

10шт.

18

A27257

RIM

- (takes 7.50 x 18 tire), used prior to trac. ser. no. 8332878

2шт.

19

A33351

WHEEL

ASSY. - center disc, used prior to trac. ser. no. 8332878, Includes Ref: 20 and 21

2шт.

20

A27631

CUP

- bearing, outer (2-7/8" O.D.), used prior to trac. ser. no. 8332878

1шт.

21

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.)., used prior to trac. ser. no. 8332878

1шт.

22

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.), used prior to trac. ser. no. 8332878

2шт.

23

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.), used prior to trac. ser. no. 8332878

2шт.

24

A27140

RETAINER

- rear oil seal, used prior to trac. ser. no. 8332878

2шт.

25

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8"), used prior to trac. ser. no. 8332878

2шт.

26

A27139

SEAL

- oil (2-15/32 x 3-15/64 x 1/2"), used prior to trac. ser. no. 8332878

2шт.

27

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- retainer (1/4 x 5/8" N.C. flat hd.), used prior to trac. ser. no. 8332878

10шт.

28

A26789

BEARING WASHER

WASHER - outer brg. ret., used prior to trac. ser. no. 8332878

2шт.

29

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle (1-1/8" N.F. sltd.), used prior to trac. ser. no. 8332878

2шт.

30

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Used prior to trac. S/N 8332878 3/16" x 1 3/4"

2шт.

31

A29425

CAP

- hub, used prior to trac. ser. no. 8332878

2шт.

32

A27228

CLAMP

- rim to hub, used prior to trac. ser. no. 8332878

10шт.

33

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- clamp (1/2 x 3-1/2" N.F. hex.), used prior to trac. ser. no. 8332878

10шт.

34

25-178

NUT,1/2"-20, G5, Hvy

- (1/2" N.F. hex.), used prior to trac. ser. no. 8332878

10шт.
