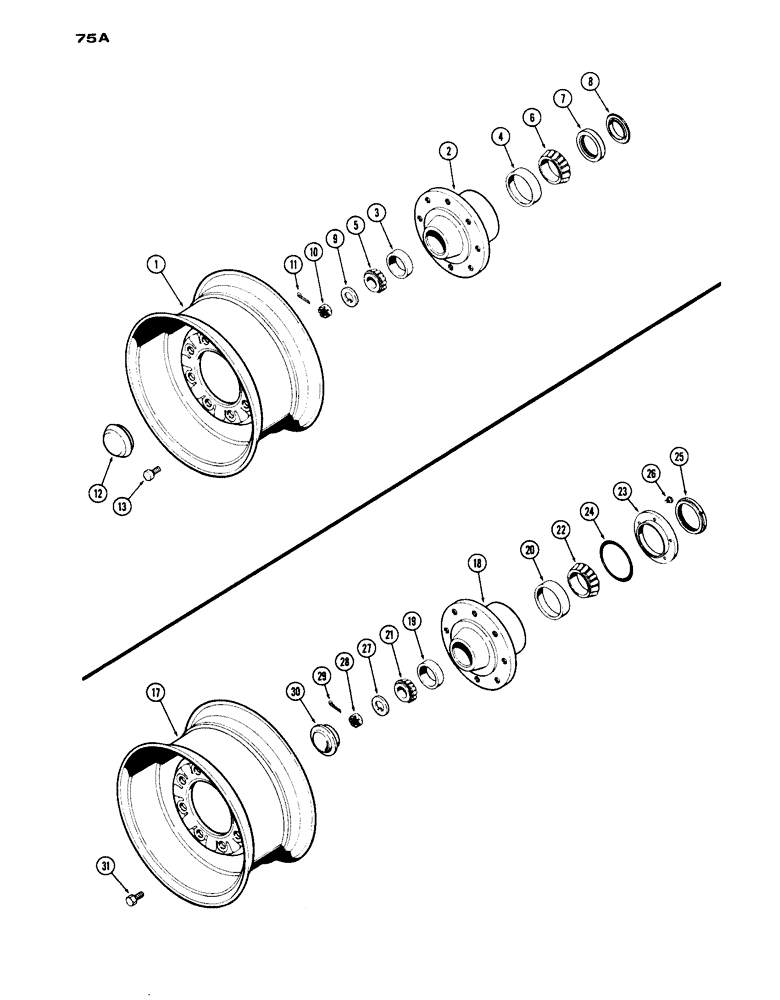

Запчасти Case IH 1030 (075A) - STAMPED FRONT WHEELS, GENERAL PURPOSE & WESTERN, USED W/ 8 BOLT HUB, 1ST USED TRAC. SER. NO. 8332878 (06) - POWER TRAIN

1

A34911

WHEEL

RIM - (1-1/8" offset)(takes 10.00 x 16 or 11.00 x 16 tire)

2шт.

2

A57337

HUB ASSY.

- front wheel, Includes Ref: 3 and 4

2шт.

3

A27631

CUP

- bearing, outer (2-7/8" O.D.)

1шт.

4

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.)

1шт.

5

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.)

2шт.

6

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.)

2шт.

A57250

OIL SEAL

KIT - oil seal retainer (not illust.), Includes Ref: 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL - inner, front wheel (Order A57250)

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - outer, front wheel (Order A57250)

1шт.

9

A26789

BEARING WASHER

WASHER - thrust, outer wheel bearing

2шт.

10

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - brg. retainer (1-1/8" N.F., slotted)

2шт.

11

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

12

A29425

CAP

- hub

2шт.

13

B18264

WHEEL BOLT

BOLT - rim to hub (9/16"-18 x 1-3/32")

16шт.

17

A34911

WHEEL

RIM - (1-1/8" offset)(10.00 x 16 or 11.00 x 16 tire), used prior to trac. ser. no. 8332878

2шт.

18

A33434

HUB ASSY. - front wheel, used prior to trac. ser. no. 8332878, Includes Ref: 19 and 20

2шт.

19

A27631

CUP

- bearing, outer (2-7/8" O.D.), used prior to trac. ser. no. 8332878

1шт.

20

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, used prior to trac. ser. no. 8332878

1шт.

21

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.), used prior to trac. ser. no. 8332878

2шт.

22

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.), used prior to trac. ser. no. 8332878

2шт.

23

A27140

RETAINER

- rear oil seal, used prior to trac. ser. no. 8332878

2шт.

24

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8"), used prior to trac. ser. no. 8332878

2шт.

25

A27139

SEAL

- oil (2-15/16 x 3-7/32 x 7/16"), used prior to trac. ser. no. 8332878

2шт.

26

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- retainer (1/4 x 5/8" N.C. flat head), used prior to trac. ser. no. 8332878

10шт.

27

A26789

BEARING WASHER

WASHER - thrust, outer wheel bearing, used prior to trac. ser. no. 8332878

2шт.

28

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - bearing retaining (1-1/8" N.F. slotted), used prior to trac. ser. no. 8332878

2шт.

29

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Used prior to trac. S/N 8332878 3/16" x 1 3/4"

2шт.

30

A29425

CAP

- hub, used prior to trac. ser. no. 8332878

2шт.

31

B18264

WHEEL BOLT

BOLT - rim to hub (9/16"-18 x 1-3/32"), used prior to trac. ser. no. 8332878

16шт.
