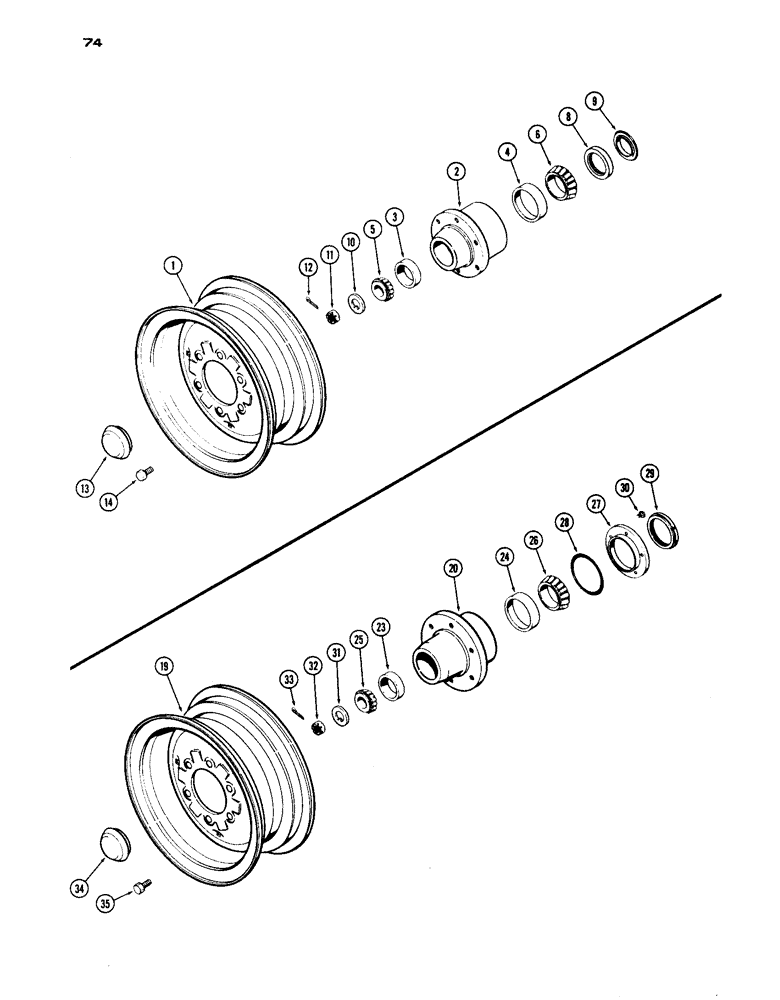

Запчасти Case IH 1030 (074) - STAMPED FRONT WHEELS, GENERAL PURPOSE & WESTERN, USED W/ 6 BOLT HUB, 1ST USED TRAC. SER. NO. 8332878 (06) - POWER TRAIN

1

G57007

WHEEL

RIM - (1-1/8" offset)(takes 7.50 x 15 tire)

2шт.

1

G57046

WHEEL ASSY.

RIM - (1-1/8" offset)(takes 7.50 x 16 or 9.00 x 16 tire)

2шт.

1

A57879

RIM

- (1-1/8" offset)(takes 9.50 x 15 or 11.00 x 15 tire)

2шт.

1

A57333

RIM - (2-1/4" offset)(takes 7.50 x 16 or 9.00 x 16 tire)

2шт.

1

A57435

WHEEL

RIM - (1-3/4" offset)(takes 11.00 x 16 tire)

2шт.

2

A57336

HUB

ASSY. - front wheel, Includes Ref: 3 and 4

2шт.

3

A27631

CUP

- bearing, outer (2-7/8" O.D.)

1шт.

4

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.)

1шт.

5

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.)

2шт.

6

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.)

2шт.

A57250

OIL SEAL

KIT - oil seal retainer (not illust.), Includes Ref: 8 and 9

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - inner, front wheel (Order A57250)

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - outer, front wheel (Order A57250)

1шт.

10

A26789

BEARING WASHER

WASHER - front wheel spindle

2шт.

11

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - wheel spindle (1-1/8" slotted N.F. hex.)

2шт.

12

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

13

A29425

CAP

- hub

2шт.

14

B18264

WHEEL BOLT

BOLT - rim to hub (9/16-18 x 1-3/32")

12шт.

19

G57007

WHEEL

RIM -(1-1/8" offset)(takes 7.50 x 15 tire), used prior to trac. ser. no. 8332878

2шт.

19

G57046

WHEEL ASSY.

RIM - (1-1/8" offset)(takes 7.50 x 16 or 9.00 x 16 tire), used prior to trac. ser. no. 8332878

2шт.

20

A38187

HUB

ASSY. - front wheel (used w/G57046 wheel)(Western only) (with 9/16" tapped holes)(incl. #23 & 24), used prior to trac. ser. no. 8332878

2шт.

20

A22743

HUB

ASSY. - front wheel (with 1/2" tapped holes), used prior to trac. ser. no. 8332878, Includes Ref: 23 and 24

2шт.

23

A27631

CUP

- bearing, outer (2-7/8" O.D.)used prior to trac. ser. no. 8332878

1шт.

24

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.), used prior to trac. ser. no. 8332878

1шт.

25

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.), used prior to trac. ser. no. 8332878

2шт.

26

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.), used prior to trac.ser. no. 8332878

2шт.

27

A27140

RETAINER

- oil seal, used prior to trac. ser. no. 8332878

2шт.

28

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8"), used prior to trac. sr. no. 8332878

2шт.

29

A27139

SEAL

- oil (2-15/32 x 3-15/64 x 1/2"), used prior to trac. ser. no. 8332878

2шт.

30

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- retainer (1/4 x 5/8" N.C. flat hd.), used prior to trac. ser. no. 8332878

10шт.

31

A26789

BEARING WASHER

WASHER - outer brg. ret., used prior to trac. ser. no. 8332878

2шт.

32

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle (1-1/8" N.F. sltd.), used prior to trac. ser. no. 8332878

2шт.

33

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Used prior to trac. S/N 8332878 3/16" x 1 3/4"

2шт.

34

A29425

CAP

- hub, used prior to trac. ser. no. 8332878

2шт.

35

B18264

WHEEL BOLT

BOLT - rim to hub (9/16-18 x 1-3/32"), used prior tot rac. ser. no. 8332878

12шт.

35

A29912

BOLT

BOLT - wheel to hub, used prior to trac. ser. no. 8332878

12шт.
