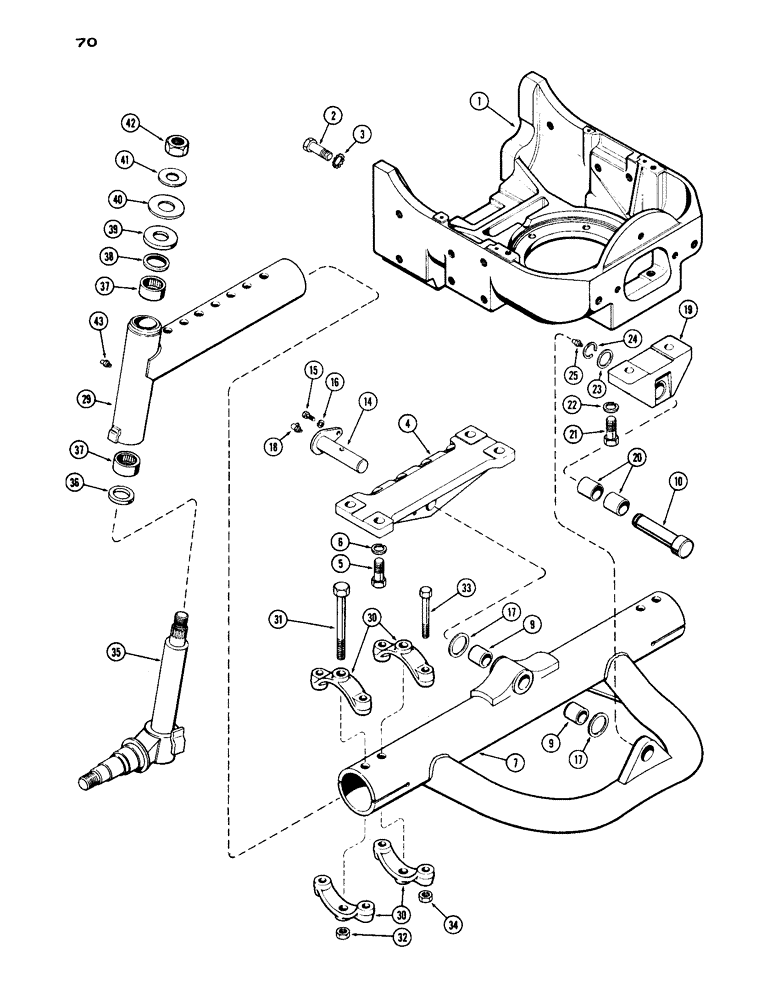

Запчасти Case IH 1030 (070) - FRONT AXLE, WESTERN MODELS, 60 INCH TO 88 INCH, FIRST USED TRACTOR SERIAL NUMBER 8332878 (06) - POWER TRAIN

1

A34326

BRACKET - front axle

1шт.

2

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Bracket Hex, 3/4"-10 x 2 1/4", G5

4шт.

3

A34651

LOCK WASHER

- (3/4" ext. skpf.)

4шт.

4

A57326

PEDESTAL - front axle

1шт.

5

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Pedestal Hex, 3/4"-10 x 2 1/4", G5

4шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

A57521

AXLE ASSY. - front, Includes Ref: 9

1шт.

9

A7841

BUSHING,31.75mm ID x 38.18mm OD x 38.35mm L

- pivot pin (1-1/4 x 1-1/2 x 1-1/2")

2шт.

10

A57514

PIN

- pivot, axle, front

1шт.

14

A34649

PIN

- pivot, axle, rear

1шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Rear privot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

- thrust (1-17/64 x 2-3/16 x 1/8")

2шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

19

A34646

SUPPORT ASSY. - radius rod, Includes Ref: 20

1шт.

20

A7841

BUSHING,31.75mm ID x 38.18mm OD x 38.35mm L

- pivot pin (1-1/4 x 1-1/2 x 1-1/2")

2шт.

21

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Support Hex, 3/4"-10 x 2 1/2", G5

2шт.

22

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

23

T33004

WASHER - radius rod pivot pin

1шт.

24

A31175

RING, SNAP

RING - snap, front pivot pin retainer

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., straight)

1шт.

29

A57316

END SECTION - axle

2шт.

30

A34693

CLAMP - axle

8шт.

31

15-12112

BOLT (SPREADER),Hex, 3/4" - 10 x 7", Gr 5

BOLT - clamp (3/4 x 7" N.C. hex.)

4шт.

32

25-1612

NUT,3/4"-10, G5, Hvy

- (3/4" N.C. hex.)

4шт.

33

113-636

X

BOLT - clamp (5/8 x 4-1/2" N.C. hex.)

8шт.

34

25-1610

NUT,5/8"-11, G5, Hvy

- (5/8" N.C. hex.)

8шт.

35

A57512

SPINDLE - king pin (R.H.) front wheel

1шт.

35

A57513

SPINDLE - king pin (L.H.) front wheel

1шт.

36

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust

2шт.

37

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, (2 x 2-3/8 x 1")

4шт.

38

A57273

OIL SEAL

- oil

2шт.

39

A7849

GUARD

SHIELD - dust

2шт.

40

A24645

SHIM,.0149" Thk

King pin (#28 gauge) .0149" Thk

1шт.

40

A24643

SHIM,.0359" Thk

King pin (#20 gauge) .0359" Thk

1шт.

40

A24642

SHIM,.0598" Thk

King pin (#16 gauge) .0598" Thk

1шт.

40

A24639

SHIM,.1345" Thk

King pin (#10 gauge) .1345" Thk

1шт.

41

A35047

WASHER

- spindle nut (1-3/16 x 2-1/2 x 5/32")

2шт.

42

129-131

NUT,1 1/8"-12, G5

- spindle (1-1/8" N.F. hex.)

2шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., straight)

2шт.
