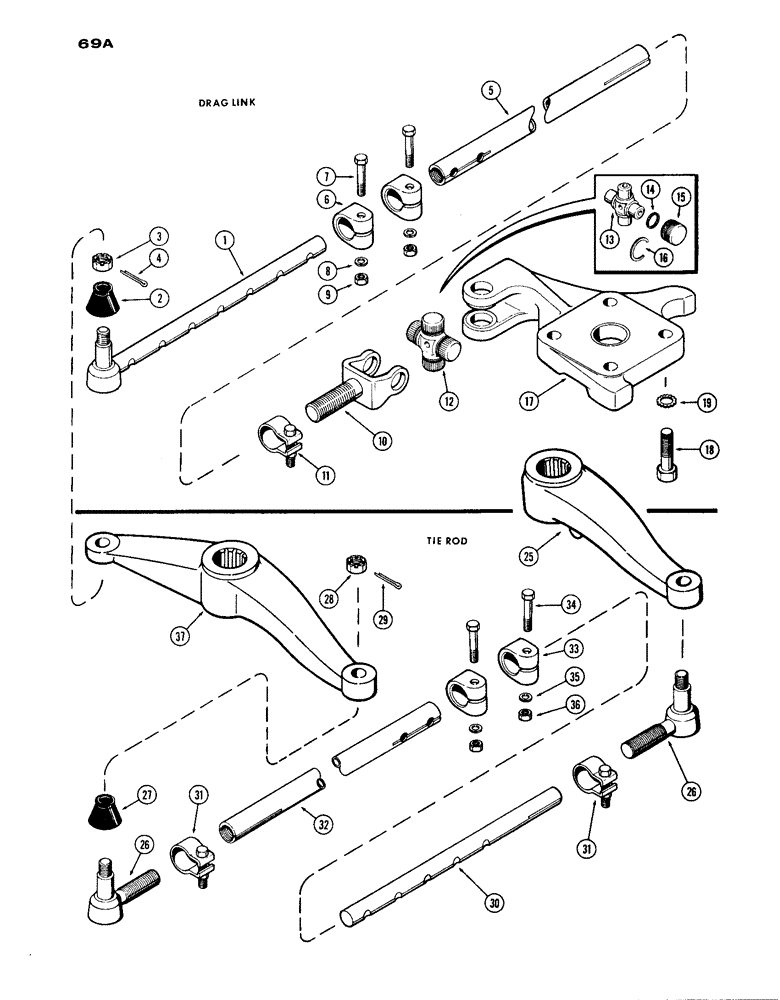

Запчасти Case IH 1030 (069A) - DRAG LINKS, GENERAL PURPOSE MODELS, 56 INCH TO 81 INCH, USED PRIOR TO TRACTOR SERIAL NO. 8332878 (06) - POWER TRAIN

1

A34894

DRAG LINK

END ASSY. - drag link (1st used tractor ser. no. 8304953)

1шт.

1

A34193

X

END ASSY. - drag link (used prior to trac. ser. no. 8304953)(Order A34894), Includes Ref: 2 and 3

1шт.

2

G46043

COVER

SEAL - dust (rubber)

1шт.

3

25-139

SLOTTED NUT,9/16"-18, G5

NUT - (9/16" N.F. sltd.)

1шт.

4

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

5

A34194

TUBE

- drag link (18" long)

1шт.

6

A34191

CLAMP

-, Serial Range: end-tube

2шт.

7

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- clamp (1/2 x 2-1/4" N.C. hex.)

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

10

A34188

END

YOKE - drag link to ctr. arm

1шт.

11

A34192

CLAMP

ASSY. -, Serial Range: yoke-tube

1шт.

12

A30435

KIT

JOINT ASSY. - universal, Includes Ref: 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

CROSS - center (spider)(Order A30435)

1шт.

14

A30766

WASHER - cork

4шт.

15

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435)

4шт.

16

A31149

RING, SNAP

RING - snap, bearing retaining

4шт.

17

A24659

ARM

- steering, center

1шт.

18

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Center arm Hex, 5/8"-18 x 1 3/4", G5

4шт.

19

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

25

A24653

ARM - steering, left hand, tie rods

1шт.

26

A28419

END ASSY.

- cross rod, tie, Includes Ref: 27 and 28

2шт.

27

G46043

COVER

SEAL - dust (rubber), tie rods

1шт.

28

25-139

SLOTTED NUT,9/16"-18, G5

NUT - (9/16" N.F. sltd.), tie rods

1шт.

29

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Tie rods 1/8" x 1"

2шт.

30

A24668

TIE-ROD

ROD - cross (20-1/4" long, solid), tie

1шт.

31

A27080

CLAMP

ASSY. - rod to end, tie

2шт.

32

A24669

TUBE

- cross rod (34-1/2" long), tie

1шт.

33

A20421

CLAMP

- tube, tie rods

2шт.

34

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

Clamp, tie rods Hex, 7/16"-14 x 2 1/4", G5

2шт.

35

92-7

LOCK WASHER,7/16"

tie rods 7/16"

2шт.

36

25-107

NUT,7/16"-14, G5

- (7/16" N.C. hex.), tie rods

2шт.

37

A34798

ARM

- steering, right hand (1st used trac. ser. no. 8305067), tie rods

1шт.

37

A24652

X

ARM - steering, right hand (used prior to trac. ser. no. 8305067)(Order A34798), tie rods

1шт.
