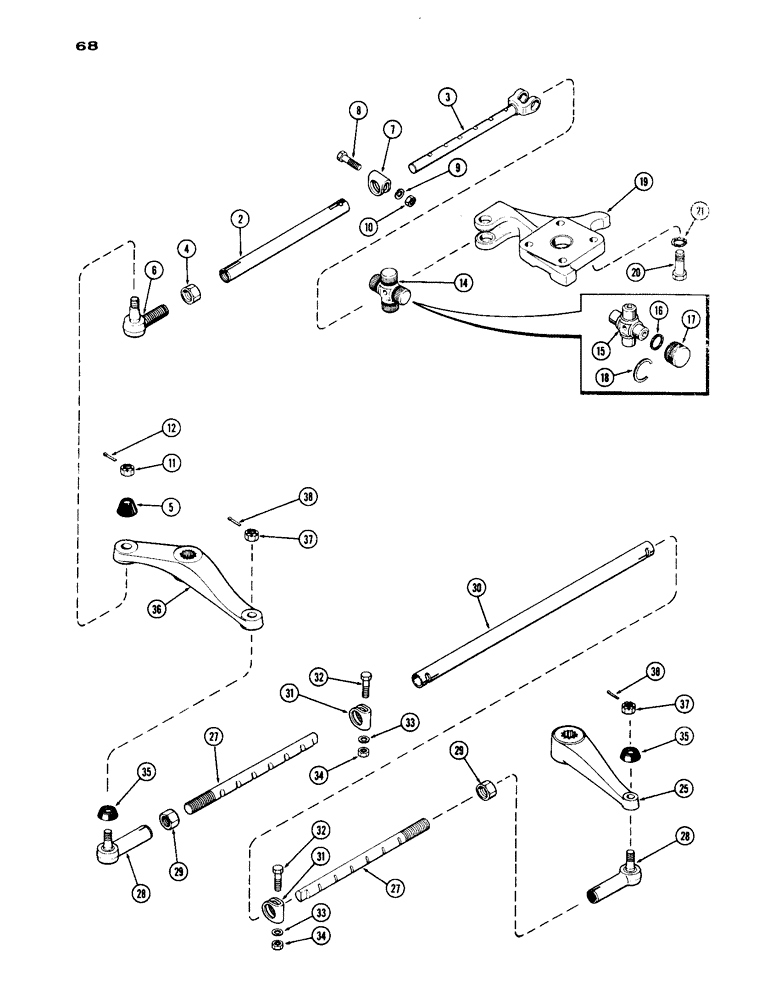

Запчасти Case IH 1030 (068) - DRAG LINKS, GENERAL PURPOSE MODELS, 53" TO 73" AND 60" TO 88", FIRST USED TRACTOR SER. NO. 8332878 (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

LINK ASSY. - drag (20-1/4" to 29-13/16")(Not Illust.) (Used w/A57297 axle )(See Fig. 66)

1шт.

NSS

NOT SOLD SEPARAT

LINK ASSY. - drag (23-1/2" to 36-7/8")(Not Illust.) (Used w/A57304 axle)(See Fig. 66), Includes Ref: 2 - 10

1шт.

2

A41510

TUBE

- drag link (notfched)(15-7/8") (Used w/A57297 axle)(See Fig. 66)

1шт.

2

A41516

TUBE

- drag link (notched)(19-7/64") (Used w/A57304 axle)(See Fig. 66)

1шт.

3

A41513

LINK

- drag, notched (14-1/4") (Used w/A57297 axle)(See Fig. 66)

1шт.

3

A41529

LINK

(Used w/A57304 axle)(See Fig. 66)

1шт.

4

A41511

NUT

- hex., drag link to tube (1"-16 Jam, R.H. th'd)

1шт.

5

A41515

SEAL

- dust (rubber)

1шт.

6

A41512

ROD

END - drag link

1шт.

7

A41561

CLAMP

- tie rod

1шт.

8

114-411

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- hex. hd. (1/2 x 2-1/4" N.F.)

1шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

280963

NUT,Nut, 1/2-20 GR 5 ZND

- hex. (1/2" N.F.)(Grade 8)

1шт.

11

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex. (5/8" N.F. slotted)

1шт.

12

132-50

COTTER PIN,1/8" x 1 1/4"

PIN - cotter (3/16 x 1-1/4")

1шт.

14

A30435

KIT

JOINT ASSY. - universal, Includes Ref: 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

CROSS - center (spider)(Order A30435)

1шт.

16

A30766

WASHER - cork

4шт.

17

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435)

4шт.

18

A31149

RING, SNAP

RING - snap, bearing retaining

4шт.

19

A24659

ARM

- steering, center

1шт.

20

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Center arm Hex, 5/8"-18 x 1 3/4", G5

4шт.

21

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

25

A57279

ARM

- steering, adj. front axle, L.H., tie rods

1шт.

NSS

NOT SOLD SEPARAT

ROD ASSY. - tie (41-9/64" to 61-9/64")(Not Illust.) (Used w/A57297 axle)(See Fig. 66)

1шт.

NSS

NOT SOLD SEPARAT

ROD ASSY. - tie (48-9/64" to 78-9/64")(Not Illust.) (Used w/A57304 axle)(See Fig. 66), Includes Ref: 27 - 35

1шт.

27

A41524

ROD

- notched adj. tie (15-3/4") (Used w/A57297 axle)(See Fig. 66)

2шт.

27

A41522

ROD

- notched adj. tie (19-3/4") (Used w/A57304 axle)(See Fig. 66)

2шт.

28

A41520

END

- tie rod bearing

2шт.

29

A41511

NUT

- tie rod end (1"-16 jam, R.H. th'd)

2шт.

30

A41523

TUBE

- tie rod, adj. front axle (28-13/16") (Used w/A57298 axle)(See Fig. 66)

1шт.

30

A41521

TUBE

- tie rod, adj. front axle (35-13/16") (Used w/A57314 axle)(See Fig. 66)

1шт.

31

A41561

CLAMP

- tie rod

2шт.

32

114-425

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

- clamps (1/2 x 2-1/4" N.F. hex.)(Gr. 8, Z.P.), tie rods

2шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Tie rods 1/2"

2шт.

34

280963

NUT,Nut, 1/2-20 GR 5 ZND

- hex. (1/2" N.F.)(Gr. 8, Z.P.), tie rods

2шт.

35

A41509

SEAL

- end bearing, tie rods

2шт.

36

A57278

ARM

- steering, adj. front axle, R.H., tie rods

1шт.

37

25-139

SLOTTED NUT,9/16"-18, G5

NUT - hex. (9/16" N.F. sltd.), tie rods

2шт.

38

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Tie rods 1/8" x 1"

2шт.
