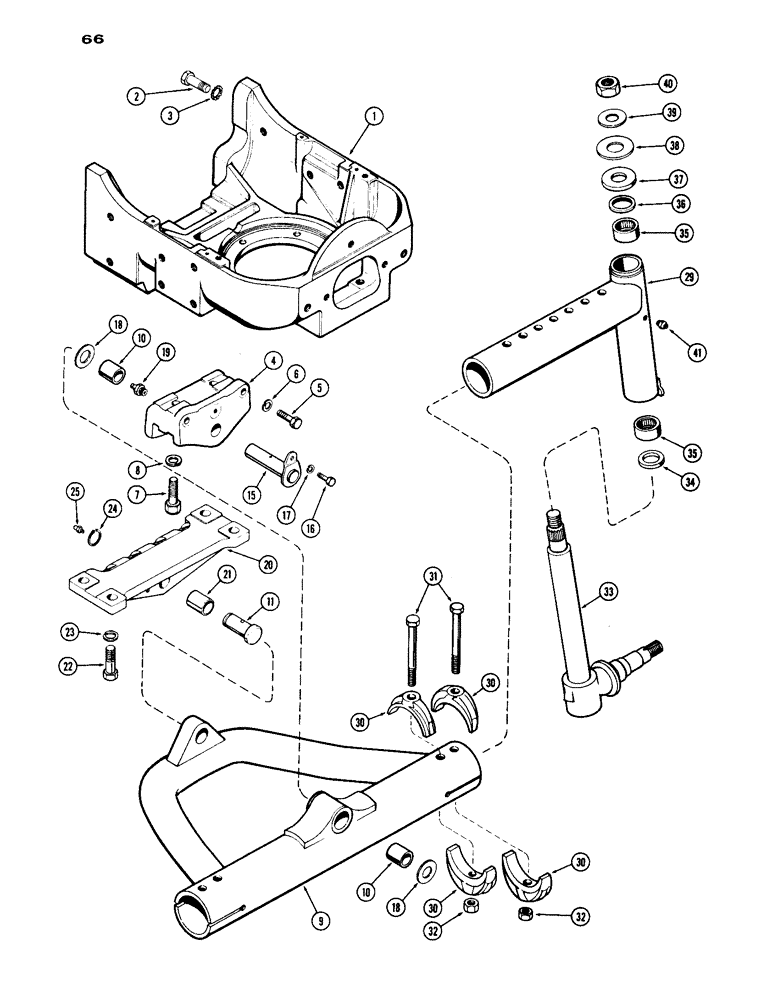

Запчасти Case IH 1030 (066) - FRONT AXLE, GENERAL PURPOSE MODELS, 53" TO 73" AND 60" TO 88", FIRST USED TRACTOR SER. NO. 8332878 (06) - POWER TRAIN

1

A34326

BRACKET - frt. axle & radiator

1шт.

2

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Bracket Hex, 3/4"-10 x 2 1/4", G5

4шт.

3

A34651

LOCK WASHER

- (3/4" ext. skpf.)

4шт.

4

A57296

PEDESTAL - front axle

1шт.

5

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Pedestal Hex, 5/8"-11 x 1 3/4", G5, Full Thd

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Pedestal Hex, 3/4"-10 x 2 1/4", G5

2шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

9

A57297

AXLE ASSY. - center section (33")

1шт.

9

A57304

AXLE ASSY. - center section (40-1/2"), Includes Ref: 10 and 11

1шт.

10

A7841

BUSHING,31.75mm ID x 38.18mm OD x 38.35mm L

- front pivot housing

2шт.

11

A57264

PIN

- radius rod pivot bracket

1шт.

15

A24632

PIN

- pivot, axle, front

1шт.

16

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Front pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

- thrust, front axle & pedestal

2шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45deg.)

1шт.

20

A34327

SUPPORT ASSY. - radius rod, Includes Ref: 21

1шт.

21

A24633

BUSHING,31.7mm ID x 38.18mm OD x 51.16mm L

- radius rod support assy.

1шт.

22

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Support Hex, 3/4"-10 x 2 1/2", G5

4шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

24

A31175

RING, SNAP

SNAP RING - radius rod pivot brkt. pin

1шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

29

A57268

AXLE - extension, adj. front (7 holes) (used w/A57297 axle, center section)

2шт.

29

A57271

AXLE - extension, adj. front (9 holes) (used w/A57304 axle, center section)

2шт.

30

A34684

CLAMP

- axle

8шт.

31

15-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- clamp (3/4 x 8" N.C. hex.)

4шт.

32

25-1612

NUT,3/4"-10, G5, Hvy

- (3/4" N.C. hex.)

4шт.

33

A57274

SPINDLE

- king pin, R.H.

1шт.

33

A57275

SPINDLE - king pin, L.H.

1шт.

34

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, vertical spindle

2шт.

35

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, lower & upper vertical spindle

4шт.

36

A57273

OIL SEAL

- oil, verticle spindle, upper

2шт.

37

A7849

GUARD

SHIELD - dust, vertical spindle

2шт.

38

A24645

SHIM,.0149" Thk

Spindle (#28 gauge), Adj. frt. axle .0149" Thk

1шт.

38

A24643

SHIM,.0359" Thk

Spindle, Adj. frt. axle (#20 gauge) .0359" Thk

1шт.

38

A24642

SHIM,.0598" Thk

Spindle, Adj. frt. axle (16 gauge) .0598" Thk

1шт.

38

A24639

SHIM,.1345" Thk

Spindle, Adj. frt. axle (#10 gauge) .1345" Thk

1шт.

39

A35047

WASHER

- vertical spindle

2шт.

40

129-131

NUT,1 1/8"-12, G5

- wheel spindle (1-1/8" N.F. hex.)

2шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING -grease (1/8" P.T.)

2шт.
