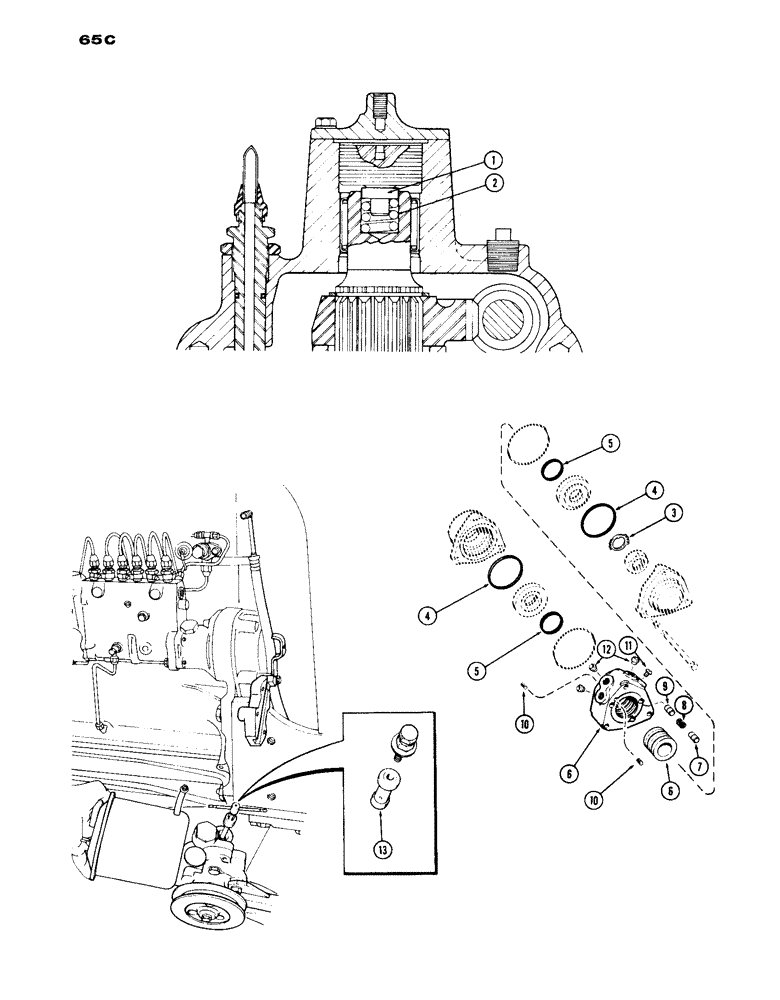

Запчасти Case IH 1030 (065C) - A41809 STABILITY KIT, USED WITH A34623 POWER STEERING GEAR (05) - STEERING

A41809

KIT

- stability (to correct pwr. strg. shimmy)(not illust.), Includes Ref: 1 - 13

1шт.

1

A57912

SEAT - spring

1шт.

2

A34113

SPRING

- tension, power strg. upper spindle

1шт.

3

A8317

LOCK ASSY

LOCKNUT - steering wormshaft

1шт.

4

A57057

O-RING,0.103" Thk x 2.175" ID, -139, Cl 6, 90 Duro

"O" RING - thrust bearing (2-3/16 x 2-3/8 x 3/32")

2шт.

5

A57041

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

"O" RING - thrust bearing (1-1/4 x 1-7/16 x 3/32")

2шт.

6

A57597

VALVE ASSY. - power steering, Includes Ref: 7 - 12

1шт.

7

A33064

PLUNGER - valve centering (drilled)

3шт.

8

A33065

SPRING

- valve centering

3шт.

9

A9475

PLUNGER

- valve centering (solid)

3шт.

10

A33066

ORIFICE - dampening

2шт.

11

A9474

VALVE

- check

1шт.

12

A15233

SEAT

- power steering lines

3шт.

13

A41810

ORIFICE

- tube seat

1шт.
