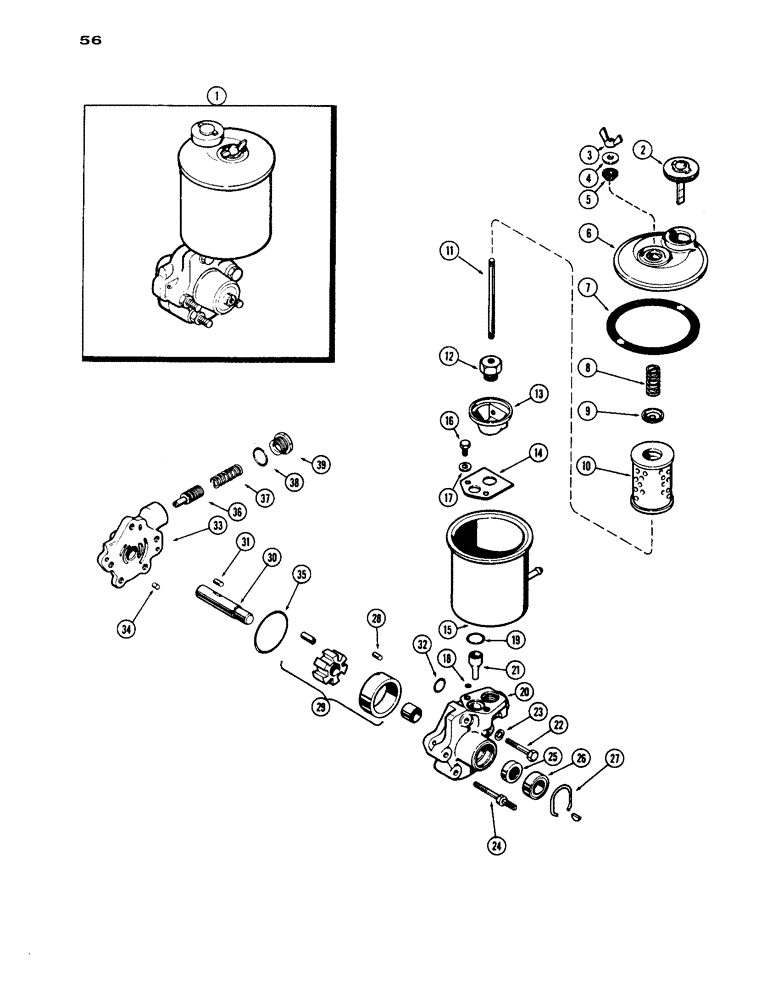

Запчасти Case IH 1030 (056) - POWER STEERING PUMP (05) - STEERING

1

A57914

PUMP ASSY. - (Eaton ER-11114-3) (1st used trac. ser. no. 8342203)

1шт.

1

A57439

PUMP ASSY. - (Eaton ER-11114-2)(Order A57914) (used trac. ser. no., Serial Range: 8322134-8342203)

1шт.

1

A33059

PUMP ASSY. - (Eaton ER-11114-1)(Order A57914) (used priot to trac. ser. no. 8322134), Includes Ref: 2 - 39

1шт.

2

A24137

GAUGE ASSY.

CAP - filler (incl. bavonet gauge)

1шт.

3

129-419

WING NUT,5/16"-18

NUT - cover ret. (5/16" N.C. wing)

1шт.

4

A30831

WASHER

- cover nut (3/8 x 7/8 x 3/32")

1шт.

5

A30830

GASKET

- cover stud

1шт.

6

A24136

COVER ASSY. - reservoir, Includes Ref: 7

1шт.

7

A24138

GASKET

-, Serial Range: cover-reservoir

1шт.

8

A40000

SPRING

- element tension

1шт.

9

A22714

SEAT

- element spring

1шт.

10

A18061

FILTER, ELEMENT

ELEMENT - oil filter

1шт.

11

A40001

DOWEL

STUD - cover retaining

1шт.

12

A20523

STUD

ADAPTER - cover stud & reservoir ret.

1шт.

13

A40268

SUPPORT - str. pump filter

1шт.

14

A18060

PLATE - reinforcement

1шт.

15

A40003

TANK

RESERVOIR - oil

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Reservoir Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

A11026

GASKET

- body (11-32 x 29/64 x 1/16" rubber)

2шт.

19

A11027

GASKET

- body (53/64 x 61/64 x 7/16" rubber)

2шт.

20

A20517

BODY ASSY. - pump, w/bushings, Includes Ref: 21

1шт.

21

A20526

VENTURI

- body

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Body Hex, 3/8"-16 x 2", G5

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

A20527

STUD - body

3шт.

25

A30838

OIL SEAL

- oil

1шт.

26

A30835

BEARING

- pump shaft

1шт.

27

A20524

RING, SNAP

RING - snap, bearing ret.

1шт.

28

A20528

PIN

- impeller cam

1шт.

29

A41319

SEAL ASSY.

IMPELLER KIT - oil (Replaces A20519)

1шт.

30

A20510

SHAFT

- pump

1шт.

31

A30839

AXLE PIN

KEY - impeller

1шт.

32

A20514

O-RING

"O" RING - by-pass port

1шт.

33

A41811

COVER

ASSY. - pump, w/bushings & orifice (used w/A57914 pump)

1шт.

33

A20521

COVER

ASSY. - pump, w/bushings & w/out orifice (used w/A57439 & A33059 pumps)(Order A41811), Includes Ref: 34

1шт.

34

A30836

DOWEL

PIN - cover locating

2шт.

35

A20513

O-RING

"O" RING -, Serial Range: cover-body

1шт.

36

A20516

VALVE

- pressure relief

1шт.

37

A20511

SPRING

- pressure relief valve

1шт.

38

A30837

O-RING

"O" RING - relief valve cap

1шт.

39

A20512

CAP - pressure relief valve

1шт.
