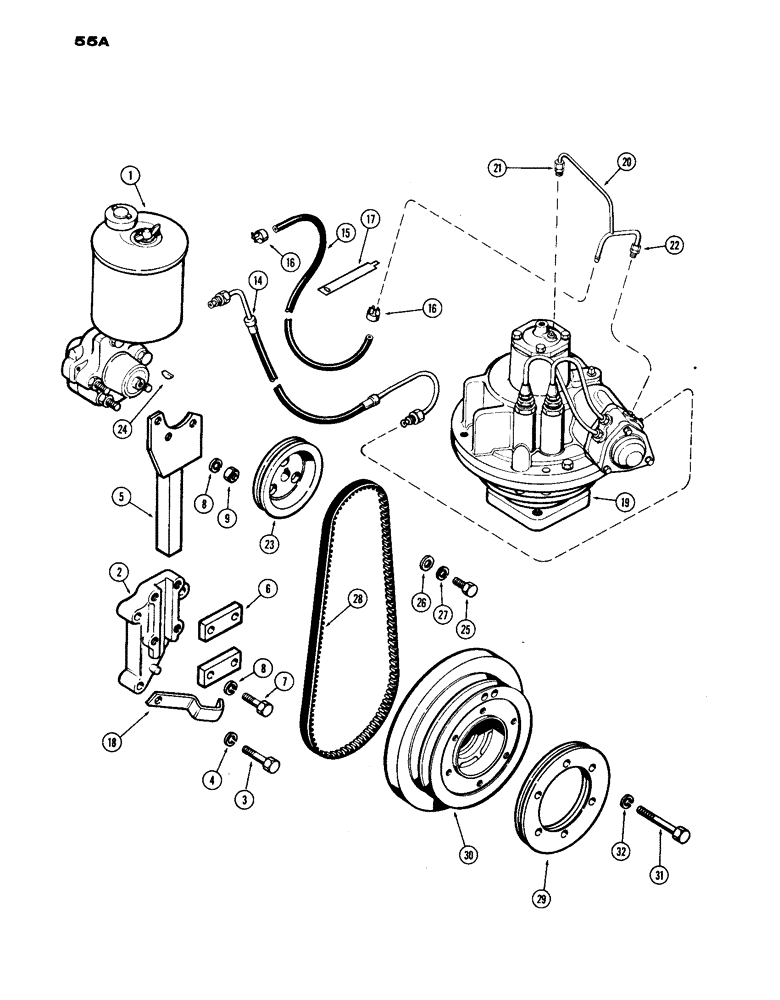

Запчасти Case IH 1030 (055A) - POWER STEERING PUMP ATTACHING PARTS, USED PRIOR TO TRACTOR SERIAL NUMBER 8310335 (05) - STEERING

1

A33059

PUMP ASSY. - power str. (See Fig. 56)

1шт.

2

A34532

BRACKET - pump mounting

1шт.

3

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- pump mtg. brkt. to timing gear cover (3/8 x 3-3/4" N.C. hex.)

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

A34533

SUPPORT - pump

1шт.

6

A34535

STRAP - pump support clamp

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Strap Hex, 3/8"-16 x 2", G5

4шт.

8

92-6

LOCK WASHER,3/8"

7шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- pump studs (3/8" N.F. hex.)

3шт.

14

A57131

HOSE

- pressure, pump to valve (replaces A34536)

1шт.

15

A34364

HOSE ASSY.

HOSE - return, Serial Range: valve-pump

1шт.

16

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

2шт.

17

A22926

CLAMP

- hose (strap type)

1шт.

18

A34537

CLIP - hose retaining

1шт.

19

A33058

GEAR ASSY. - power str. (G.P.)(See Fig. 58)

1шт.

19

A34623

HOUSING

GEAR ASSY. - power str. (West.)(See Fig. 64)

1шт.

20

A23346

TUBE ASSY.

TUBE - air bleed

1шт.

21

222-28

HYD CONNECTOR,5/8"-24 x 3/8" NPTF W/Nut

CONNECTOR - tube (3/8" P.T.)

1шт.

222-104

SLEEVE,3/8" Tube

1шт.

22

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - tube (1/8" P.T.)

1шт.

222-103

SLEEVE,5/16" Tube

1шт.

222-113

TUBE NUT,9/16"-24

1шт.

23

A34358

PULLEY

- power str. pump (1-1/4" wide)

1шт.

24

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Pulley #3, 1/8" x 1/2"

1шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pulley Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

26

A34092

WASHER

- (11/32 x 1 x 3/16")

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

A34359

BELT,54.50" L

Pump Drive 54.50" L

1шт.

29

A34360

PULLEY - pump drive (crankshaft end)

1шт.

30

A60158

PULLEY

- fan drive (on crankshaft) (Replaces A20744 when stock depleted)

1шт.

31

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- pulley (3/8 X 1-3/8" N.C. hex.)

6шт.

32

92-6

LOCK WASHER,3/8"

6шт.
