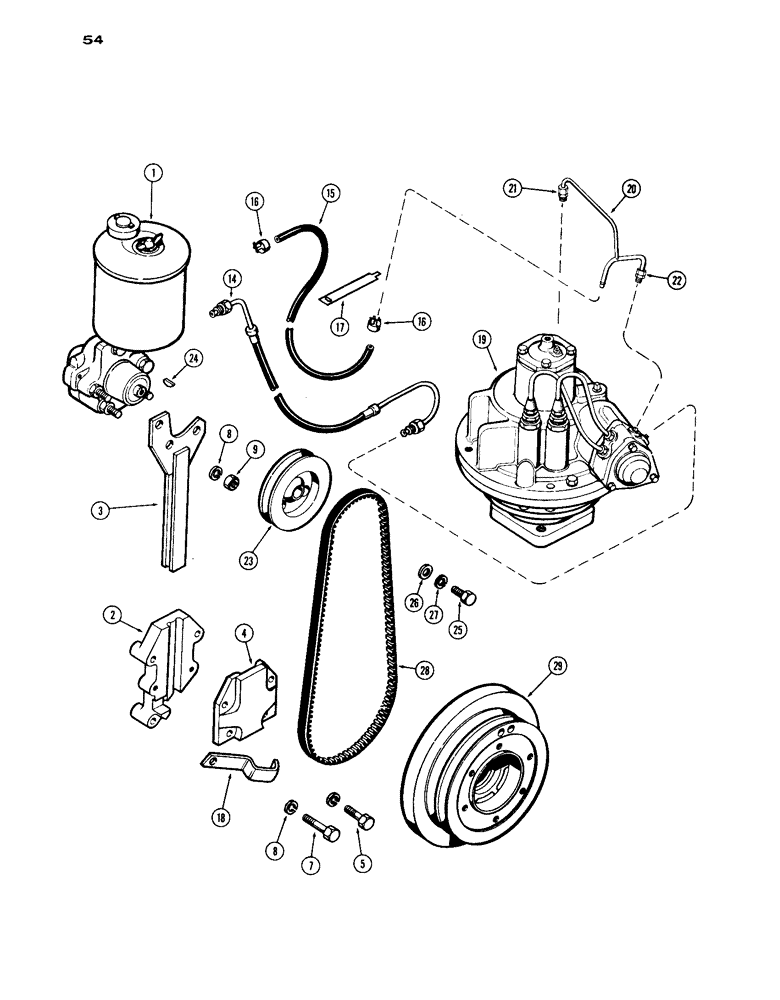

Запчасти Case IH 1030 (054) - POWER STEERING PUMP ATTACHING PARTS, FIRST USED TRACTOR SERIAL NUMBER 8310335 (05) - STEERING

1

A57914

PUMP ASSY. - power steering (See Fig. 56) (1.5 G.P.M.-700 R.P.M.-700 P.S.I.) (1st used trac. ser. no. 8342203)

1шт.

1

A57439

PUMP ASSY. - power steering (See Fig. 56) (1.5 G.P.M.-700 R.P.M.-700 P.S.I.)(Order A57914) (used trac. ser. nos., Serial Range: 8322134-8342203)

1шт.

1

A33059

PUMP ASSY. - steering (See Fig. 56) (1 G.P.M.-700 R.P.M.-500 P.S.I.)(Order A57914) (used prior to trac. ser. no. 8322134)

1шт.

2

A57125

BRACKET - pump mounting

1шт.

3

A51726

SUPPORT - pump

1шт.

4

A57148

STRAP - pump support clamp

1шт.

5

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- strap (3/8 x 1-3/8" N.C. hex.)

2шт.

5

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- mtg. brkt. & strap to timing gear cover (3/8 x 4-1/2" N.C. hex.)

2шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- mtg. brkt. to timing gear cover (3/8 x 4" N.C. hex.)

1шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- pump studs (3/8" N.F. hex.)

3шт.

14

A57131

HOSE

- pressure, Serial Range: pump-valve

1шт.

15

A34364

HOSE ASSY.

HOSE - return, Serial Range: valve-pump

1шт.

16

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

2шт.

17

A22926

CLAMP

- hose (strap type)

1шт.

18

A34537

CLIP - hose retaining

1шт.

19

A33058

GEAR ASSY. - power str. (G.P.)(See Fig. 58)

1шт.

19

A57915

GEAR

ASSY. - power str. (West.)(See Fig. 62) (1st used trac. ser. no. 8347808)

1шт.

19

A34623

HOUSING

GEAR ASSY. - power str. (West.)(see Fig. 64) (used prior to trac. ser. no. 8347808)(Order A57915)

1шт.

20

A23346

TUBE ASSY.

TUBE - air bleed

1шт.

21

222-28

HYD CONNECTOR,5/8"-24 x 3/8" NPTF W/Nut

CONNECTOR - tube (3/8" P.T.)

1шт.

22

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - tube (1/8" P.T.)

1шт.

23

A57132

PULLEY

- power str. pump (7/8" wide)

1шт.

24

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Pulley #3, 1/8" x 1/2"

1шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Pulley Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

26

A34092

WASHER

- (11/32 x 1 x 3/16")

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

A57130

BELT,60.00" L

Pump Drive 60.00" L

1шт.

29

A57124

PULLEY - pump drive (on crankshaft)

1шт.
