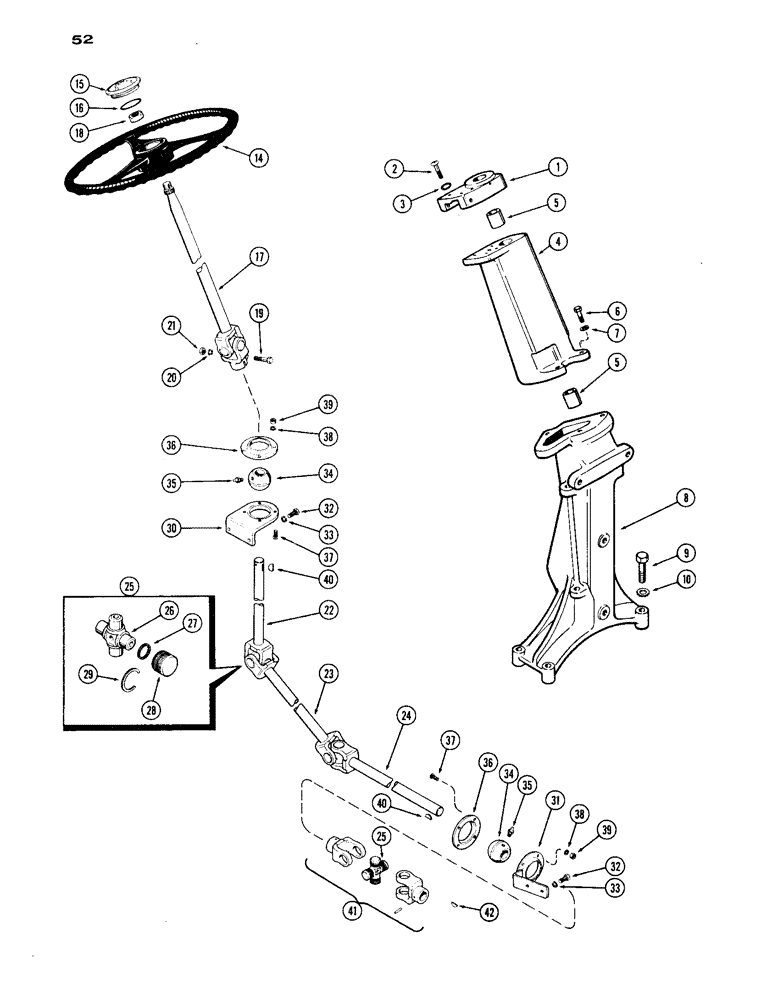

Запчасти Case IH 1030 (052) - STEERING LINKAGE (05) - STEERING

1

A33147

CAP - steering column

1шт.

2

173-254

SCREW,Phil Rnd Hd, 5/16" - 18 x 1 3/4"

- cap to column (5/16 x 1-3/4" N.C., rd.hd.)

3шт.

3

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

3шт.

4

A33266

COLUMN ASSY. - steering, Includes Ref: 5

1шт.

5

A27108

BUSHING

- (1 x 1-1/4 x 1-1/2")

2шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Column to support Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

7

92-8

LOCK WASHER,1/2"

3шт.

8

A34205

SUPPORT - steering column

1шт.

9

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- support (1/2 x 2-1/4" N.C. hex.)

4шт.

10

A34650

LOCK WASHER

- (1/2" ext. skpf.)

4шт.

14

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

15

A35603

CAP

MEDALLION - steering wheel, (replaces A20475)

1шт.

16

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion (2-1/8 x 3-3/4 x 1/8")

1шт.

17

A23915

SHAFT

ASSY. - steering upper, w/universal joint (See item 25)

1шт.

18

25-1512

JAM NUT,Jam, 3/4"-10, G5

- wheel to shaft (3/4" N.F. hex., jam)

1шт.

19

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Upper shaft yoke Hex, 3/8"-16 x 1 3/4", G5

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

22

A25595

SHAFT

- steering, rear (26-1/2" long)

1шт.

23

A25596

SHAFT - steering, center (13-13/16" long)

1шт.

24

A40812

SHAFT - steering, front (24-13/16" long)

1шт.

25

A30435

KIT

JOINT KIT - universal, str. shaft yoke, Includes Ref: 26 - 29

4шт.

26

NSS

NOT SOLD SEPARAT

SPIDER - (center cross)(Order A30435)

1шт.

27

A30766

WASHER - cork

4шт.

28

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435)

4шт.

29

A31149

RING, SNAP

RING - snap, bearing retaining

4шт.

30

A32593

SUPPORT

- rear strg. shaft brg.

1шт.

31

A32594

SUPPORT

- front strg. shaft brg.

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Support Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

A9597

BALL

- steering shaft bearing

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., Straight)

2шт.

36

A8959

RETAINER

FLANGE - ball cap

2шт.

37

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - flange (#10-24 x 3/4" rd. hd.)

8шт.

38

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

39

129-7

NUT,Hex, #10 - 24

- ( hex.) #10-24

8шт.

40

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Str. shaft ends #9, 3/16" x 3/4"

2шт.

41

A7511

JOINT

YOKE ASSY. - steering linkage, front w/universal joint (See item 25)

1шт.

42

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - strg. worm shaft (3/16 x 7/8" Woodruff)

1шт.
