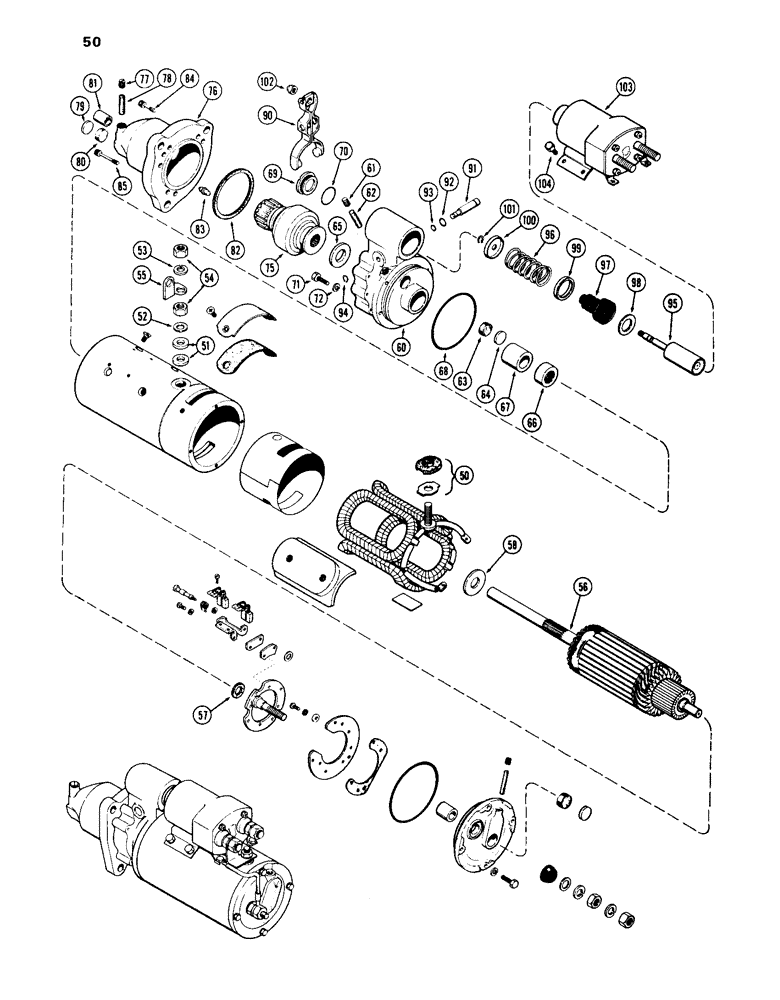

Запчасти Case IH 1030 (050) - STARTER (CONTINUED) (04) - ELECTRICAL SYSTEMS

A34442

STARTER MOTOR

STARTER ASSY. - (CONTINUED FROM FIG. 48)

1шт.

104255A1R

REMAN-STARTER

1030, Reman For New P/N A34442

1шт.

104255A1C

CORE-STARTER

Return Number

1шт.

50

A41925

BUSHING

PACKAGE - field term. stud

1шт.

51

D30005

INSULATOR

- field term. stud, outer

2шт.

52

D30006

WASHER

- field term. stud (flat)

1шт.

53

192-113

LOCK WASHER,1/2"

WASHER - field term. stud ( lock) 1/2"

1шт.

54

129-105

NUT,Hex, 1/2" - 13, Gr 5

Field terminal stud 1/2"-13, G5

2шт.

55

A40894

CONNECTOR, ELEC

CONNECTOR - field term. stud

1шт.

56

A40898

ARMATURE

- starter

1шт.

57

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- armature (at comm. end)

1шт.

58

A40892

WASHER

- arm. spacer (27/32 x 1-23/32 x 3/16")

1шт.

60

D32485

HOUSING

ASSY. - shift lever, Includes Ref: 61 - 67

1шт.

61

221-1041

PLUG

- oil wick hole

1шт.

62

R15023

WICK

- oil (5/16 x 2" felt)

1шт.

63

A41923

PLUG

- oil reservoir (15/16" dia. felt)

1шт.

64

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole (1-1/32" expansion)

1шт.

65

R15145

DISC

WASHER - brake

1шт.

66

R21582

OIL SEAL

- oil (13/16 x 1-3/8 x 13/32")

1шт.

67

R21580

BUSHING

- shift lever hsg.

1шт.

68

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - shift lever hsg.

1шт.

69

R21587

PLUG

- shift lever hsg.

1шт.

70

A41924

GASKET

- plug

1шт.

71

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing to frame Hex, 1/4"-28 x 1", G5

5шт.

72

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

75

A42397

DRIVE

ASSY. - bendix

1шт.

76

A41926

HOUSING

ASSY. - drive end, Includes Ref: 77 - 81

1шт.

77

221-1041

PLUG

- oil wick hole

1шт.

78

R15023

WICK

- oil (5/16 x 2" felt)

1шт.

79

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole (1-1/32" expansion)

1шт.

80

A41923

PLUG

- oil reservoir (15/16" dia. felt)

1шт.

81

A40893

BUSHING

- drive end hsg. (5/8 x 3/4 x 25/32")

1шт.

82

R21562

GASKET

- drive end hsg.

1шт.

83

NSS

NOT SOLD SEPARAT

PIN - drive end hsg. locating

1шт.

84

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end hsg. (Short)

1шт.

85

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive end hsg. (Long)

5шт.

90

D32547

LEVER

ASSY. - shifter

1шт.

91

A42199

PIN

STUD - shift lever pivot

1шт.

92

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - stud (large)

1шт.

93

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - stud (small)

1шт.

94

A40422

RING

-snap, stud retaining

1шт.

95

A42309

PLUNGER

- solenoid core

1шт.

96

A41242

SPRING

- plunger return

1шт.

97

A42308

BOOT

- plunger

1шт.

98

A41922

WASHER

SEAT - boot

1шт.

99

R21572

RETAINER

SEAT - spring (at solenoid end)

1шт.

100

R21571

RETAINER

SEAT - spring (at lever end)

1шт.

101

A40422

RING

- snap, plunger retaining

1шт.

102

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger to lever

1шт.

103

A25430

SOLENOID

ASSY. - (See Fig. 51A)

1шт.

104

R15139

WASHER

SCREW - solenoid mounting

4шт.
