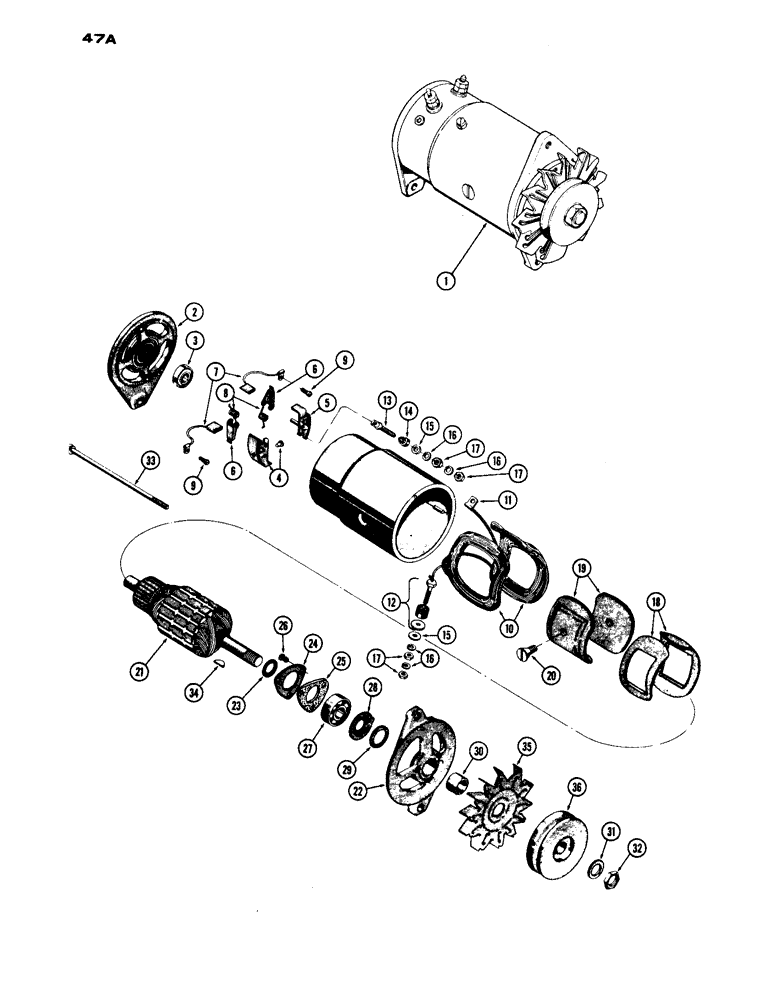

Запчасти Case IH 1030 (047A) - A57751 GENERATOR, USED WITH CAB (04) - ELECTRICAL SYSTEMS

1

A57751

GENERATOR ASSY. (Delco-Remy #1102344), Includes Ref: 2 - 34

1шт.

2

A41613

HOUSING ASSY. - commutator end

1шт.

3

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

4

A40703

NOZZLE HOLDER

HOLDER ASSY. - ground brush

1шт.

5

A40704

NOZZLE HOLDER

HOLDER ASSY. - insulated brush

1шт.

6

R15090

ARM

- brush

2шт.

7

R4286

BRUSH, COMMUTATOR

BRUSH

2шт.

8

R16161

VALVE SPRING

SPRING - brush pressure

2шт.

9

173-233

SCREW - brush lead (#6-32 x 1/4" rd. hd.)

2шт.

10

A41611

COIL ASSY. - field

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP - armature terminal

1шт.

12

A40702

STUD

ASSY. - field terminal

1шт.

13

A40701

STUD

- armature terminal

1шт.

14

R16147

BUSHING

- insulation, armature term.

1шт.

15

A41927

WASHER

- plain, term. studs

2шт.

16

192-17

LOCK WASHER,#12

Washer, Lock, , Terminal stud #12

4шт.

17

129-18

NUT,#12-24

- terminal studs (#12 N.C. Hex.)

4шт.

18

A25447

ISOLATOR

INSULATION - field coil

2шт.

19

A40736

SHOE - pole

2шт.

20

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes (3/8 x 5/8" N.F. flat hd.)

2шт.

21

A41610

ARMATURE ASSY.

1шт.

22

A41612

HOUSING ASSY. - drive end

1шт.

23

R15100

WASHER - drive housing

1шт.

24

R15101

PLATE

- bearing retainer

1шт.

25

R16170

GASKET

- bearing retainer plate

1шт.

26

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- bearing plate retaining

3шт.

27

A25441

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

28

R16169

LARGE PLATE

PLATE - retainer, felt washer

1шт.

29

R16168

WASHER

- felt, drive housing

1шт.

30

R16166

BUSHING

COLLAR - drive housing spacer

1шт.

31

192-116

WASHER, LOCK

WASHER - lock, pulley nut

1шт.

32

A25546

NUT

- pulley & fan retainer

1шт.

33

R15106

BOLT

- thru

2шт.

34

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

35

A57754

FAN

- ventilation

1шт.

36

A57757

PULLEY - generator drive (w/1 groove)

1шт.
