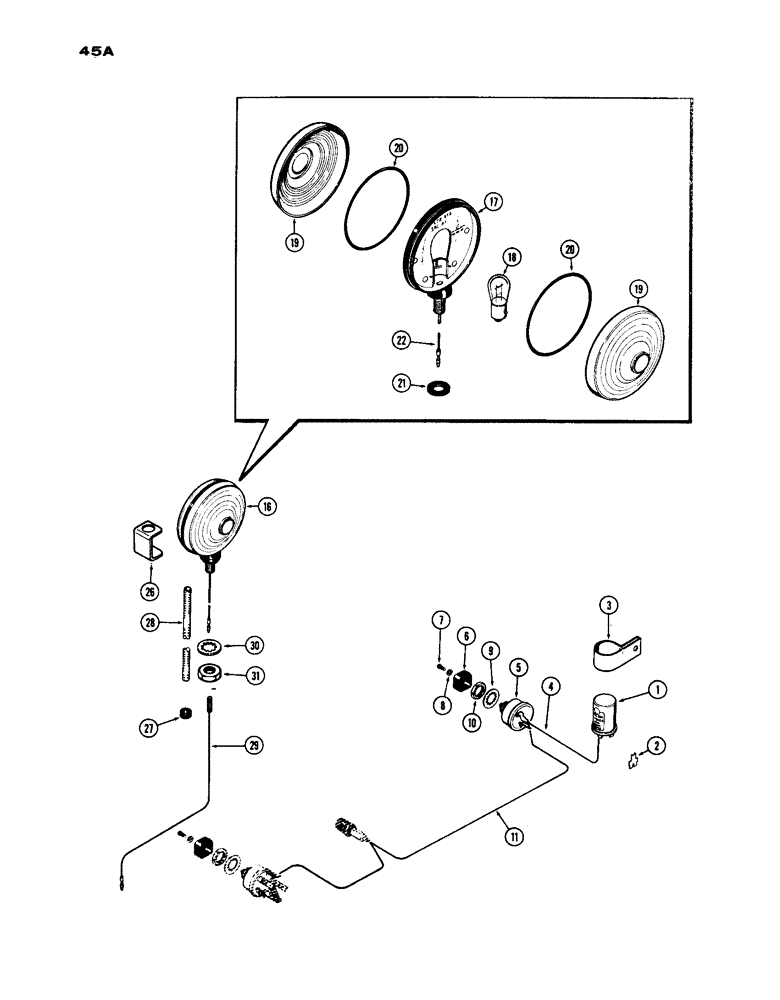

Запчасти Case IH 1030 (045A) - FLASHING WARNING LAMP (04) - ELECTRICAL SYSTEMS

1

A34867

FLASHER UNIT

FLASHER - (12 volt)

1шт.

2

A34862

KIT

ADAPTER KIT - flasher by-pass (required for steady light)

1шт.

3

A34868

CLAMP

BRACKET - flasher mounting

1шт.

4

A34861

WIRE - flasher to switch (8" long)

1шт.

5

A34866

SWITCH

- flasher light

1шт.

6

A20465

KNOB

- flasher switch

1шт.

7

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob ret.

1шт.

8

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Knob screw #8

1шт.

9

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - switch ret. (5/8" int. skpf.)

1шт.

10

A20467

NUT

- switch ret.

1шт.

11

A34865

WIRE - flashng switch to fuse holder & light switch

1шт.

16

A34853

LAMP

ASSY. - warning, Includes Ref: 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A34853)

1шт.

18

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

19

A41261

LENS

- lamp

2шт.

20

NLS

NO LONGER SERVICED

"O" RING - lamp

2шт.

21

A41263

GASKET - lamp

1шт.

22

A41260

WIRE - lamp

1шт.

26

A22880

CLIP

- wire (Western only)

1шт.

27

A27338

GROMMET

- wire (in fender)(G.P. only)

1шт.

28

A27208

LOOM - wire (1/4" I.D. x 15-1/4")(G.P. only)

1шт.

29

A34889

WIRE - harness to lamp (47" long)(G.P. only)

1шт.

29

A34858

WIRE - harness to lamp (68" long)(West. only)

1шт.

30

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - (1/2" int. skpf.)

1шт.

31

129-125

NUT,1/2"-20, G5

1шт.
