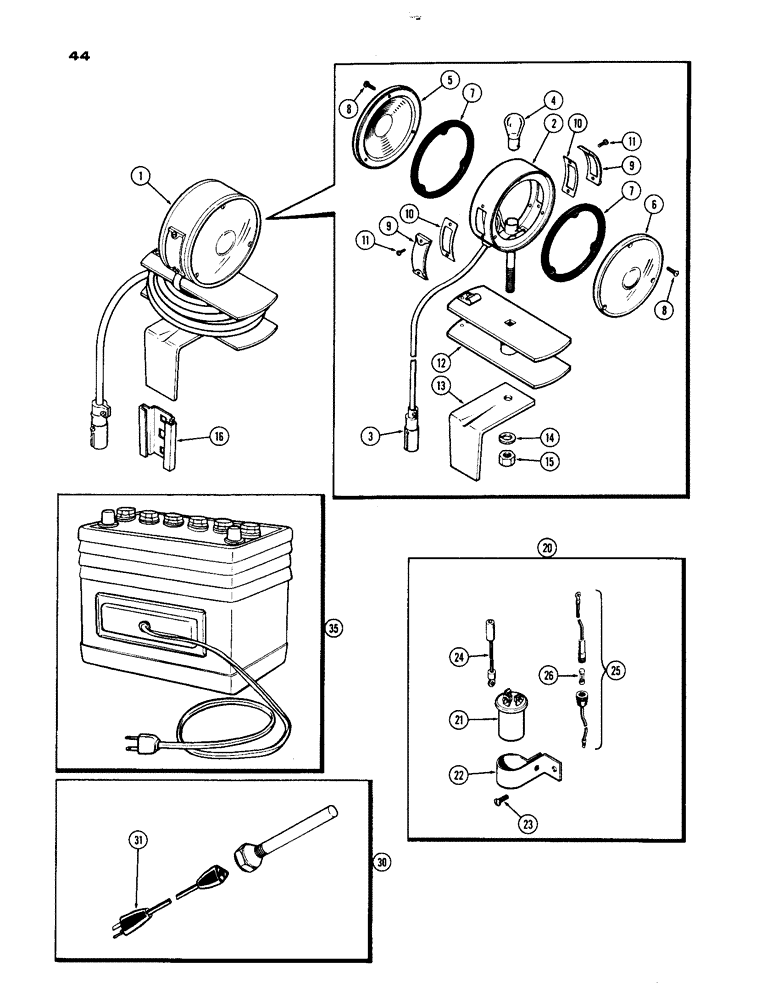

Запчасти Case IH 1030 (044) - ELECTRICAL ACCESSORIES, WARNING LAMP (04) - ELECTRICAL SYSTEMS

A11066M

LAMP ATTACHMENT - warning, Includes Ref: 1 - 16

1шт.

1

NS

NOT SERVICED

LAMP ASSY. - (Order A11066M), Includes Ref: 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - w/cord (Order A11066M)

1шт.

3

B50259

PLUG

- (to auxiliary socket)

1шт.

4

33686

BULB

- lamp (21 C.P.)

1шт.

5

B50337

LENS

- lamp (amber)

1шт.

6

B53962

LENS

- lamp (red)

1шт.

7

B50317

GASKET - lens

2шт.

8

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens (#6 x 1/2" N.C., rd. hd.)

6шт.

9

B50328

LENS - lamp, side (clear)

2шт.

10

B50329

GASKET - side lens

2шт.

11

182-43

SCREW - side lens (#6 x 5/16" N.C., rd. hd.)

4шт.

12

B50330

SPOOL - lamp cord reel

1шт.

13

B50331

BRACKET - lamp mounting

1шт.

14

92-7

LOCK WASHER,7/16"

1шт.

15

25-117

NUT,7/16"-20, G5

- (7/16" N.F. hex.)

1шт.

16

A8179

SOCKET

- lamp positioning

1шт.

20

A22630M

FLASHER ATTACHMENT, Includes Ref: 21 - 26

1шт.

21

A22627

LIGHT, WARNING

UNIT - flasher

1шт.

22

A22626

BRACKET - flasher unit mounting

1шт.

23

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- bracket (#10-1/2" N.C., rd. hd.), flasher

1шт.

24

A22628

WIRE - flasher to auxiliary socket

1шт.

25

A22629

WIRE ASSY. - flasher to power, Includes Ref: 26

1шт.

26

223-4

FUSE,4 Amp, Type 3AG

- flasher (4 amp.)

1шт.

30

A40476

HEATER

ASSY. - cylinder block, Includes Ref: 31

1шт.

31

A40477

ELECTRICAL WIRE

CORD - heater, block

1шт.

35

M20509

HEATER

- side mounted (60 Watt-110 volt), battery

1шт.
