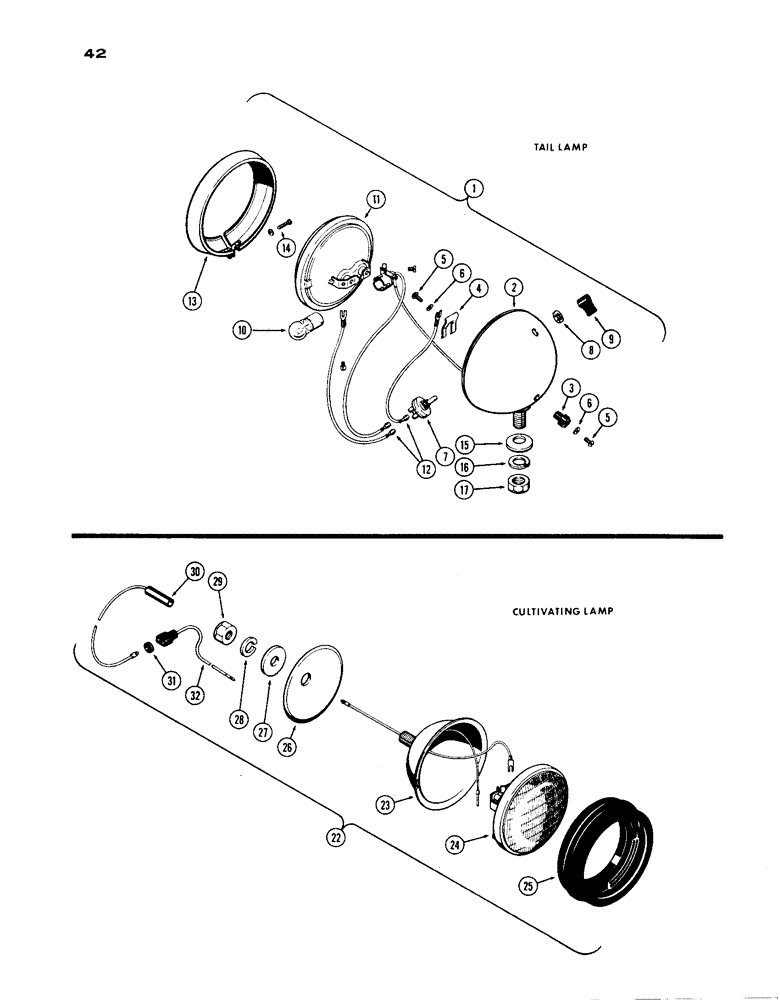

Запчасти Case IH 1030 (042) - LAMPS, TAIL AND WARNING LAMP, STANDARD EQUIPMENT (04) - ELECTRICAL SYSTEMS

1

A20965

LAMP BASE

LAMP ASSY. - combination, tail & warning, Includes Ref: 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - (Order A20965)

1шт.

3

B50293

TERMINAL CONNECTOR

TERMINAL KIT - lamp, Includes Ref: 4 - 6

1шт.

4

10927

SPRING

- lock, terminal

1шт.

5

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- terminal

2шт.

6

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, , Terminal screw Ext Tooth, #6

2шт.

7

B50275

SWITCH

ASSY. - tail or warning

1шт.

8

B50224

SPECIAL NUT

- switch retaining

1шт.

9

B50310

SWITCH

KNOB - switch control

1шт.

10

B50223

BULB

- warning light (15 C.P.)

1шт.

11

A40855

LAMP BASE

LAMP ASSY. - sealed beam unit

1шт.

12

B50273

WIRE - lamp, inner

2шт.

13

B50255

MOLDING

- lamp

1шт.

14

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding tension

1шт.

15

10923

WASHER

- bearing, lamp stud

1шт.

16

92-8

LOCK WASHER,1/2"

lamp stud 1/2"

1шт.

17

25-118

NUT,1/2"-20, G5

- lamp stud (1/2" N.C. hex.)

1шт.

A33254M

LAMP ATTACHMENT, Includes Ref: 22 - 31

1шт.

22

A32536

LAMP

ASSY. - (fender mounted), cultivating, optional equip. for std., Includes Ref: 23 - 25

2шт.

23

NSS

NOT SOLD SEPARAT

BODY ASSY. - w/wire (Order A32536), cultivating lamp, optional equipment for std. fenders only

1шт.

24

D33182

LAMP

ASSY. - sealed beam unit, cultivating, optional equipment for std. fenders only

1шт.

25

D31441

RETAINER

RING - lamp cushion & mtg., cultivating, optional equipment for std. fenders only

1шт.

26

A32537

WASHER

- lamp mounting, cultivating, optional equipment for std. fenders only

2шт.

27

195-33

WASHER,1/2"

- (17/32 x 1-1/16 x 3/32"), cultivating lamp, optional equipment for std. fenders only

2шт.

28

92-8

LOCK WASHER,1/2"

cultivating lamp, optional equipment for std. fenders only 1/2"

2шт.

29

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.), cultivating lamp, optional equipment for std. fenders only

2шт.

30

A32538

WIRE - lamp connector, cultivating, optional equipment for std. fenders only

2шт.

31

A27338

GROMMET

- lamp wire, cultivating, optional equipment for std. fenders only

2шт.

32

A32640

WIRE - lamp, cultivating, optional equipment for std. fenders only

1шт.
