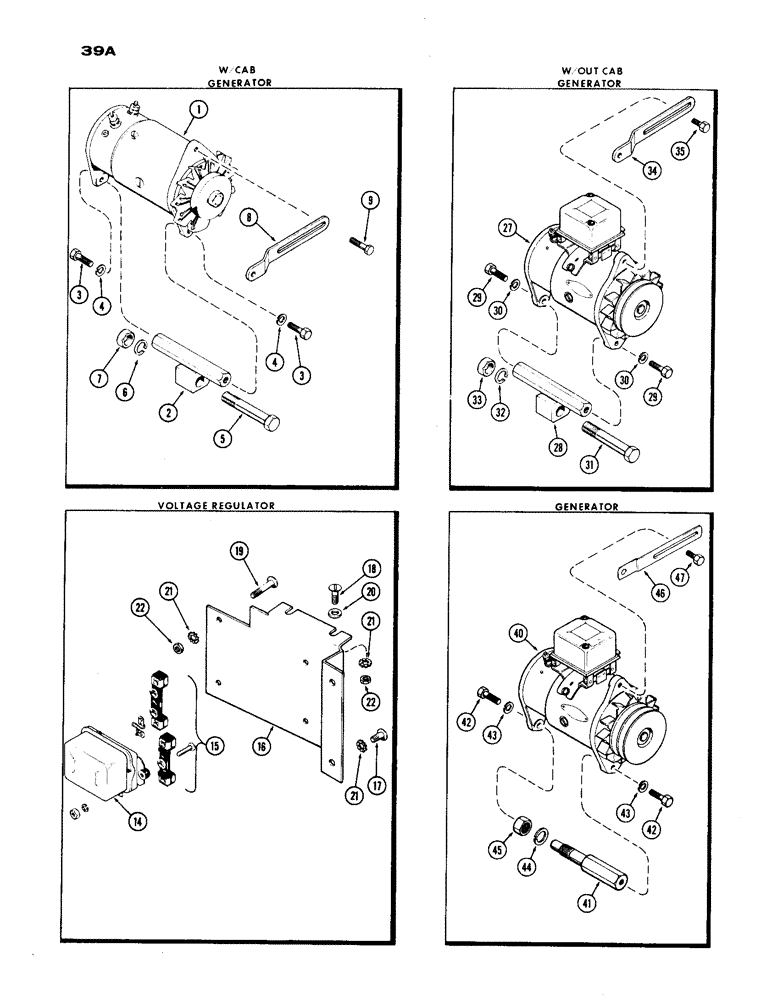

Запчасти Case IH 1030 (039A) - ELECTRICAL EQUIPMENT HARDWARE, USED WITH CAB (04) - ELECTRICAL SYSTEMS

1

A57751

GENERATOR ASSY.

1шт.

2

A57763

CARRIER - gen. mounting (7" long)

1шт.

3

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- gen. to carrier (3/8 x 2" N.F. hex.)

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Carrier Hex, 3/4"-10 x 4 1/2", G5

1шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

7

25-1012

NUT,3/4"-10, G5

1шт.

8

A57121

STRAP - generator adjusting

1шт.

9

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - strap to gen. (5/16 x 3/4" N.C. sems)

1шт.

14

A57752

REGULATOR

ASSY. - voltage (40 amp.)

1шт.

15

D32596

MOUNTING PARTS

MOUNTING KIT - reg. shock absorber

1шт.

16

A57765

PLATE - regulator mounting

1шт.

17

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- plate, side (1/4 x 1/2" N.C., truss hd.)

2шт.

18

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- plate, top (1/4 x 3/4" N.C., truss hd.)

2шт.

19

175-443

SCREW - plate, vol. reg. (1/4 x 1-1/4" N.C., truss hd.)

4шт.

20

195-517

WASHER,1/4"

- ( flat) 1/4"

2шт.

21

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

12шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

27

A57119

X

GENERATOR ASSY. - w/single pulley (See Page 47) (1st used trac. ser. no. 8310335), used without cab

1шт.

28

A57359

CARRIER - gen. mtg. (6-7/64" long) (1st used trac. ser. no. 8310335), used without cab

1шт.

29

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- carrier (3/8 x 2" N.F. hex.), used without cab

2шт.

30

92-6

LOCK WASHER,3/8"

used without cab 3/8"

2шт.

31

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

Carrier, used without cab Hex, 3/4"-10 x 4", G5

1шт.

32

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Used without cab 3/4"

1шт.

33

25-1012

NUT,3/4"-10, G5

Used w/o Cab 3/4"-10, G5

1шт.

34

A57121

STRAP - gen. adj. (1st used trac. ser. no. 8310335), used without cab

1шт.

35

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - strap to gen. (5/16 x 3/4" N.C. sems), used without cab

1шт.

40

A33983

GENERATOR

ASSY. - w/double pulley (See Page 47) (used prior to trac. ser. no. 8310335), used without cab

1шт.

41

A34887

CARRIER

- gen. mtg. (tapped for 2" bolts) (used prior to trac. ser. no. 8310335), used without cab

1шт.

41

A22685

X

CARRIER - gen. mtg. (tapped for 1" bolt) (used prior to eng. ser. no. 2147398), used without cab

1шт.

42

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- carrier (3/8 x 1" N.F. hex.) (used w/A22685 carrier), used without cab

2шт.

42

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- carrier (3/8 x 2" N.F.hex.) (used w/A34887 carrier), used without cab

2шт.

43

92-6

LOCK WASHER,3/8"

used without cab 3/8"

2шт.

44

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Used without cab 3/4"

1шт.

45

25-1112

NUT,3/4"-16, G5

- carrier (3/4" N.F. hex.), used without cab

1шт.

46

A34548

STRAP

- gen. adj. (used w/A33983 Gen.) (used prior to trac. ser. no. 8310335), without cab

1шт.

47

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - strap to gen. (5/16 x 3/4" N.C. sems), used without cab

1шт.
