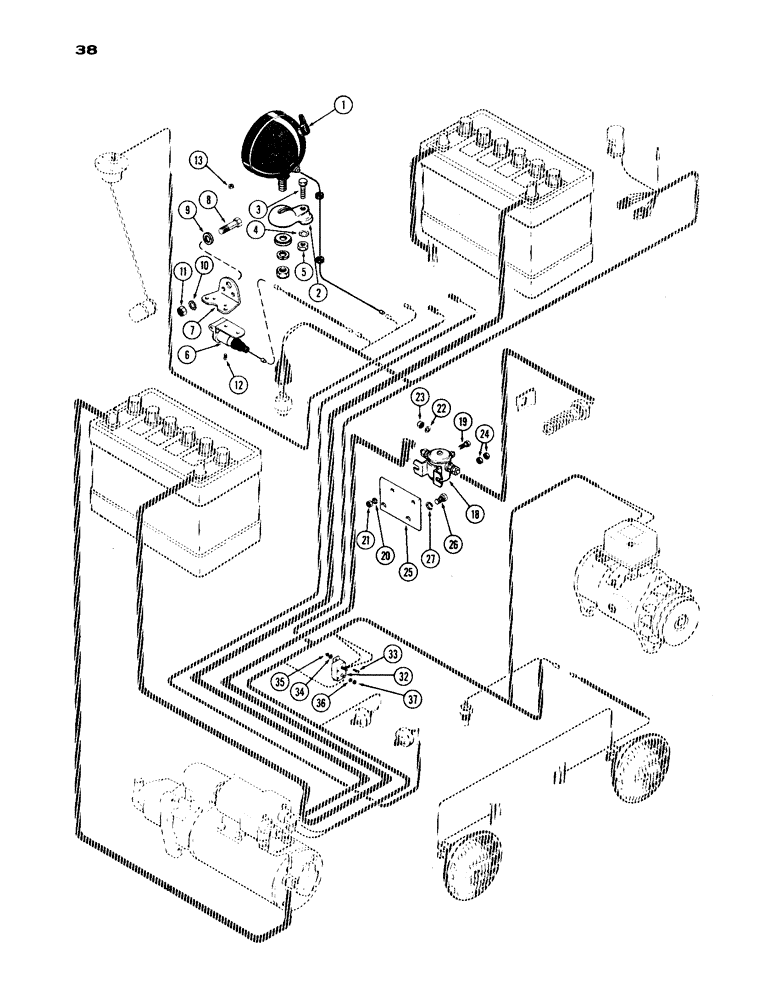

Запчасти Case IH 1030 (038) - ELECTRICAL EQUIPMENT HARDWARE (04) - ELECTRICAL SYSTEMS

1

A20965

LAMP BASE

LAMP ASSY. - tail & flood (See Fig. 42)

1шт.

2

A34046

BRACKET

- tail lamp mounting

1шт.

3

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Bracket Hex, 5/16"-18 x 2 1/2", G5

1шт.

4

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

1шт.

6

A8170

SOCKET

ASSY. - auxiliary outlet

1шт.

7

A27752

BEARING

BRACKET - auxiliary socket mounting

1шт.

8

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

9

195-103

WASHER,5/16"

- (3/8 x 7/8 x 5/64")

2шт.

10

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- socket to brkt. (#10 x 1/2" N.F. rd.hd.)

2шт.

13

193-1000

NUT,Keps, w/LW,#10-32

- (#10 N.F. Keps)

2шт.

18

A21481

SOLENOID

- heater (can use A57069)

1шт.

19

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Solenoid Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Solenoid term. 5/16"

2шт.

23

86637933

JAM NUT,5/16" - 24, Gr 5

Solenoid terminal Jam, 5/16"-24, G5

2шт.

24

193-1000

NUT,Keps, w/LW,#10-32

- solenoid term. (#10 N.F. hex.)

2шт.

25

A34047

PLATE ASSY.

PLATE - solenoid mounting

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Plate Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

32

A22877

BREAKER,40A

- circuit

1шт.

33

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- circuit breaker (#8 x 1/2" N.C. rd.hd.)

2шт.

34

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - (#8 ext. skpf.)

2шт.

35

129-6

NUT,#8-32

2шт.

36

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

37

129-27

NUT,Hex, #10 - 32

- term. stud (#10 N.F. hex.)

2шт.
