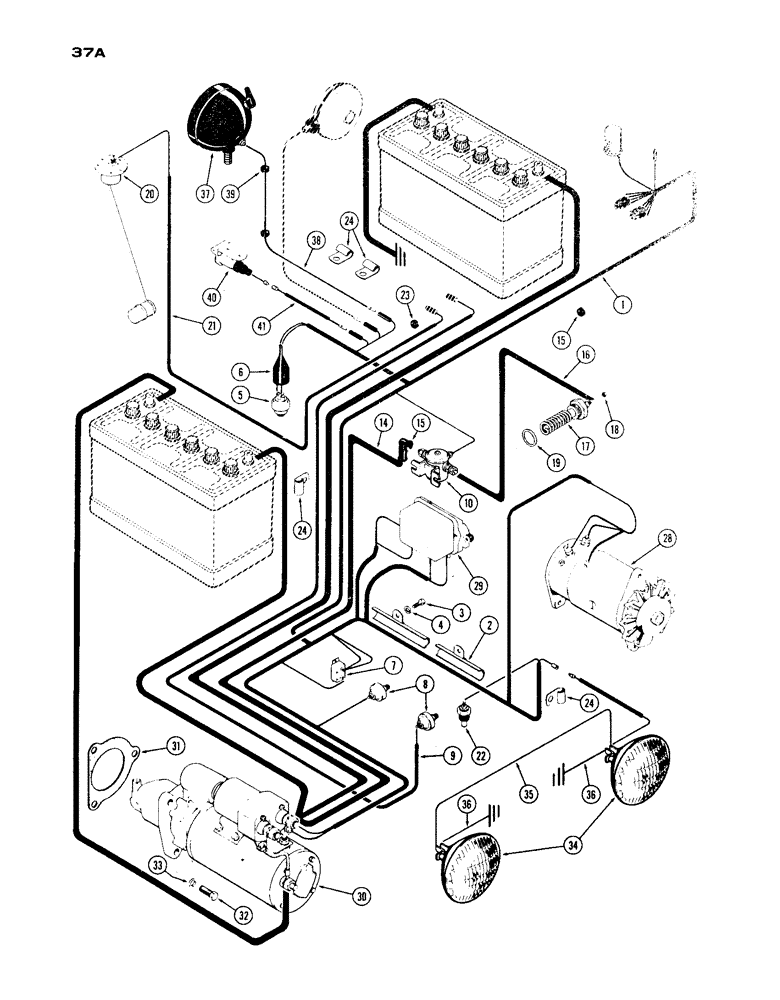

Запчасти Case IH 1030 (037A) - ELECTRICAL EQUIPMENT AND WIRING, USED WITH CAB (04) - ELECTRICAL SYSTEMS

1

A57964

HARNESS ASSY. - wire, main (w/tail lamp connector) (1st used trac. ser. no. 8347113)

1шт.

1

A57818

HARNESS ASSY. - wire, main (w/out tail lamp connector) (used prior to trac. ser. no. 8347113)

1шт.

2

A28674

CONDUIT - wire harness

1шт.

3

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Conduit Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

A20990

SWITCH

- safety, neutral start

1шт.

6

A20991

BOOT

- switch weather cap

1шт.

7

A22877

BREAKER,40A

- circuit

1шт.

8

A13794

TRANSMITTER

SENDER - fuel & oil pressure switches

2шт.

9

A24094

WIRE ASSY. - fuel pressure sender (56" long)

1шт.

A34080

LOOM - fuel pressure sender wire (4" long)(not illust.)

1шт.

10

A57069

SOLENOID

- heater (replaces A21481)

1шт.

14

A34450

CABLE - starter sol. to heater (27" long)

1шт.

15

A21753

CAP

BOOT - cable (at heater sol. term)

1шт.

16

A21485

CABLE

- heater sol. to manifold heater (23" long)

1шт.

17

A37775

HEATER

ASSY. - manifold, Includes Ref: 18

1шт.

18

129-503

NUT,1/4"-20, Brass

Heater terminal 1/4"-20, Brass

1шт.

19

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

20

A24004

SENDER UNIT

SENDING UNIT - fuel guage

1шт.

21

A24095

WIRE - fuel sending unit (92" long)

1шт.

22

A13795

SENDER UNIT

SENDER - engine temperature (used w/A57889 gauge) (1st used trac. ser. no. 8347480)

1шт.

22

A21462

SENDER UNIT

SENDER - engine temperature (used w/A24080 gauge) (used prior to trac. ser. no. 8347480)

1шт.

23

A27519

GROMMET

- harness (in hood supt.)(1-1/64" I.D.)

3шт.

24

A37179

CLIP

- wires & harness

1шт.

28

A57751

GENERATOR ASSY. - (Delco-Remy #1102344) (40 amp.)(See Fig. 47A)(less fan & pulley)

1шт.

29

A57752

REGULATOR

ASSY. - voltage

1шт.

30

A34442

STARTER MOTOR

STARTER ASSY. (See Fig. 48)

1шт.

30

104255A1R

REMAN-STARTER

1030, Reman For New PN A34442

1шт.

30

104255A1C

CORE-STARTER

Return Number

1шт.

31

A27933

GASKET

- starter

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Starter Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

32

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- starter (1/2 x 3" N.C. hex.)

1шт.

33

92-8

LOCK WASHER,1/2"

3шт.

34

A24572

LAMP

ASSY. - head (sealed beam unit)(See Fig. 43A)

2шт.

35

A34451

WIRE ASSY. - head lamps

1шт.

36

A33439

WIRE - head lamps, ground (12" long)

2шт.

37

A20965

LAMP BASE

LAMP ASSY. - tail & flood (See Fig. 42)

1шт.

38

A32539

WIRE - tail lamp (68" long)(used w/std. fenders)

1шт.

38

A34603

WIRE - tail lamp (80" long)(used w/Western fenders)

1шт.

39

A27338

GROMMET

- tail lamp wire (3/8" I.D.)

2шт.

40

A8170

SOCKET

ASSY. - auxiliary outlet

1шт.

41

A34809

WIRE - auxiliary socket (37-1/2" long)(Replaces A32531)

1шт.
