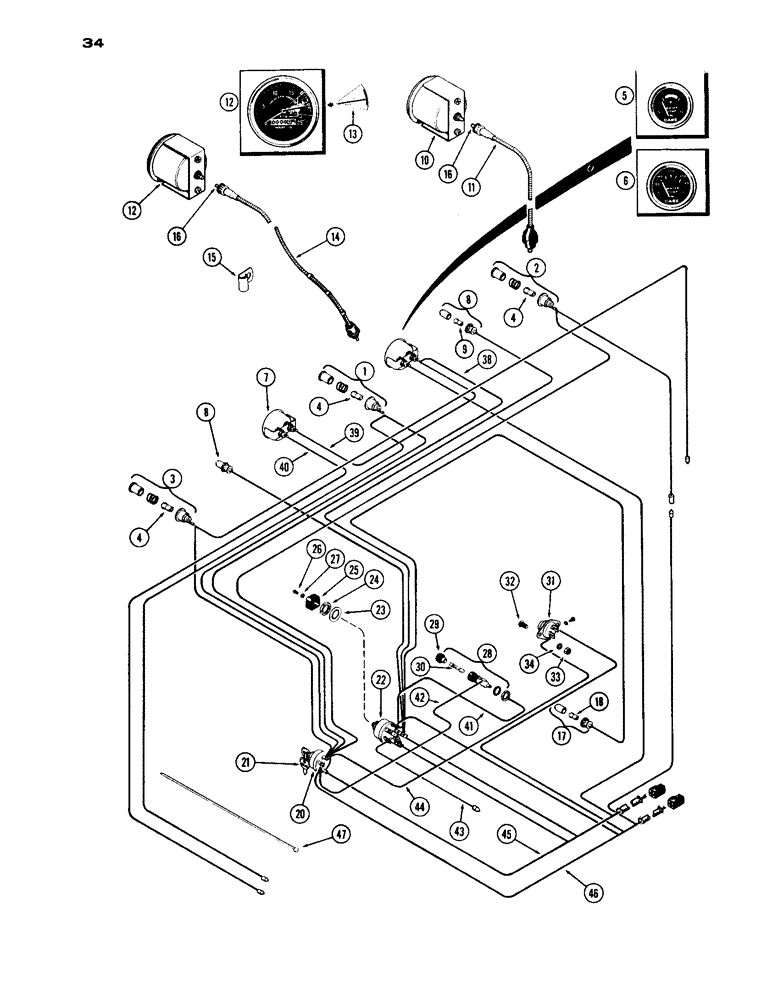

Запчасти Case IH 1030 (034) - INSTRUMENTS AND WIRING (04) - ELECTRICAL SYSTEMS

1

A24083

LAMP

ASSY. - warning, fuel pressure (incl. item 4)

1шт.

2

A24085

LAMP

ASSY. - warning, generator (incl. item 4)

1шт.

3

A24084

LAMP

ASSY. - warning, oil pressure (incl. item 4), Includes Ref: 4

1шт.

4

A24354

BULB

- warning lamps (red)

1шт.

5

A57889

GAUGE

GUAGE ASSY. - eng. temp. (color coded) (1st used trad. ser. no. 8347480)(used w/A13795 sender)

1шт.

6

A24080

GAUGE

GUAGE ASSY. - eng. temp. (not coded)(used w/A21462 sender) (used prior to trac. ser. no. 8347480)

1шт.

7

A24079

GAUGE ASSY.

GUAGE ASSY. - fuel

1шт.

8

A24087

LAMP BASE

LAMP ASSY. - instrument panel, Includes Ref: 9

2шт.

9

A22349

BULB

- inst. panel lamp

1шт.

10

A32146

TACHOMETER

SPEEDOMETER ASSY. - tractor

1шт.

11

A33299

CABLE

ASSY. - speedometer, w/core (42" long)(See item 14)

1шт.

12

A57179

TACHOMETER

ASSY. - tractor (replaces A32143)

1шт.

13

A42190

DECAL KIT - full load range

1шт.

14

A24101

CABLE

ASSY. - tachometer, w/core (38" long)(See item 11)

1шт.

15

A22880

CLIP

- tractor meter cable

1шт.

16

A24523

KIT

CORE KIT - (incl. core, tip, die & instr. sheet)

1шт.

17

A24086

LAMP

ASSY. - gear shift indicator, Includes Ref: 19

1шт.

18

A22349

BULB

- gear shift lamp (2 C.P.)

1шт.

20

A24511

SWITCH

ASSY - ignition (incl 2 keys), (Diesel) Includes Ref 21

1шт.

21

A24509

KEY

- switch

1шт.

22

A20620

SWITCH

ASSY. - lights, Includes Ref: 23 - 27

1шт.

23

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - switch (5/8" int. skpf.)

1шт.

24

A20467

NUT

- switch retaining

1шт.

25

A20465

KNOB

- light switch

1шт.

26

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob retaining

1шт.

27

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Knob screw #8

1шт.

28

A22874

HOLDER

ASSY. - fuse, Includes Ref: 29

1шт.

29

A10958

CAP

- fuse holder

1шт.

30

223-20

FUSE,20 Amp, Type SFE

- (20 amp.)

1шт.

31

A36948

SWITCH

- starter (exciter)

1шт.

32

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- switch (#10-24 x 1/2" rd. hd.)

2шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

NUT - (-24 hex.) #10

2шт.

34

129-17

NUT,Hex, #10 - 24

WASHER - (#10 lock)

2шт.

38

A24078

ELECTRICAL WIRE

WIRE - temp. gauge to ign. switch (15" long)

1шт.

39

A11783

ELECTRICAL WIRE

WIRE - fuel gauge to temp. gauge (13" long)

1шт.

40

A24077

WIRE - fuel gauge to connector (13" long)

1шт.

41

A22875

ELECTRICAL WIRE

WIRE - fuse holder to light switch (4" long) (used prior to trac. ser. no. 8308485) (For flashing warning lamp wiring see Page 45B)

1шт.

42

A22876

ELECTRICAL WIRE

WIRE - fuse holder to ign. switch (8-1/2" long)

1шт.

43

A32152

WIRE - light switch to connector (14" long)(Red) (used w/out cab)

1шт.

43

A57811

WIRE - light switch cult. term. (14" long)(Green) (used w/cab)

1шт.

44

A34453

WIRE - ign. switch to starter switch (24" long)

1шт.

45

A21613

HARNESS

ASSY. - wire (black plug)(used w/out cab)

1шт.

45

A21613

HARNESS

ASSY. - wire (black plug)(used w/cab) (1st used trac. ser. no. 8347113)

1шт.

45

A57812

HARNESS ASSY. - wire (black plug)(used w/cab) (used prior to trac. ser. no. 8347113)

1шт.

46

A34449

HARNESS ASSY. - wire (red plug)

1шт.

47

A57469

STRAP - wire retainer

1шт.
