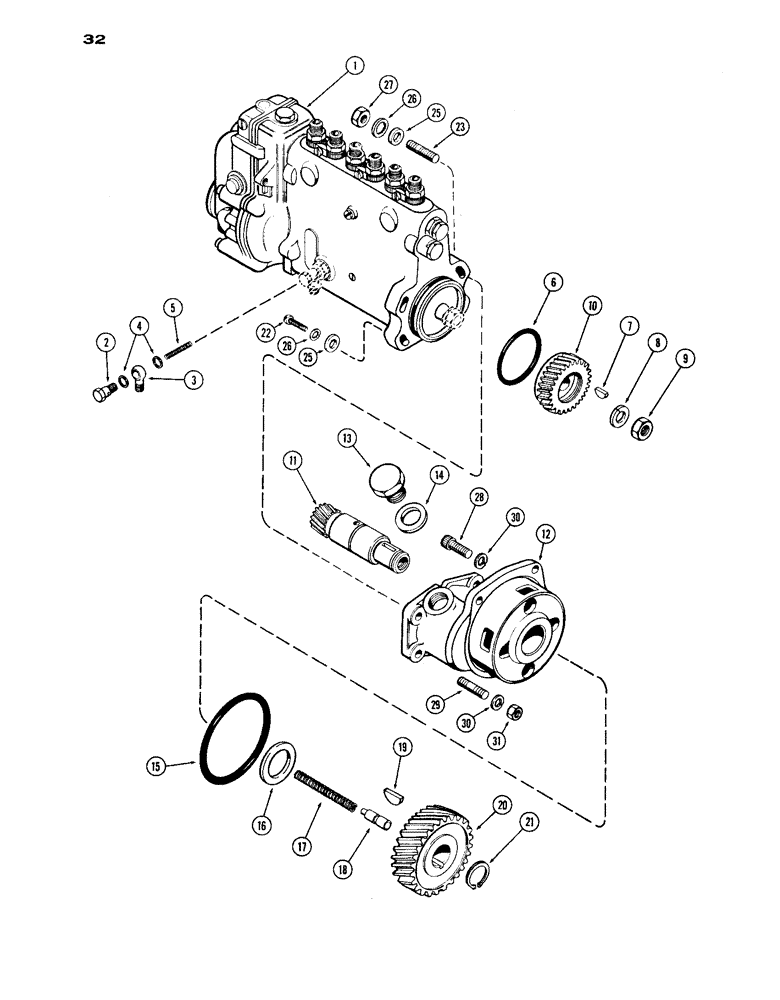

Запчасти Case IH 1030 (032) - FUEL INJECTION PUMP AND DRIVE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A34436
PUMP
ASSY. - fuel injection (2000 R.P.M.), Includes Ref: 2 - 9
1шт.
2
A25192
BANJO BOLT
BOLT - lube oil fitting
1шт.
3
A25191
FITTING
- oil lube line (banjo type)
1шт.
4
A22381
WASHER
- lube fitting (13/32 x 17/32 x 3/64" copper)
2шт.
5
A25190
SPRING
- oil lube port
1шт.
6
A20529
O-RING,2.598" ID x 2.834" OD
"O" RING - pump to housing (2-19/32 x 2-27/32 x 1/8")
1шт.
7
A20933
KEY
- drive gear
1шт.
8
A25188
WASHER
- gear lock
1шт.
9
A25189
NUT - gear retaining
1шт.
10
A21139
GEAR
- injection pump
1шт.
11
A20622
GEAR
PINION - pump gear drive
1шт.
12
A21136
HOUSING ASSY. - drive pinion, w/bushing
1шт.
13
A21140
PLUG
- timing window
1шт.
14
A58613
SEALING WASHER
GASKET - plug (1-1/32 x 1-1/4 x 1/16" Nylon) (Replaces A27947)
1шт.
15
A23316
O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro
"O" RING - housing (4-1/2 x 4/3/4 x 1/8")
1шт.
16
A27864
WASHER
- thrust, drive gear (1-3/8 x 2-3/32 x 1/8")
1шт.
17
A27853
SPRING
- plunger tension
1шт.
18
A27852
PLUNGER
- pinion thrust
1шт.
19
126-66
WOODRUFF KEY
KEY - drive gear (#141 Woodruff)
1шт.
20
A20899
GEAR WHEEL
GEAR - injection pump drive
1шт.
21
A27576
SNAP RING,#98, Ext
Ring, Snap, , drive gear #98, Ext
1шт.
22
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- pump, lower (3/8 x 1-1/2" N.C. hex.)
2шт.
23
A20664
STUD - pump, upper (3/8" N.F. x 1-7/8")
2шт.
25
A57470
WASHER
- (13/32 x 11/16 x 1/16")
4шт.
26
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
27
25-116
NUT,Hex, 3/8"-24, G5
- (3/8" N.F. hex.)
2шт.
28
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd
1шт.
28
61-620
HEX SOC SCREW,3/8"-16 x 1 1/4"
BOLT - housing (3/8 x 1-1/4" N.C., 12 pt. hd.)
1шт.
29
A26554
STUD - housing (3/8" N.C./N.F. x 1-9/16")
1шт.
30
92-6
LOCK WASHER,3/8"
3шт.
31
25-116
NUT,Hex, 3/8"-24, G5
- (3/8" N.F. hex.)
1шт.
Выбрано товаров: 31
