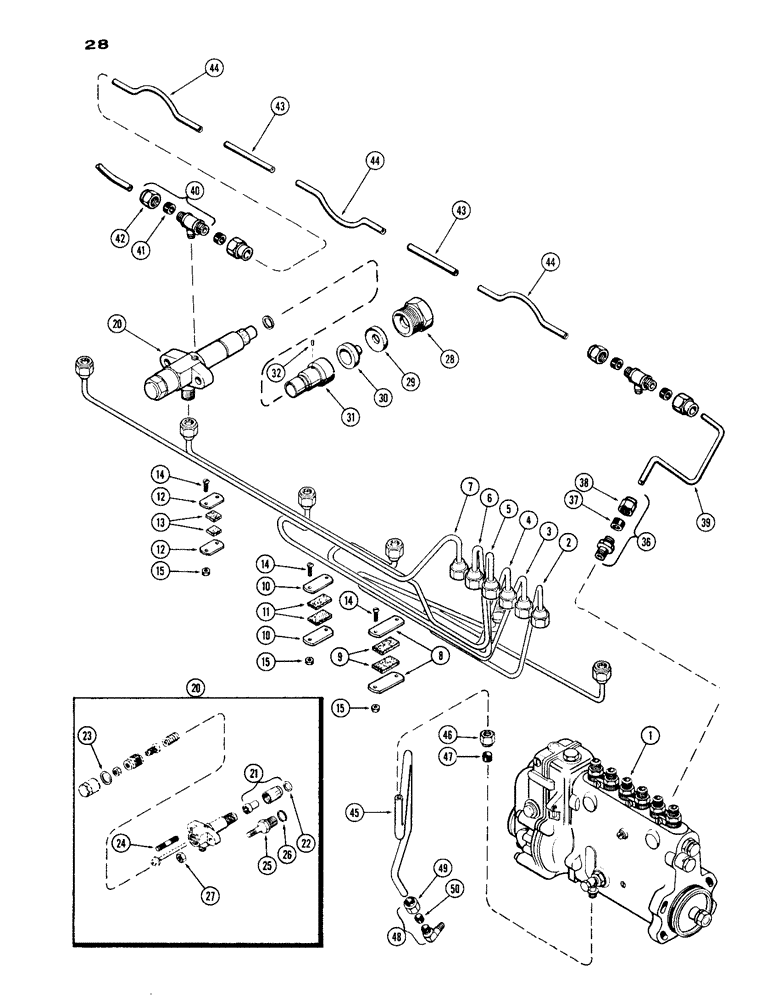

Запчасти Case IH 1030 (028) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

A34436

PUMP

ASSY. - fuel injection (See Fig. 32)

1шт.

2

A20501

TUBE

- fuel injection, No. 1 cylinder

1шт.

3

A20502

TUBE

- fuel injection, No. 2 cylinder

1шт.

4

A20503

TUBE

- fuel injection, No. 3 cylinder

1шт.

5

A20504

TUBE

- fuel injection, No. 4 cylinder

1шт.

6

A20505

TUBE

- fuel injection, No. 5 cylinder

1шт.

7

A20506

TUBE

- fuel injection, No. 6 cylinder

1шт.

8

A27978

CLAMP

- inj. tubes, front (2-5/64" long)

2шт.

9

A27980

CUSHION

- front clamps (1/8 x 3/4 x 1-1/4" cork)

2шт.

10

A27977

CLAMP

- inj. tubes, center (1-37/64" long)

2шт.

11

A27979

CUSHION

- center clamps (1/8 x 3/4 x /4" cork)

2шт.

12

A20508

CLAMP

- inj. tubes, rear (1-21/64" long)

2шт.

13

A20509

CUSHION

- rear clamps (1/8 x 3/4 x 1/2" cork)

2шт.

14

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamps (#10-24 x 1" rd. hd.)

6шт.

15

129-7

NUT,Hex, #10 - 24

- ( hex.) #10-24

6шт.

20

A8013

NOZZLE INJECTION

INJECTOR ASSY. - fuel, Includes Ref: 21 - 23

6шт.

21

A31159

NOZZLE INJECTION

NOZZLE ASSY. - (fuel atomizer), Includes Ref: 22

1шт.

22

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

23

A31062

GASKET

- injector cap

1шт.

24

A27929

STUD

- nozzle holder (3/8" N.C./N.F. x 2-3/16")

6шт.

25

A10678

STUD

- nozzle holder

6шт.

26

A10679

GASKET

- nozzle holder stud (23/32 x 29/32 x 1/32" copper)

6шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

12шт.

28

A11813

PLUG

SCREW - powrcel clamp

6шт.

29

A11812

CLAMP

- powrcel

6шт.

30

A22975

CAP

- powrcel

6шт.

31

A22978

BODY

- powrcel

6шт.

32

A11810

PIN,3.19mm OD x 6.99mm L

- powrcel body locating (1/8 x 17/64")

6шт.

36

A28098

VALVE

ASSY. - check (one way valve), Includes Ref: 37 and 38

1шт.

37

222-102

SLEEVE,1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.

39

A22186

TUBE

- leak-off (No. 1 injector to check valve)

1шт.

40

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - leak off tubes junction, Includes Ref: 41 and 42

6шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

2шт.

43

A20162

TUBE

- leak off (No, 2 to No. 3 & No. 4 to No. 5 injectors)

2шт.

44

A27981

TUBE

- leak-off (No. 1 to No. 2, No. 3 to No. 4 & No. 5 to No. 6 injectors)

3шт.

45

A22640

TUBE

- lube oil, Serial Range: pump-block

1шт.

46

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube )

1шт.

47

222-102

SLEEVE,1/4" Tube

1шт.

48

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - lube line to block, Includes Ref: 49 and 50

1шт.

49

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.

50

222-102

SLEEVE,1/4" Tube

1шт.
