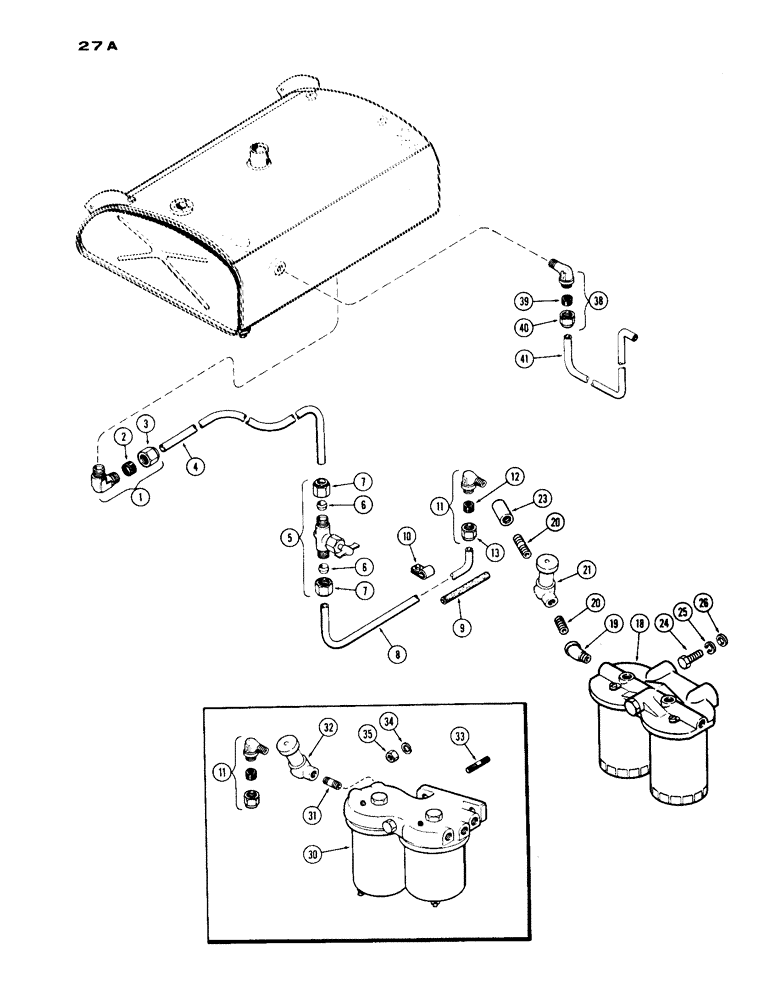

Запчасти Case IH 1030 (027A) - FUEL LINES (03) - FUEL SYSTEM

1

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

ASSY. - (3/8" tube x 3/8" N.P.T.), Includes Ref: 2 and 3

1шт.

2

222-104

SLEEVE,3/8" Tube

- rubber (for ) 3/8" Tube

1шт.

3

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

1шт.

4

A57059

TUBE

- outlet to valve (approx. 9-1/2" long) (1st used trac. ser. no. 8301578)

1шт.

4

A34768

TUBE - outlet to valve (Approx. 27-1/2" long) (used prior to trac. ser. no. 8301578)

1шт.

5

217-270

LOCK VALVE

VALVE ASSY. - fuel shut-off, Includes Ref: 6 and 7

1шт.

6

222-654

FERRULE,3/8" Tube, Comp

- (for 3/8" tube)

2шт.

7

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT -(for 3/8" tube)

2шт.

8

A57058

TUBE - valve to pump (Approx. 62" long w/bend) (1st used trac. ser. no. 8301578)

1шт.

8

A34767

TUBE - valve to pump (Approx. 62" long, straight) (Used prior to trac. ser. no. 830157)

1шт.

9

A57060

LOOM - (7/16" I.D. x 61") (1st used trac. ser. no. 8301578)

1шт.

9

A27239

LOOM - (7/16" I.D. x 11") (used prior to trac. ser. no. 8301578)

1шт.

10

A57061

CLIP

- tube retaining

2шт.

11

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

ASSY. - fuel line to primer pump (45deg.), Includes Ref: 12 and 13

1шт.

12

222-104

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

13

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

1шт.

18

A60032

HEAD

FILTER ASSY. - spin on type (See Fig. 30) (1st used eng. ser. no. 2205978)

1шт.

19

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- (at filter head)(45deg. brass)

1шт.

20

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - (1/4" P.T. x 1")

2шт.

21

A60042

PUMP

ASSY. - hand primer (Replaces A23865)

1шт.

23

221-336

COUPLING,Pipe, 1/4" NPT

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Filter Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

30

A40435

FILTER

ASSY. - (1st & 2nd stage)(See Fig. 31A) (used prior to eng. ser. no. 2205978)

1шт.

31

221-137

PIPE,Nipple, 1/4" NPT x 2"

NIPPLE - hand pump to filter (1/4" P.T x 2")

1шт.

32

A60042

PUMP

ASSY. - hand primer (replaces A23865)

1шт.

32

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

32

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

33

A26554

STUD - filter (3/8" N.F. x 1-9/16")

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

38

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - leak-off return, Includes Ref: 39 and 40

1шт.

39

222-102

SLEEVE,1/4" Tube

1шт.

40

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.

41

A9046

TUBE - fuel leak-off return

1шт.
