(026) - FUEL TANK

Запчасти Case IH 1030 (026) - FUEL TANK (03) - FUEL SYSTEM

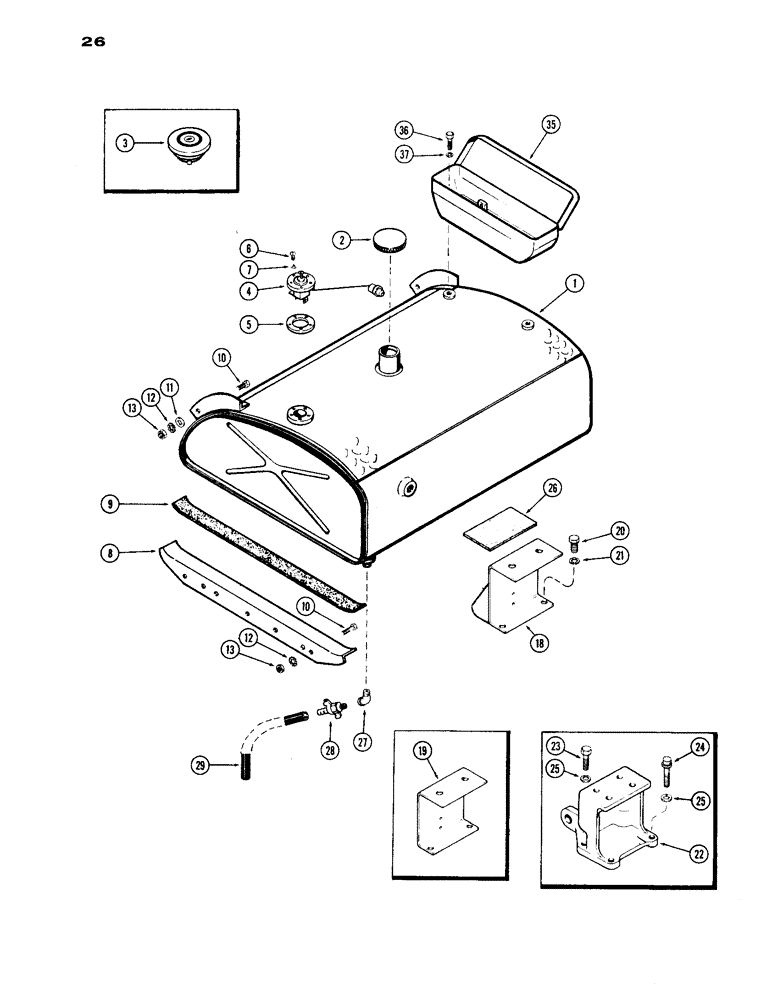

Схема запчастей Case IH 1030 - (026) - FUEL TANK (03) - FUEL SYSTEM
22
1
3
12
28
27
26
11
7
25
9
35
29
20
6
19
21
25
23
2
10
13
36
5
4
18
12
10
37
13
24
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A34812

TANK

ASSY. - fuel (w/inserts for draft arms)

1шт.

1

A57205

TANK ASSY. - fuel (without inserts) (used models w/out draft arms)

1шт.

2

A32119

CAP

ASSY. - fuel tank (see item 3)

1шт.

3

A32120

CAP

ASSY. - fuel tank, w/keys

1шт.

4

A24004

SENDER UNIT

SENDING UNIT - fuel gauge

1шт.

5

A61161

GASKET

- sending unit (Replaces A11822)

1шт.

6

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- sending unit (#10-32 x 7/16" rd.hd.)

5шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

8

A57478

SUPPORT

- fuel tank, (replaces A34404 & A34405)

2шт.

9

A23991

CUSHION

- fuel, Serial Range: tank-supports

2шт.

10

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Support Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

10

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Fuel tank Hex, 5/16"-18 x 2", G5

1шт.

11

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 5/64")

2шт.

12

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

18шт.

13

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

18шт.

18

A60099

SUPPORT - fuel tank, center (w/lift link stop) (1st used trac. ser. no. 8358522)

1шт.

19

A57981

SUPPORT - fuel tank, center (w/out hitch link lug) (used trac. ser. no. 8351547 to 8358522)(Order A60099)

1шт.

20

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(Used w/A57981 & A60099) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

A33506

SUPPORT - fuel tank, center (w/hitch link lug) (used prior to trac. ser. no. 8351547)

1шт.

23

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(used w/A35506 supt.) Hex, 5/8"-11 x 2", G5

2шт.

24

166-115

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

BOLT - (5/8 x 2" N.C., 12 P.T. hd.)(used w/A35506 supt.)

2шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

26

A32720

CUSHION - center support

1шт.

27

221-1401

ELBOW,45º, 1/8"-27, NPT

- drain valve, 1/8" P.T. x 45deg. Street)

1шт.

28

217-107

VALVE

- drain, fuel tank

1шт.

29

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

35

A11099

TOOL

BOX ASSY. - tools

1шт.

36

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- box to tank (5/16 x 1/2" N.F. hex.)

2шт.

37

92-5

LOCK WASHER,5/16"

2шт.
