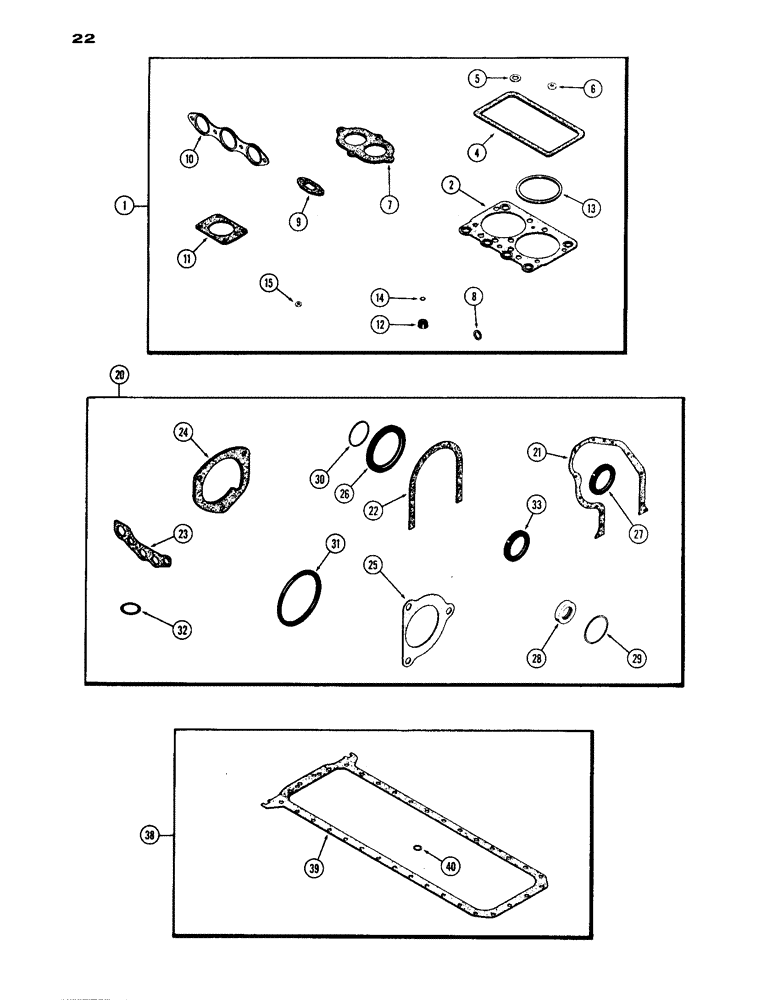

Запчасти Case IH 1030 (022) - ENGINE GASKET KITS (02) - ENGINE

1

A41577

GASKET

VALVE GRIND KIT (Replaces A409312), Includes Ref: 2 - 15

1шт.

For Complete Engine Overhaull Order 3-A41577, 1-A40443, & 1-A40444

1шт.

2

A57593

GASKET

- cylinder head w/grommets (Replaces A41385)

3шт.

4

A57595

CYLINDER HEAD GASKET

- cyl. head cover (Replaces A27972)

3шт.

5

A23685

GASKET

- breather tube (11/16 x 1-1/16 x 1/8" fiber)

3шт.

6

A23684

GASKET

GASKET - cyl. hd. cover stud (15/32 x 7/8 x 1/8" rubber)

6шт.

7

A32612

GASKET

- thermostat housing

1шт.

8

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle

6шт.

9

A27905

GASKET

- water manifold

6шт.

10

A34875

GASKET,2.2mm Thk

- manifold

3шт.

11

A20678

GASKET

- air intake elbow

1шт.

12

A10726

SEAL

SHIELD - intake valve stem (rubber)

6шт.

13

A34686

RING

- fire, cyl. hd. gasket (std.)

6шт.

14

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

3шт.

15

A34133

GASKET

- breather tube bolt

3шт.

20

A40443

KIT

CYLINDER BLOCK KIT, Includes Ref: 21 - 33

1шт.

For Complete Engine Overhaull Order 1-A40443, 1-A40443, & 1-A40444

1шт.

21

A33018

GASKET

- timing gear cover

1шт.

22

A32830

GASKET

- rear oil seal retainer

1шт.

23

A21084

GASKET

- oil filter base

1шт.

24

A57596

GASKET

- water pump (Replaces A27899)

1шт.

25

A27933

GASKET

- starter

1шт.

26

A23085

OIL SEAL

- oil, crankshaft, rear (4-3/4 x 5-3/4 x 1/2")

1шт.

27

A57342

SEAL

- oil, crankshaft, frt. (2-5/8 x 3-5/8 x 1/2") (Replaces A23433)

1шт.

28

A57479

OIL SEAL

- oil, clutch shaft (1-1/2 x 2-1/8 x 7/16") (Replaces A7144)

1шт.

29

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - clutch shaft (2-1/2 x 2-3/4 x 1/8")

1шт.

30

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (2-3/4 x 3 x 1/8")

1шт.

31

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - injection pump

1шт.

32

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump (1-3/16 x 1-7/16 x 1/8")

2шт.

33

A20939

OIL SEAL

SEAL - oil (2-3/4 x 3-5/8 x 3/8")(Not used this mach.)

1шт.

38

A40444

KIT

OIL PAN KIT, Includes Ref: 39 and 40

1шт.

For Complete Engine Overhaull Order 1-A40443, 1-A40443, & 1-A40444

1шт.

39

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40444)

1шт.

40

A58608

GASKET

- drain plug (replaces A27927)

1шт.

40

A34827

GASKET

- drain plug (57/64 x 1-1/8 x 1/16" copper) (Not used this mach.)

1шт.
