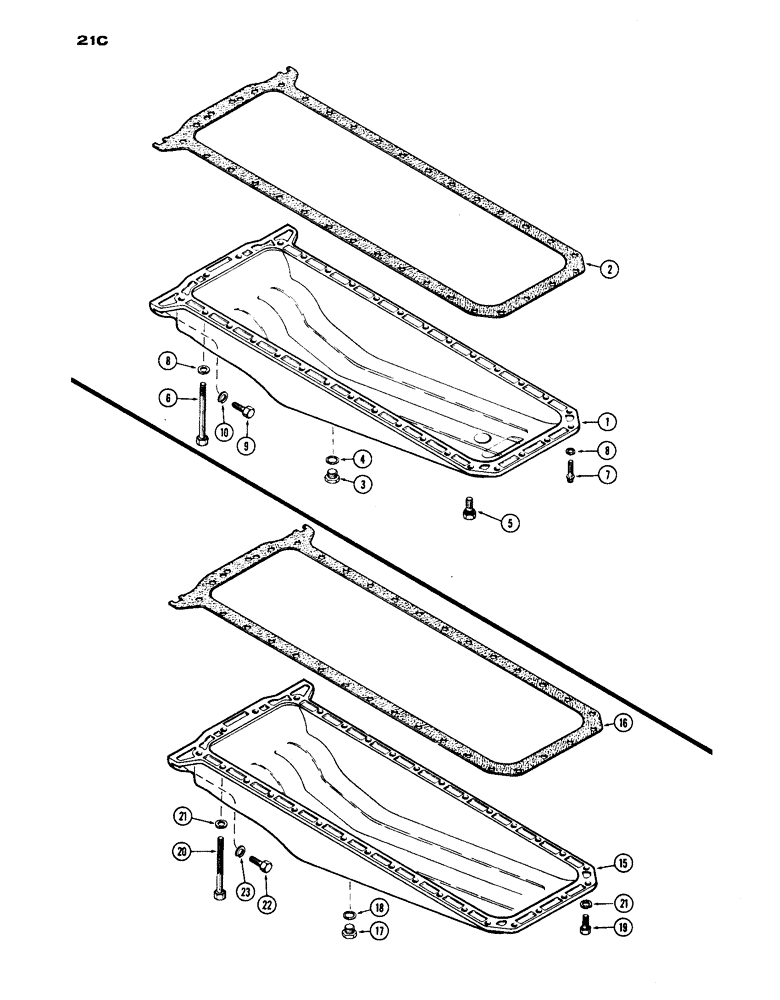

Запчасти Case IH 1030 (021C) - OIL PAN, FIRST USED ENGINE SERIAL NUMBER 2174160 (02) - ENGINE

1

A57404

PAN

- oil

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40444)(See Fig. 22)

1шт.

3

A14280

PLUG

- drain, oil pan

1шт.

4

A58606

GASKET - drain plug (replaces A27927)

1шт.

5

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - pan to block & cover (3/8 x 1-1/4" N.C. hex. sems)

26шт.

6

A57436

BOLT

- pan to rear seal ret. (3/8 x 5-3/4" N.C. hex.)

2шт.

7

A34929

BOLT (SPREADER)

BOLT - pan to cover (3/8 x 1-1/8" N.C., 12 pt. hd.)

2шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Pan to trans. case Hex, 1/2"-13 x 1 5/8", G5

4шт.

9

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- pan to trans. case (1/2 x 1-3/4" N.C. hex.)

1шт.

10

92-8

LOCK WASHER,1/2"

5шт.

15

A33208

PAN - oil, used prior to engine ser. no. 2174160

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40444)(See Fig. 22), used prior to engine ser. no. 2174160

1шт.

17

A14280

PLUG

- drain, oil pan, used prior to engine ser. no. 2174160

1шт.

18

A58608

GASKET

- drain plug (Replaces A27927), used prior to engine ser. no. 2174160

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pan to block, used prior to engine S/N 2174160 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

28шт.

20

13-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

Pan to rear seal, used prior to engine S/N 2174160 Hex, 3/8"-16 x 5 3/4", G5

2шт.

21

92-6

LOCK WASHER,3/8"

used prior to engine ser. no. 2174160 3/8"

30шт.

22

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Pan to trans. case, used prior to engine S/N 2174160 Hex, 1/2"-13 x 1 5/8", G5

4шт.

22

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- pan to trans. case (1/2 x 1-3/4" N.C. hex.), used prior to engine ser. no. 2174160

1шт.

23

92-8

LOCK WASHER,1/2"

used prior to engine ser. no. 2174160 1/2"

5шт.
