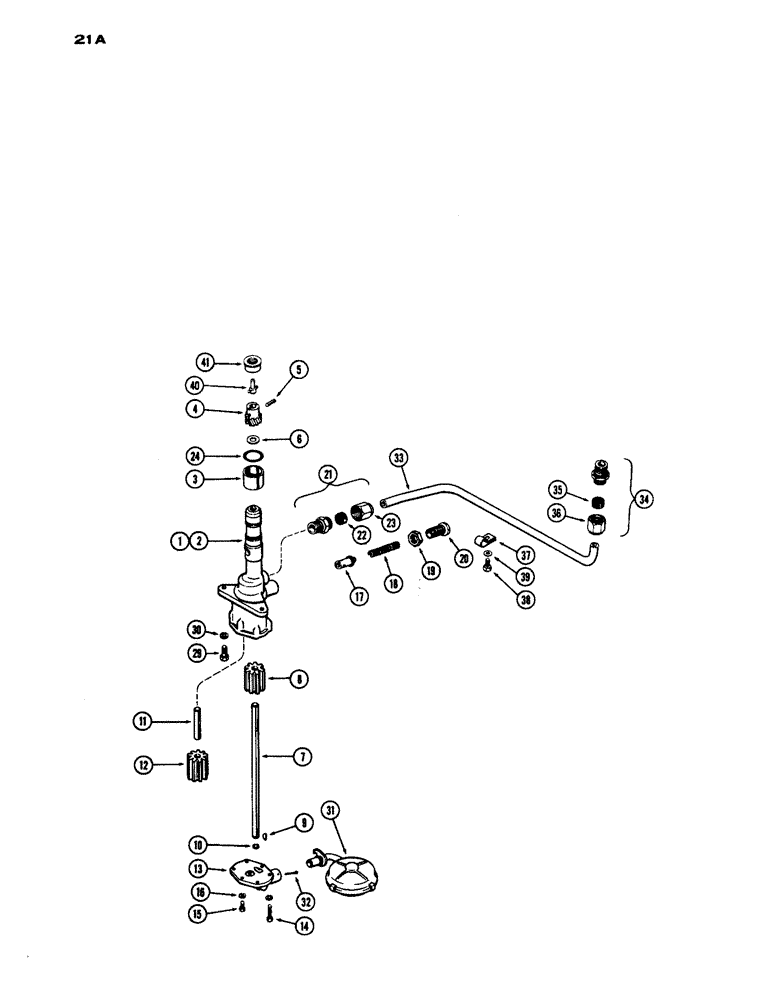

Запчасти Case IH 1030 (021A) - OIL PUMP, USED PRIOR TO ENGINE SERIAL NUMBER 2174160 (02) - ENGINE

1

A33878

PUMP

ASSY. - oil, Includes Ref: 2 - 24

1шт.

2

A21094

BODY

ASSY. - oil pump, Includes Ref: 3

1шт.

3

A21079

SLEEVE

- body (1-23/64 x 1-21/32 x 1-1/4")

1шт.

4

A33840

GEAR WHEEL

GEAR - pump drive

1шт.

5

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, , Gear 3/16" x 1", Type A, Hardened

1шт.

6

A27857

WASHER

- thrust, drive gear (33/64 x 15/16 x 1/16")

1шт.

7

A21102

SHAFT

- pump drive

1шт.

8

A27855

GEAR WHEEL

GEAR - driven (lead gear) w/key way

1шт.

9

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Lead gear #5, 1/8" x 5/8"

1шт.

10

A10916

RING, SNAP

RING - snap, lead gear ret.

1шт.

11

A27854

SHAFT

- idler gear

1шт.

12

A27856

GEAR WHEEL

GEAR - idler (follow gear) w/out key way

1шт.

13

A33442

COVER - pump body

1шт.

14

75-424

SCREW

- cover (1/4 x 1-1/2" N.C. rd. hd.)

1шт.

15

75-412

SCREW,Rd, 1/4" x 3/4"

- cover (1/4 x 3/4" N.C. rd. hd.)

5шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

17

A22566

PLUNGER

- relief valve

1шт.

18

A23598

VALVE SPRING

SPRING - relief valve

1шт.

19

A27858

NUT

- lock, adj. screw (7/8" N.F. hex., spec.)

1шт.

20

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, relief valve

1шт.

21

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - filter tube (1/2" P.T., 5/8" tube), Includes Ref: 22 and 23

1шт.

22

222-106

SLEEVE,5/8" Tube

- (for 5/8" O.D. tube)

1шт.

23

222-116

TUBE NUT,1"-18

NUT - (for 5/8" O.D. tube)

1шт.

24

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - pump body (1-3/16 x 1-7/16 x 1/8")

2шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump body Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

A27476

FILTER SCREEN

FLOAT - oil pan screen

1шт.

32

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

33

A20735

TUBE

-, Serial Range: pump-filter

1шт.

34

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - tube (1/2" P.T., 5/8" tube), Includes Ref: 35 and 36

1шт.

35

222-106

SLEEVE,5/8" Tube

- (for 5/8" O.D. tube)

1шт.

36

222-116

TUBE NUT,1"-18

NUT - (for 5/8" O.D. tube)

1шт.

37

A10852

CLIP - tube

1шт.

38

A10072

BOLT,3/8" - 16 x 3/4"

- clip (3/8 x 3/4" N.C. spec.)

1шт.

39

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

40

A24528

ADAPTER

- tachometer drive

1шт.

41

A11195

PLUG

- adapter

1шт.
