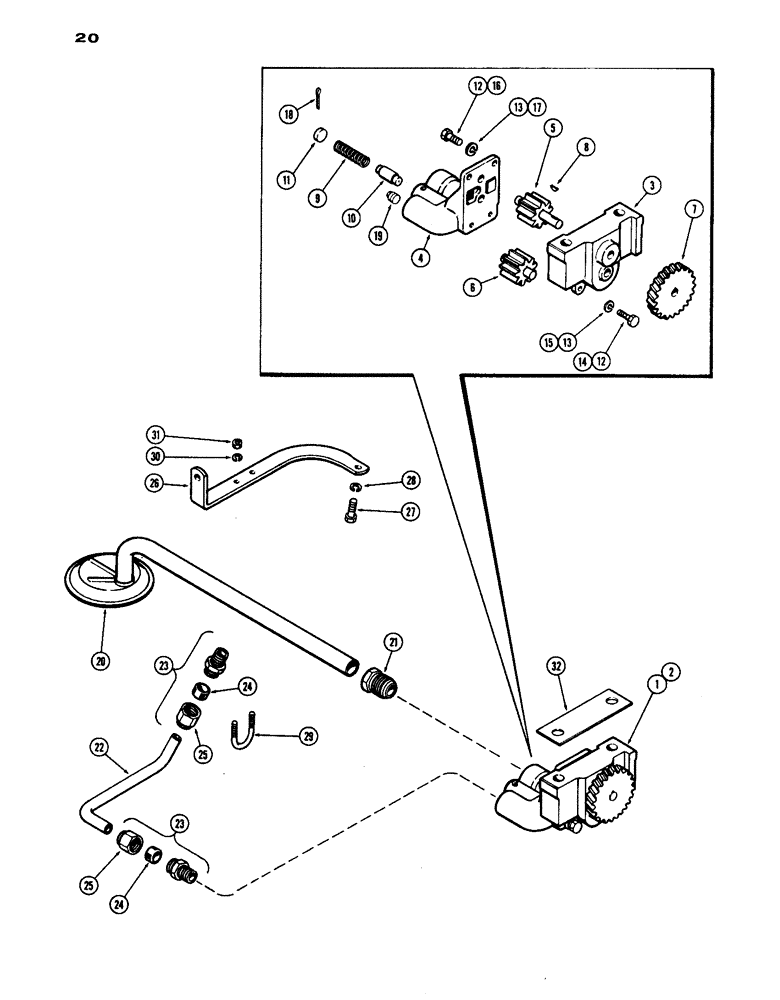

Запчасти Case IH 1030 (020) - OIL PUMP, FRONT MOUNTED, FIRST USED ENGINE SERIAL NUMBER 2174160 (02) - ENGINE

1

A61810

PUMP

ASSY. - oil (1st used eng. ser. no. 2202205) (Replaces A57846)

1шт.

2

A34940

PUMP ASSY. - oil (Order A61810) (used prior to eng. ser. no. 2202205), Includes Ref: 3 - 19

1шт.

3

A57487

BODY

- (drilled for 5/16" bolts) (used w/A57486 & A61810 oil pump)(See ref. 1)

1шт.

3

A34941

X

BODY - (drilled for 3/4" shoulder bolt) (used w/A34940 oil pump) (See ref. 2) (Order 1-A57487, 1-A61811, 4-13-518, 4-92-5, 1-A59111, 1-41-1011, 1-132-32 & 1-221-844)

1шт.

4

A61811

COVER

- (w/29/32" tapped bolt holes depth)(Replaces A57488)(used w/A61810 oil pump)(See ref. 1)

1шт.

4

A34991

COVER

- (w/5/8" tapped bolt holes depth) (used w/A34940 oil pump)(See ref. 2) (Order 1-A57487, 1-A61811, 4-13-518, 4-92-5, 1-A59111, 1-41-1011, 1-132-32 & 1-22-844)

1шт.

5

A34942

GEAR ASSY. - w/shaft & key (lead gear)

1шт.

6

A34945

GEAR ASS. - w/shaft (follow gear)

1шт.

7

A34947

GEAR - pump drive (external)

1шт.

8

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Drive gear #3, 1/8" x 1/2"

1шт.

9

A34993

RING

SPRING - relief valve (Used w/A34991 & A57488 cover)

1шт.

9

A59111

SPRING

- relief valve (Used w/A61811 cover)

1шт.

10

A34992

PISTON

VALVE - relief

1шт.

11

A34951

X

PLUG - cup (45/64")(Used w/A34991 & A57488 cover)

1шт.

11

41-1011

PLUG,Cup, 11/16"

- cup (11/16")(Used w/A61811 cover)

1шт.

12

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

(Used w/A57487 body & A57488, A61811 covers) Hex, 5/16"-18 x 1 1/8", G5

4шт.

13

92-5

LOCK WASHER,5/16"

(used w/13-518 bolt) 5/16"

4шт.

14

A34950

STEP BOLT

BOLT - shoulder (5/16" N.C. x 1")(used w/A34941 body)

2шт.

15

92-6

LOCK WASHER,3/8"

used w/A34950 bolt 3/8"

2шт.

16

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Used w/A34991 cover) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

16

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)(used w/A34991 cover)

1шт.

17

92-5

LOCK WASHER,5/16"

(used w/13-514 & 13-520 bolts) 5/16"

2шт.

18

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), , Used w/A61811 cover 3/32" x 1 1/2"

1шт.

19

221-844

PLUG,Hex Soc, 1/2"-14

- pipe (1/2" hex. sckt. hd)(Used w/A61811 cover)

1шт.

20

A34976

SCREEN

TUBE - oil suction, w/screen

1шт.

21

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube to pump

1шт.

22

A57388

TUBE

-, Serial Range: pump-filter

1шт.

23

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - tube, Includes Ref: 24 and 25

2шт.

24

222-106

SLEEVE,5/8" Tube

- (rubber)(for 5/8" O.D. tube)

1шт.

25

222-116

TUBE NUT,1"-18

NUT - (for 5/8" O.D. tube)

1шт.

26

A34980

BRACKET

SUPPORT - suction tube

1шт.

27

A10072

BOLT,3/8" - 16 x 3/4"

- supt. (3/8 x 1" N.C. hex. w/nylon insert)

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

A34979

BOLT

"U" BOLT - suction tube hanger

1шт.

30

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

2шт.

31

25-104

NUT,1/4"-20, G5

2шт.

32

A57454

SHIM,.005" Thk

Pump to frt. brg. cap (Replaces A34948 & A34949) .005" Thk

1шт.

32

A57455

SHIM,.010" Thk

Pump to frt. brg. cap (Replaces A34948 & A34949) .010" Thk

1шт.

32

A57456

SHIM,.025" Thk

Oil pump to frt. brg. cap (Replaces A34948 & A34949) .025" Thk

1шт.
