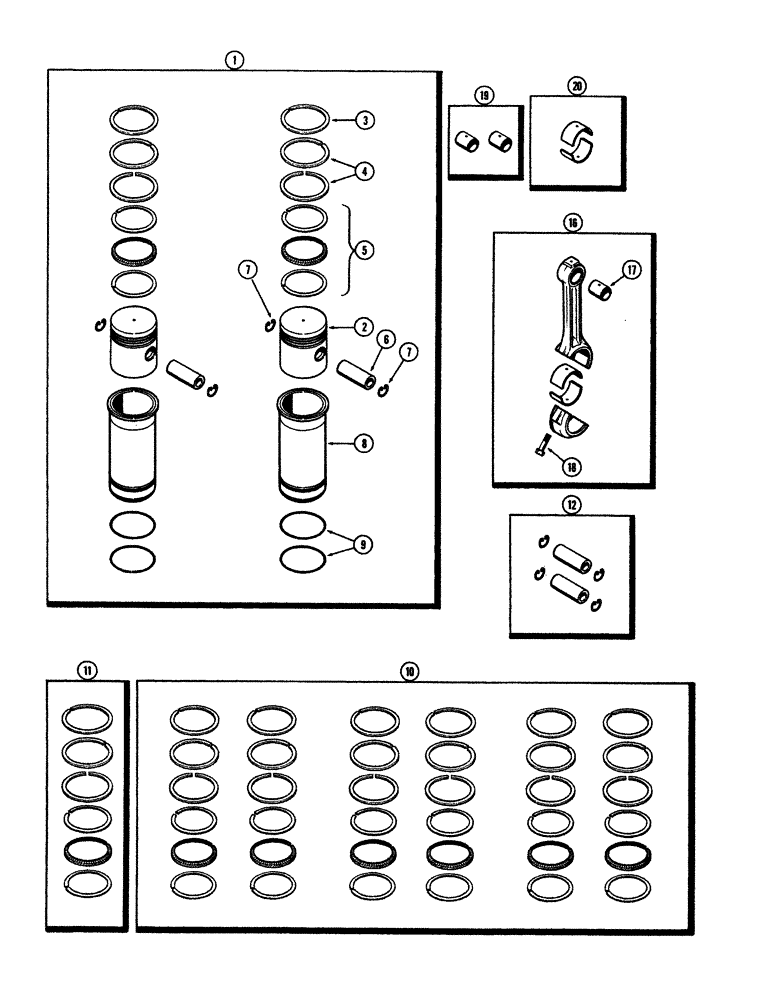

Запчасти Case IH 1030 (017) - PISTON ASSEMBLY, CONNECTING RODS, AND BRGS. (02) - ENGINE

1

A42828

PISTON

PISTON ASSY - (Set of 2) (Replaces A40583 & A41363)

3шт.

2

A57139

PISTON

PISTON - (4-3/8" bore)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st Groove) (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd & 3rd Groove) (Order ref. 11)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (4th Groove) (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

RING - snap, piston pin retaining

4шт.

8

A62166

SLEEVE

SLEEVE - piston (cylinder liner) (Replaced A23660)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

O-RING - sleeve packing

4шт.

10

A41364

RING

RING KIT - re-ring (Set of 6) (Replaces A24997)

1шт.

11

A41362

RING

RING KIT - re-ring (Set of 1) (Replaces A24988)

6шт.

12

A21725

KIT

PIN KIT - (Set of 2 pins w/ 4 rings)

2шт.

16

A24424

ROD

ROD ASSY - connecting

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 19)

1шт.

18

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

BOLT - conn. rod cap

2шт.

19

A21722

BUSHING

BUSHING KIT - piston pin (Set of 2)

3шт.

20

A20393

LINING

INSERT KIT - conn. rod brg. (Std) (Set of 2)

6шт.

20

A20569

JOURNAL

INSERT KIT - conn. rod brg. (-.002") (Set of 2)

6шт.

20

A20571

BEARING LINER

INSERT KIT - conn. rod brg. (-.010") (Set of 2)

6шт.

20

A20573

KIT

INSERT KIT - conn. rod brg. (-.20") (Set of 2)

6шт.

20

A20576

LINING

INSERT KIT - conn. rod brg. (-.030") (Set of 2)

6шт.
