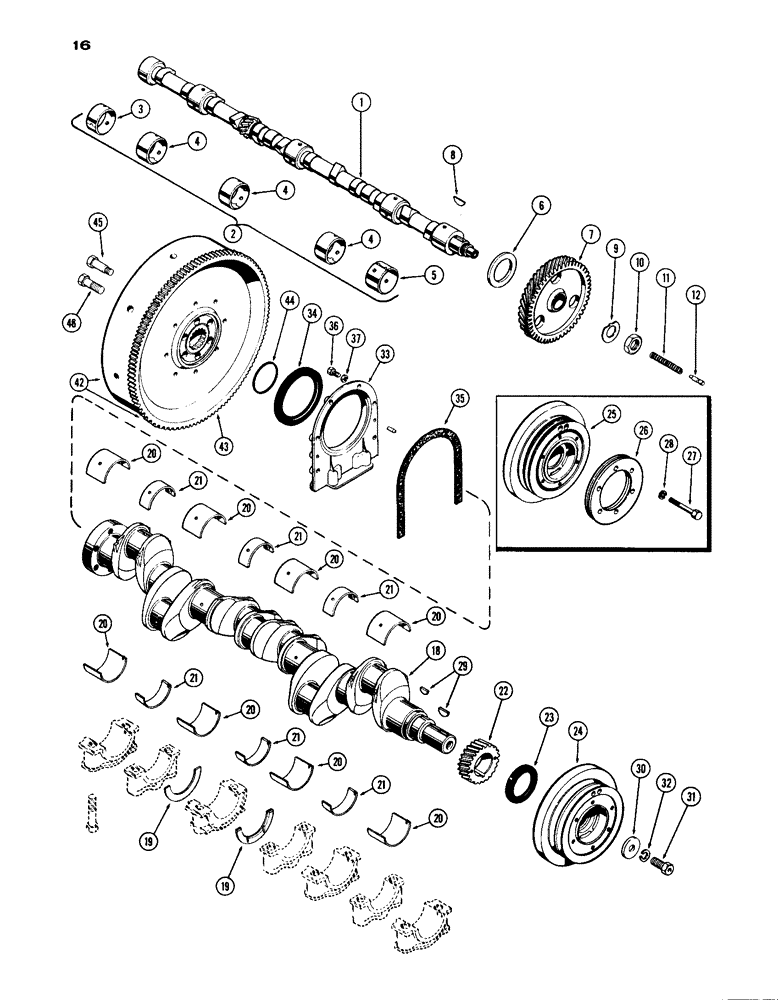

Запчасти Case IH 1030 (016) - CAMSHAFT, CRANKSHAFT AND BRGS FLYWHEEL (02) - ENGINE

1

A60094

CAMSHAFT

- w/cast gear (used w/A34940 oil pump) (See Fig. 20) (1st used eng. ser. no. 2174160)(Replaces A34968)

1шт.

1

A33839

CAMSHAFT

- w/steel insert gear (used w/A33878 oil pump) (See Fig. 21A) (used prior to eng. ser. no. 2174160)

1шт.

2

A23544

BUSHING

KIT - camshaft, Includes Ref: 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear (15/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1-27/64" wide)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (1-41/64" wide)

1шт.

6

A21017

WASHER

- thrust (2-1/4 x 3-1/4 x 1/8")

1шт.

7

A22604

GEAR

- camshaft timing, Includes Ref: 8

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Timing gear #18, 1/4" x 1 1/8"

1шт.

9

A26444

LOCK WASHER

- tab

1шт.

10

A26445

NUT

- timing gear retaining

1шт.

11

P0027853A

LARGE PIN

- thrust plunger

1шт.

12

A27852

PLUNGER

- thrust, camshaft

1шт.

18

A24944

CRANKSHAFT, BRGS, flywheel

1шт.

19

A27835

WASHER

- thrust (Std.), crankshaft and BRGS, flywheel

2шт.

19

A7204

WASHER

- thrust (.006" oversize), crankshaft and BRGS, flywheel

2шт.

20

A28687

LINING

INSERT ASSY. - main brg. (2-7/32" wide)(std.), crankshaft and BRGS, flywheel

4шт.

20

A7182

KIT

INSERT ASSY. - main brg. (2-7/32" wide)(-.002"), crankshaft and BRGS, flywheel

4шт.

20

A7188

BEARING LINER

INSERT ASSY. - main brg. (2-7/32" wide)(-.010"), crankshaft and BRGS, flywheel

4шт.

20

A7194

KIT

INSERT ASSY. - main brg. (2-7/32" wide)(-.020"), crankshaft and BRGS, flywheel

4шт.

20

A7200

KIT

INSERT ASSY. - main brg. (2-7/32" wide)(-.030"), crankshaft and BRGS, flywheel

4шт.

21

A20394

LINING

INSERT ASSY. - main brg. (1-5/32" wide)(std.), crankshaft and BRGS, flywheel

3шт.

21

A20579

LINING

INSERT ASSY. - main brg. (1-5/32" wide)(-.002"), crankshaft and BRGS, flywheel

3шт.

21

A20582

LINING

INSERT ASSY. - main brg. (1-5/32" wide)(-.010"), crankshaft and BRGS, flywheel

3шт.

21

A20585

KIT

INSERT ASSY. - main brg. (1-5/32" wide)(-.020"), crankshaft and BRGS, flywheel

3шт.

21

A20588

KIT

INSERT ASSY. - main brg. (1-5/32" wide)(-.030"), crankshaft and BRGS, flywheel

3шт.

22

A27837

GEAR

- crankshaft timing, BRGS, flywheel

1шт.

23

A57342

SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2") (Replaces A23433), BRGS, flywheel

1шт.

24

A57124

PULLEY - fan dirve, w/vibration damper (1st used trac. ser. no. 8301335), crankshaft and BRGS, flywheel

1шт.

25

A60158

PULLEY

- fan drive, w/vibration damper (used prior to trac. S/N 8301335)(Replaces A20744 when stock is depleted), crankshaft and BRGS, flywheel

1шт.

26

A34360

PULLEY - power str. pump drive (used prior to trac. ser. no. 8301335), crankshaft and BRGS, flywheel

1шт.

27

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- pulley (3/8 x 1-3/8" N.C. hex.), crankshaft and BRGS, flywheel

6шт.

28

92-6

LOCK WASHER,3/8"

crankshaft and BRGS, flywheel 3/8"

6шт.

29

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley & gear, crankshaft and BRGS, Flywheel #C, 5/16" x 1 1/8", HT

2шт.

30

A27903

WASHER

- pulley (21/32 x 2-1/8 x 1/4"), crankshaft and BRGS, flywheel

1шт.

31

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley (5/8 x 1-1/2" N.F. spec.), Crankshaft and BRGS, flywheel

1шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft and brgs, flywheel 5/8"

1шт.

33

A57457

RETAINER

- rear oil seal (replaces A32182), crankshaft and BRGS, flywheel

1шт.

34

A23085

OIL SEAL

- oil, crankshaft, rear (4-3/4 x 5-3/4 x 1/2"), BRGS, flywheel

1шт.

35

A32830

GASKET

- rear oil seal retainer, crankshaft and BRGS, flywheel

1шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer, crankshaft and BRGS, flywheel Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

37

92-6

LOCK WASHER,3/8"

crankshaft and BRGS, flywheel 3/8"

6шт.

42

A57426

FLYWHEEL ASSY. - clutch, (Replaces A32603), crankshaft, Includes Ref: 43

1шт.

43

A27920

GEAR

- ring, starter, crankshaft and BRGS, flywheel

1шт.

44

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (2-3/4 x 3 x 1/8"), BRGS

1шт.

45

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

BOLT - shoulder (9/16 x 2-5/32" N.F. self-locking), crankshaft and BRGS, flywheel

2шт.

46

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

BOLT - (5/8 x 2-1/8" N.F. self-locking), crankshaft and BRGS, flywheel

4шт.

A154684

SLEEVE

KIT wear, for front crank seal, shaft and BRGS, flywheel

1шт.

A43194

KIT

repair

1шт.
