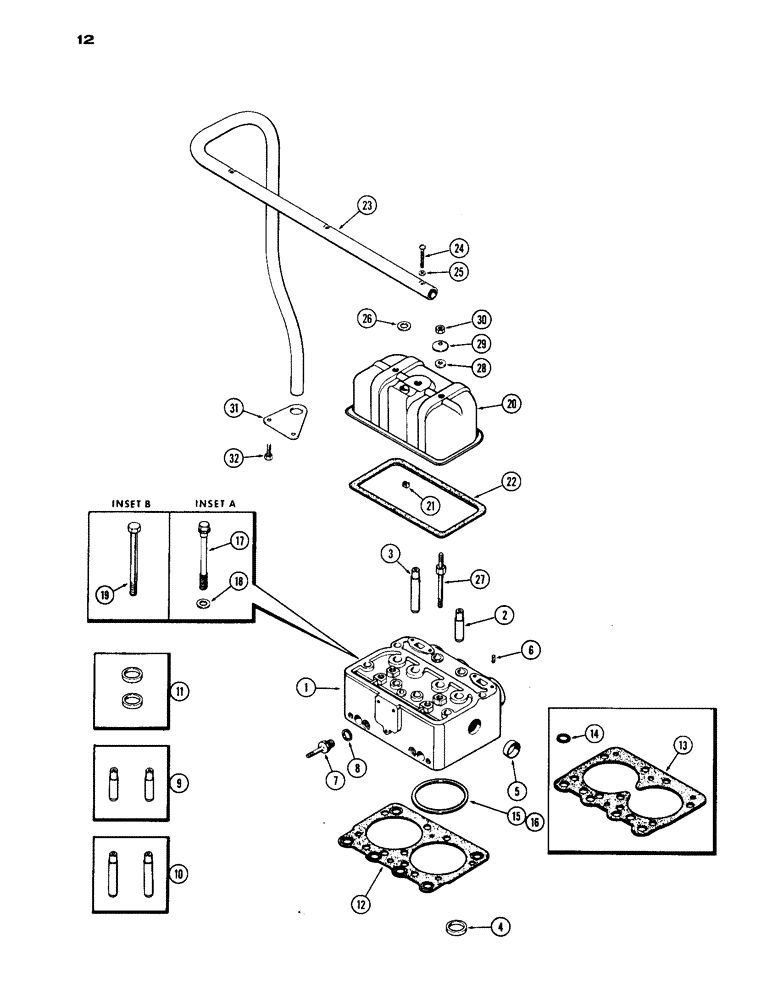

Запчасти Case IH 1030 (012) - CYLINDER HEAD AND COVER (02) - ENGINE

1

A33644

X

HEAD ASSY. - cylinder (Casting No. A33616), Includes Ref: 2 - 8

3шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 9)

2шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 10)

2шт.

4

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 11)

2шт.

5

A34124

PLUG,Cup, 1 5/8", Stainless

- (1-41/64" cup type)

2шт.

6

A11810

PIN,3.19mm OD x 6.99mm L

- powrcel body (1/8 x 17/64")

2шт.

7

A10678

STUD

- nozzle holder

2шт.

8

A10679

GASKET

- stud (23/32 x 29/32 x 1/32" copper)

2шт.

9

A21674

GUIDE

KIT - exhaust valve (Set of 2)(3-7/32" long)

3шт.

10

A21671

GUIDE

KIT - intake valve (Set of 2)(4-3/8" long)

3шт.

11

A57485

INSERT

KIT - exhaust valve seat (Set of 2)(Replaces A21683)

3шт.

12

A57593

GASKET

- cylinder head w/grommets (replaces A41385)

3шт.

13

NS

NOT SERVICED

GASKET - cyl. head (Order A57593)

3шт.

14

NS

NOT SERVICED

RING - cyl. head gasket (13/16 x 1-1/16 x .008" fiber) (used w/item 13 only)(Order A57593)

12шт.

15

A34686

RING

- fire, cyl. head (std.)(See item 16)

6шт.

16

A34688

RING

- fire, cyl. head (oversize w/blue stripe)

6шт.

17

A57482

STEP BOLT

BOLT - cyl. head (9/16 x 6-1/4" N.C. hex.)(See inset A)

27шт.

18

A27870

WASHER

- (19/32 x 15/16 x 11 Ga.)(used w/A57482 bolt)

27шт.

19

A23355

BOLT

- cyl. head (9/16 x 6" N.C. hex.)(See inset B)

27шт.

20

A23681

COVER ASSY

. - cylinder head, Includes Ref: 21

3шт.

21

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube (1/4" N.C. cage)

1шт.

22

A57595

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A27972)

3шт.

23

A24184

TUBE

- breather

1шт.

24

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- breather tube (1/4" x 2-1/4" N.C., rd. hd.)

3шт.

25

A34133

GASKET

- tube, upper (9/32 x 1/2 x 3/64" fiber)

3шт.

26

A23685

GASKET

- tube, lower (11/6 x 1-1/16 x 1/16" rubber)

3шт.

27

A57990

STUD

- rocker arm brckt. & cyl. head cover (7/16" N.C. x 1-1/2" top of stud to nut)(Replaces A57458)

6шт.

27

A57458

STUD

- rocker arm brkt. & cyl. head cover (7/16" N.F. x 1-1/2" top of stud to nut)(Replaces A28124) (Order A57990 stud & 25-107 nut when stock is depleted)

6шт.

28

A23684

GASKET

GASKET - stud (15/32 x 7/8 x 1/8" rubber)

6шт.

29

A23683

WASHER

- cover stud (15/32 x 1-25/64 x 1/16" dished)

6шт.

30

25-117

NUT,7/16"-20, G5

- cover retaining (7/16" N.F. hex.)(used w/A57458 stud)

6шт.

30

25-107

NUT,7/16"-14, G5

- (7/16" N.C. hex.)(uesd w/A57990 stud)

6шт.

31

A23686

BRACKET

- breather tube

1шт.

32

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - bracket (3/8 x 1-1/2" N.C. hex. sems)

2шт.
