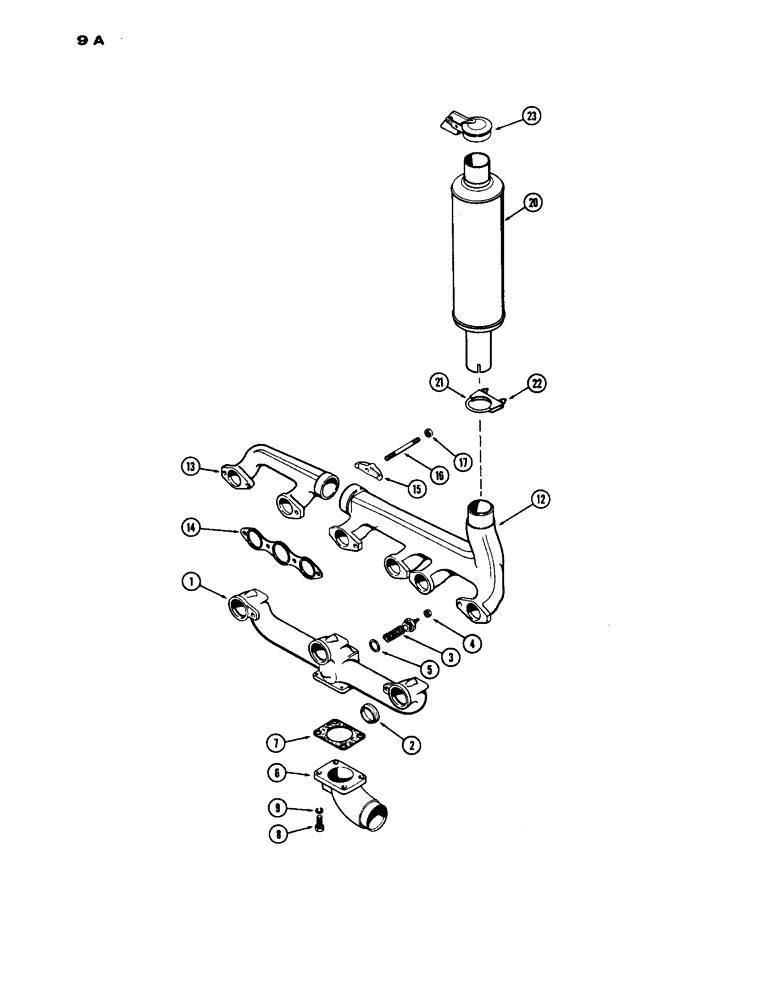

Запчасти Case IH 1030 (009A) - MANIFOLD AND MUFFLER (02) - ENGINE

1

A20700

MANIFOLD - intake

1шт.

2

A21053

BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L

FERRULE - intake manifold

3шт.

3

A37775

HEATER

ASSY. - manifold, Includes Ref: 4

1шт.

4

129-503

NUT,1/4"-20, Brass

Terminal 1/4"-20, Brass

1шт.

5

A20916

MANIFOLD GASKET

GASKET - heater (1-3/32 x 1-3/8 x 1/32" copper)

1шт.

6

A34544

ELBOW - air intake

1шт.

7

A20678

GASKET

- air intake elbow

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Elbow Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

12

A24714

MANIFOLD

- exhaust, front

1шт.

13

A24715

MANIFOLD

- exhaust, rear

1шт.

14

A34875

GASKET,2.2mm Thk

-, Serial Range: manifolds-head

3шт.

15

A24368

CLAMP

- manifold

6шт.

16

A27911

STUD

- clamp (7/16" N.C./N.F. x 6")

6шт.

17

25-117

NUT,7/16"-20, G5

- (7/16" N.F. hex.)

6шт.

20

A24103

MUFFLER

1шт.

21

A27115

CLAMP

ASSY. - muffler, Includes Ref: 22

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

23

A33743

CAP

ASSY. - weather

1шт.
