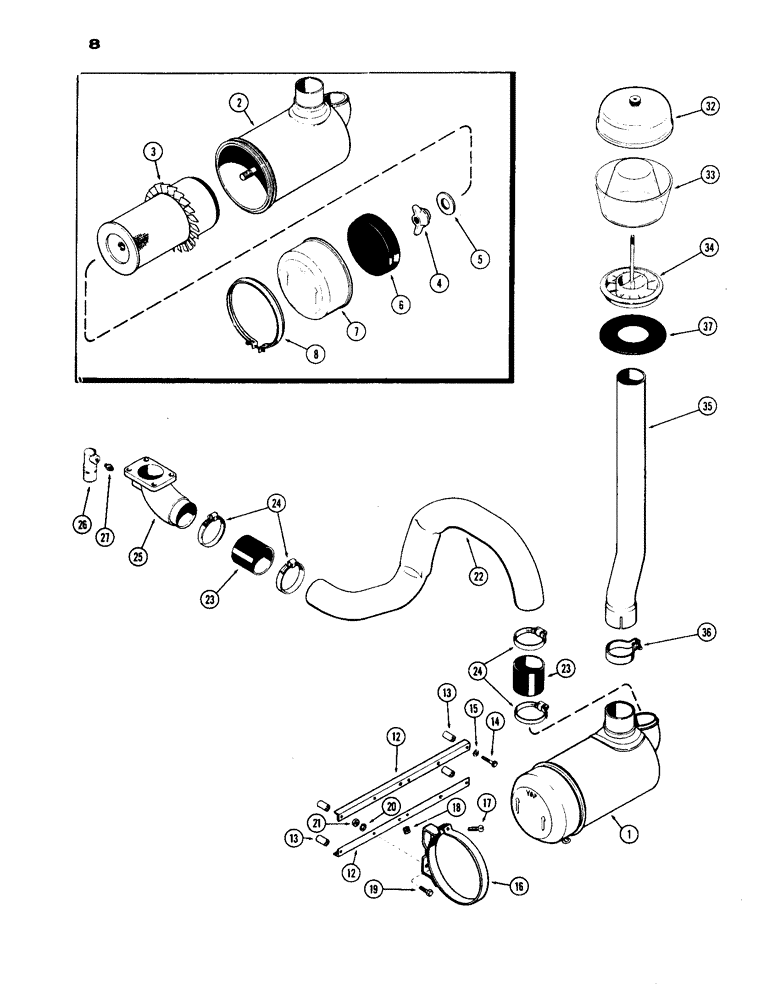

Запчасти Case IH 1030 (008) - AIR CLEANER AND PRE-CLEANER (02) - ENGINE

1

A34545

CLEANER ASSY. - air, Includes Ref: 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order A34545)

1шт.

3

A40866

AIR FILTER

ELEMENT ASSY. - w/gasket

1шт.

F91761

WING NUT

ASSY. - w/gasket, Includes Ref: 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - element retaining

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER ASSY. - w/gasket

1шт.

6

D37979

BAFFLE

- air cleaner (rubber)

1шт.

7

A40951

CUP

- air cleaner

1шт.

8

R15731

CLAMP

ASSY. - cup retaining

1шт.

12

A60018

SUPPORT

- air cleaner (w/6 holes) (1-1/4" x 1-1/4" angle)(1st used trac. ser. no. 8361760)

2шт.

12

A34994

X

SUPPORT - air cleaner, upper (1-1/4" x 1-1/4" angle) (used trac. ser. no. 8305149 to 8361760)(w/4 holes) (Order A60018)

1шт.

12

A34995

X

SUPPORT - air cleaner, lower (1-1/4" x 1-1/4" angle) (Used trac. ser. no. 8305149 to 8361760)(w/4 holes) (Order A60018)

1шт.

12

A34561

SUPPORT

- air cleaner, upper & lower (3/4" x 1" angle) (Used prior to trac. ser. no. 8305149)(w/4 holes)

2шт.

13

A34996

SPACER - support (23/64 x 35/64 x 7/8") (1st used trac. ser. no. 8305149)

4шт.

13

A34562

SPACER - support (23/64 x 35/64 x 1-3/8") (Used prior to trac. ser. no. 8305149)

4шт.

14

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- (5/16 x 1-3/4" N.C. hex.)(Used w/A34994, A34955 and A60018)

4шт.

14

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

(Used w/A34561 supt.) Hex, 5/16"-18 x 2 1/4", G5

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

A23807

BAND - air cleaner

2шт.

17

75-424

SCREW

- band clamping (1/4 x 1-1/2" N.C. rd. hd.)

2шт.

18

25-224

SQUARE NUT,Sq, 1/4"-20

- (1/4" N.C. sq.)

2шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Band Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

22

A34547

TUBE - air, Serial Range: cleaner-manifold

1шт.

23

A23802

HOSE

- air cleaner tube

2шт.

24

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose (2-13/16" to 3-3/4")

4шт.

25

A34544

ELBOW - air intake

1шт.

26

A34445

GAUGE

INDICATOR - air cleaner restriction (red color decal)

1шт.

27

D36264

FITTING

ADAPTER - air indicator (Replaces L10234)

1шт.

A24391

AIR CLEANER

PRE-CLEANER ASSY., Includes Ref: 32 - 34

1шт.

32

73187

COVER

ASSY. - pre-cleaner

1шт.

33

365413R1

BOWL

BODY - pre-cleaner (clear plastic)

1шт.

34

NSS

NOT SOLD SEPARAT

BASE ASSY. - pre-cleaner

1шт.

35

A34546

NUT

EXTENSION - air stack

1шт.

36

A34789

CLAMP

- extension

1шт.

37

A24390

SHIELD

- dust

1шт.
