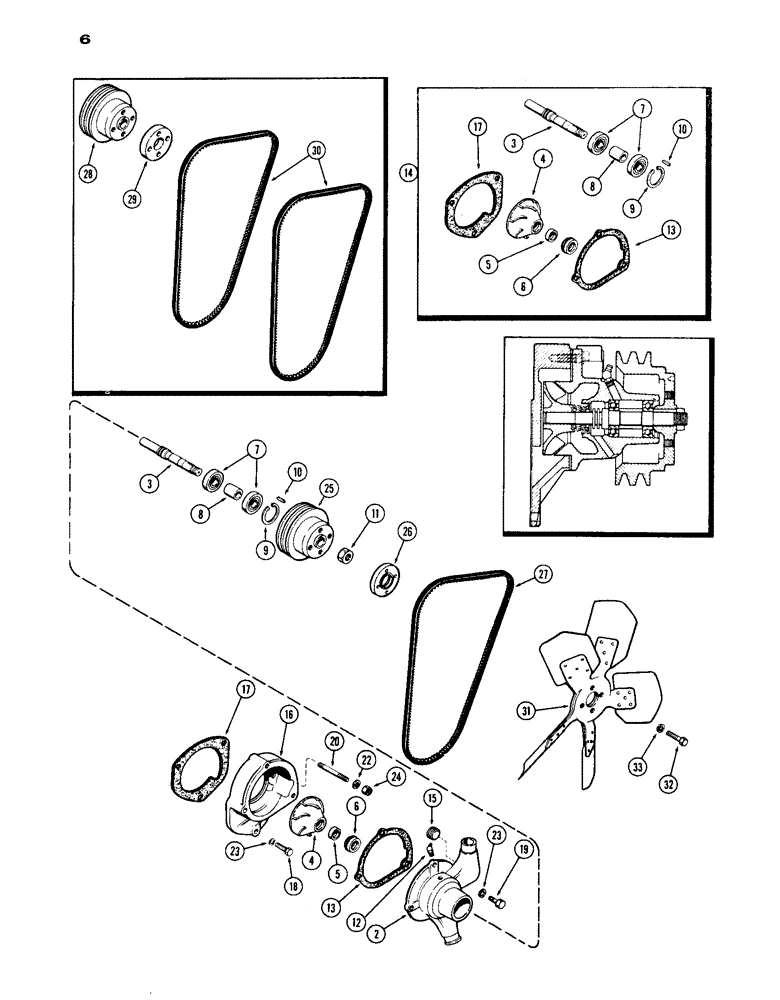

Запчасти Case IH 1030 (006) - WATER PUMP AND ATTACHING PARTS (02) - ENGINE

A34009

PUMP

ASSY. - water (not illust.), Includes Ref: 2 - 13

1шт.

2

A33998

BODY - water pump

1шт.

3

A21044

SHAFT

- water pump & fan

1шт.

Part of P/N A40744 Water Pump Repair Kit

1шт.

4

A33999

IMPELLER

- water pump

1шт.

Part of P/N A40744 Water Pump Repair Kit

1шт.

5

A34000

SEAL

SEAT - impeller

1шт.

Part of P/N A40744 Water Pump Repair Kit

1шт.

6

A24995

SEAL

ASSY. - water

1шт.

Part of P/N A40744 Water Pump Repair Kit

1шт.

7

A21045

BALL BEARING,19.99mm ID x 47mm OD x 14mm W

BEARING - ball, pump shaft

2шт.

Part of P/N A40744 Water Pump Repair Kit

1шт.

8

A24600

SPACER

- bearing (51/64 x 1 x 1-13/64")

1шт.

Part of P/N A40744 Water Pump Repair Kit

1шт.

9

A22572

SNAP RING,1.85", Int, #185

Ring, Snap, , brg 1.85", Int, #185

1шт.

Part of P/N A40744 Water Pump Repair Kit

1шт.

10

A21075

KEY

- pulley (3/16" sq. x 5/8")

1шт.

Part of P/N A40744 Water Pump Repair Kit

1шт.

11

131-580

LOCK NUT,5/8"-18

NUT - pulley ret. (5/8" N.F. flexloc)

1шт.

12

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 67-1/2deg.)

1шт.

13

A22600

GASKET

- water, Serial Range: pump-adapter

1шт.

Part of P/N A40744 Water Pump Repair Kit

1шт.

14

A40744

KIT

REPAIR KIT water pump

1шт.

15

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - body (3/4" P.T., sckt. hd.)

1шт.

16

A34441

ADAPTER

- water pump

1шт.

17

A57596

GASKET

- adapter to cyl. block (Replaces A27899)

1шт.

Part of P/N A40744 Water Pump Repair Kit

1шт.

18

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Adapter Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

18

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Adapter Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Pump Hex, 3/8"-16 x 2", G5

1шт.

20

A33997

STUD

- pump & adapter (3/8" N.C. x 3-9/16")

1шт.

22

A22317

WASHER

- adapter (25/64 x 9/16 x 18 GA. copper)

1шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

25

A57118

PULLEY

- water pump (For 11/16" belt) (1st used trac. ser. no. 8310335)

1шт.

26

A57122

SPACER - fan (7/16" wide) (1st used trac. ser. no. 8310335)

1шт.

27

A57123

BELT,52.94" L

First Used Tractor Serial No. 8310335 52.94" L

1шт.

28

A34439

PULLEY - water pump (For 1/2" belts) (used prior to trac. ser. no. 8310335)

1шт.

29

A15608

SPACER - fan (7/8" wide) (used prior to trac. ser. no. 8310335)

1шт.

30

A18426

SET OF BELTS,53.00" L

SET OF 2 BELTS , Fan & gen. (Used prior to trac. ser. no. 8310335) 53.00" L

1шт.

31

A34440

FAN

- radiator (5 blade)(standard)

1шт.

31

A60044

FAN

- radiator (6 blade)(heavy duty)

1шт.

32

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- (3/8 x 1-3/8" N.C. hex.)(used w/A57122 spacer)

4шт.

32

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

(Used w/A15608 spacer) Hex, 3/8"-16 x 1 5/8", G5

4шт.

33

92-6

LOCK WASHER,3/8"

4шт.
